XT96 and XTender96 Thermal Cyclers

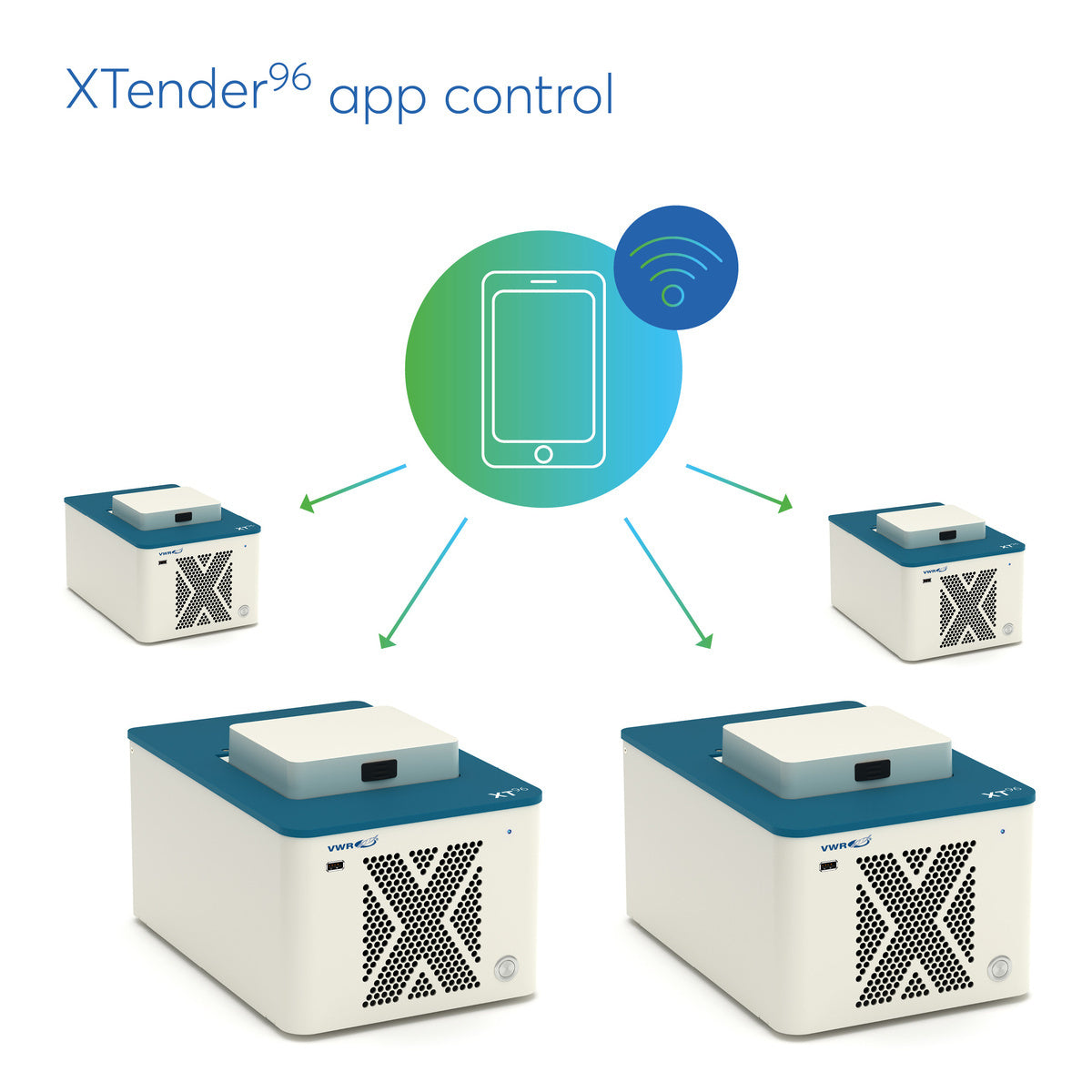

The XT family of VWR® PCR thermal cyclers combine industry- and customer-inspired innovation housed in a robust, low noise design that fits on virtually any bench top. The fast ramping 96-well block is accurately controlled by eight Peltier elements ensuring reproducible PCR results and offering a gradient PCR option. Making use of advanced technology, XT cyclers can be connected via Ethernet and controlled remotely by a primary XT⁹⁶ cycler, a PC or a mobile device (smartphone/tablet). The software/App needed comes free and provides the same intuitive user interface as the touch-sensitive, sharp 7" TFT display that the XT⁹⁶ cycler is equipped with. When used as part of a remote control configuration, the XTender⁹⁶ makes a perfect secondary unit, having no built-in display, but reduced to its core function of providing excellent PCR results, while saving costs and valuable resources. Other innovative features:

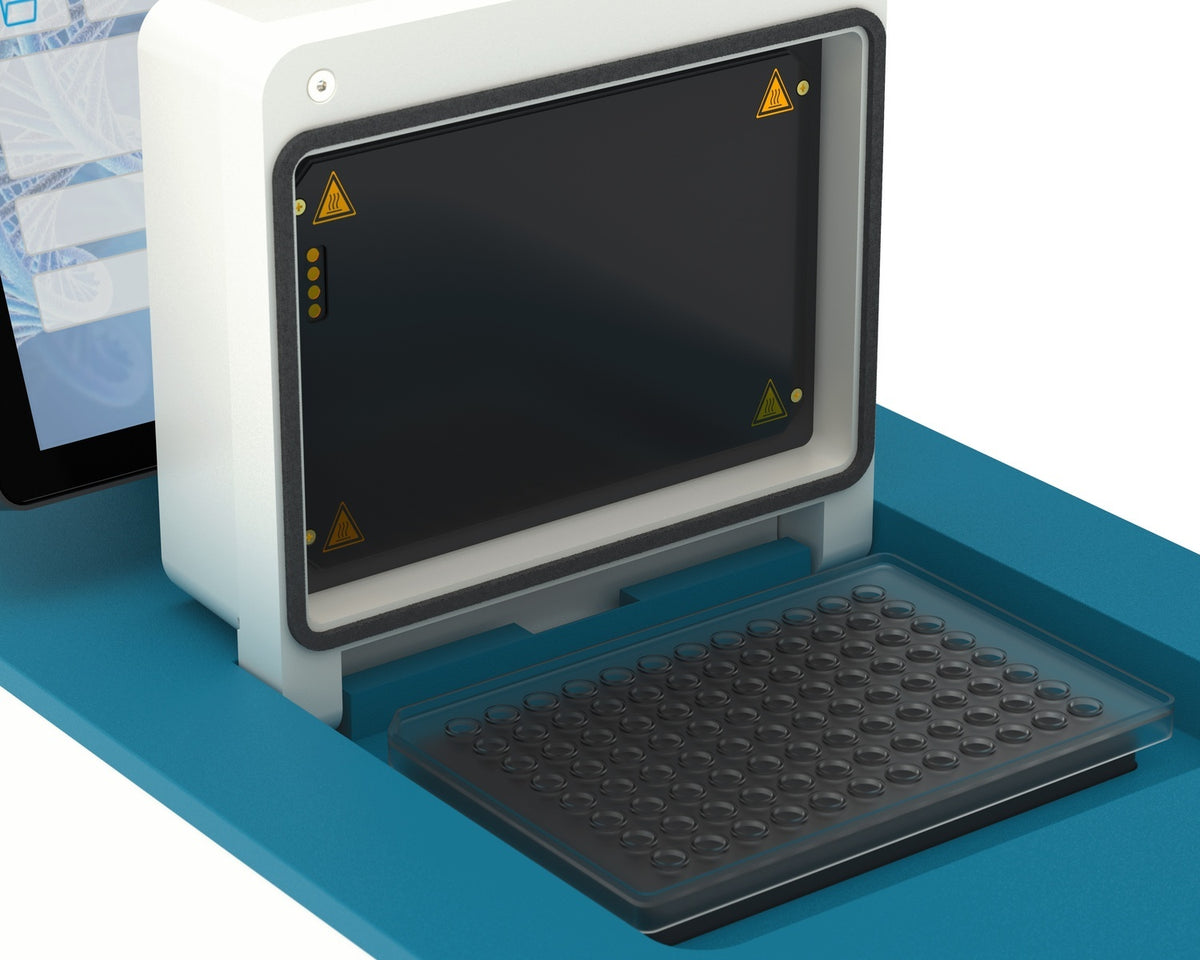

• Flexible lid: Heated lid automatically adjusts to fit every PCR tube, creating pressure that prevents sample evaporation, to ensure reproducible results in every run
• Innovative block design with reduced mass allows highest temperature uniformity, and heating and cooling rates of up to max. 4 °C/s
• Precise temperature control for shortest run times, without over- and under-shoots, for best PCR results
• Gradient function (optional): Eight advanced control circuits and Peltier elements, providing an almost linear gradient – ideal for PCR optimisation

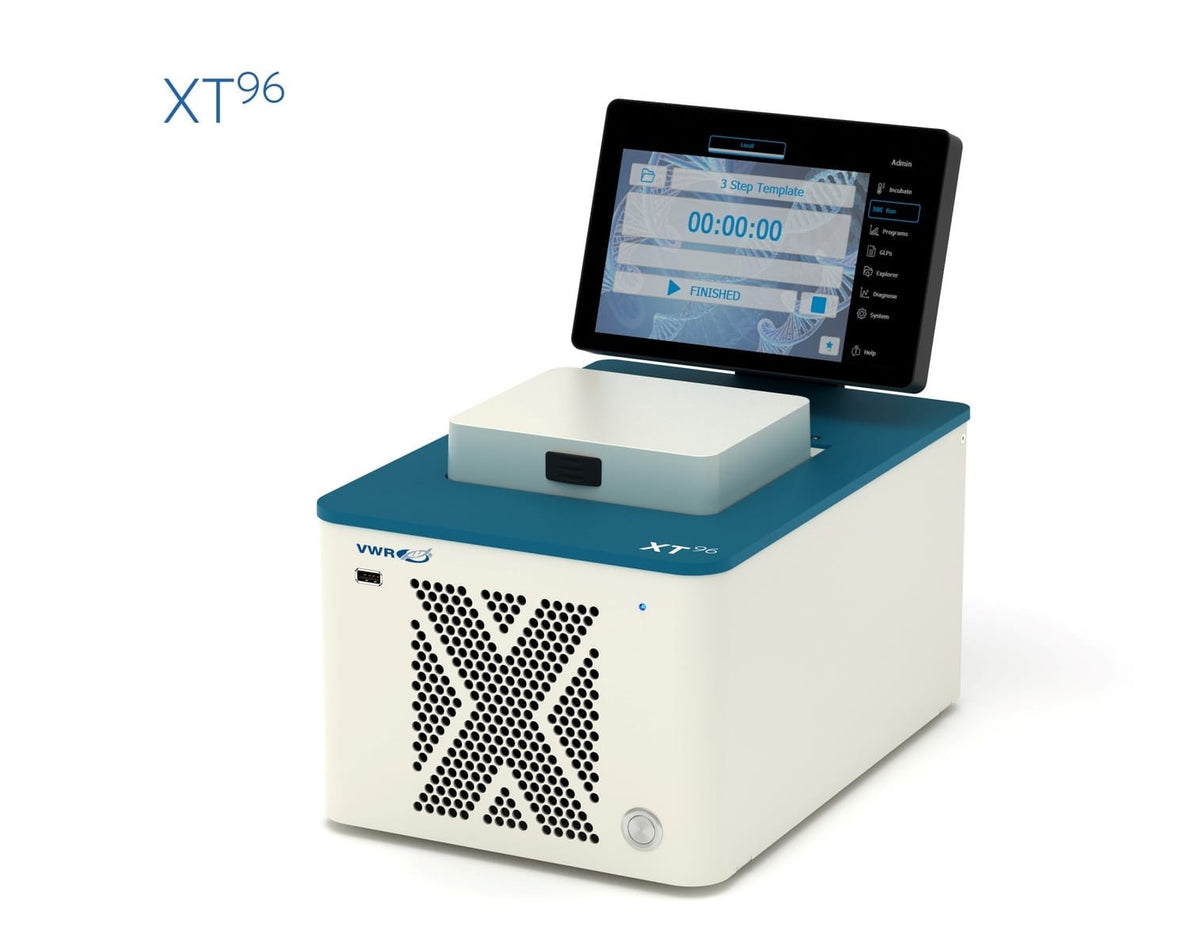

• Sharp, clear 7" TFT display, combined with intuitive software, simplifies use and suits all user expectations
• Intuitive programming: PCR-Wizard for convenient three-step, two-step, and gradient PCR programming
• Quick set-up: Select one of the 'Recently used methods' to accelerate your PCR run
• Data control: Up to 2× USB, 1× Ethernet (MS Windows®, Linux), remote control and monitoring of instruments via PC software, MP3 signal tones, and primary/secondary control
• System tools at the touch of a button: Graphical or tabular programming, 'Global Program Ramp', 'Tube Control', online help, 'Quick Start' function and 'Power Fail Denaturation' for auto-restart after power failure
• XTender⁹⁶ is a fully equipped PCR thermal cycler without a touch screen, the ideal device controlled by a PC or from another XT⁹⁶ thermal cycler

Manufactured in Germany according to ISO 9001, calibrated and maintained according to NIST standards, and backed by 30 years of cycler technology expertise and experience.

Delivery: All XT thermal cyclers include simple to use PC software for remote control and monitoring of instruments, as well as for creating PCR protocols on a PC.

Specifications

• Block homogeneity: ±0,35 °C at 72 °C
• Cooling: 8 Peltier elements per block, with long-life technology, and 8 control circuits with PT1000 temperature sensors
• Cooling ramp rate: Max. 4 °C/s
• Heating ramp rate: Max. 4 °C/s
• Lid: Automatic height adjustment
• Lid temperature range: +40...110 °C
• No. of programs: 500000
• Sample capacity: 96×0,2 ml tubes or 96-well PCR plates (non- or semi-skirted only); Sample volume range per well 10 – 100 µl (20 - 50 µl recommended)
• Temperature range: +4...105 °C

Documents

• Manual Software update VWR PCR Thermal cycler XT96 and XTender96 (Manual)
• Quick Start Manual VWR® PCR Thermal Cycler XTender96 (Manual)
• Manual VWR PCR Thermal Cyclers, XT⁹⁶ XTender⁹⁶ (Manual)
• Best Gradient with VWR PCR cycler Establishing PCRs Successfully (Brochure)
• Avantor VWR®PCR Solutions (Brochure)
