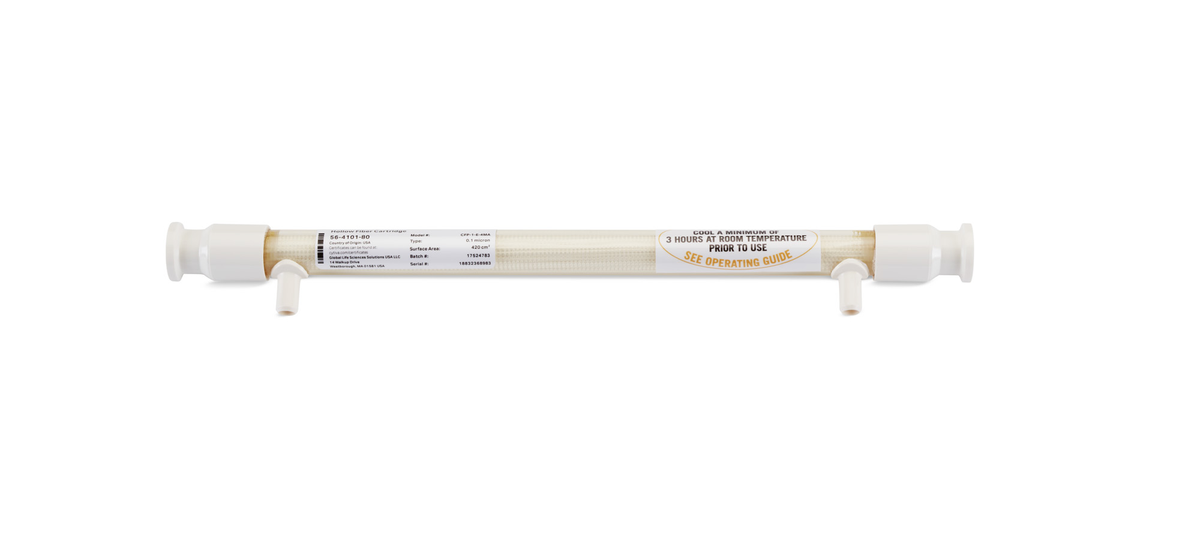

Xampler™ microfiltration hollow fiber tangential flow cartridges

Vendor: Cytiva

SKU: CFP-1-D-3MA

0.00 NIS

Quote Required

In stock

Xampler™ m icrofiltration hollow fiber tangential flow filtration (TFF) cartridges are for laboratory-scale processing, featuring a polysulfone membrane in a range of pore sizes.

Low flow rate requirements allow the use of smaller pumps.
Polysulfone membrane minimizes nonspecific protein binding and provides high product recovery.
Membrane areas from 110 to 1400 cm² (17 to 216 inch²) to suit specific processing needs.
Offered with tri-clamp end fittings for quick and easy aseptic connection.
Autoclavable devices address the need for small-volume sanitary processing.

Laboratory-scale and beyond

Xampler ultrafiltration and microfiltration cartridges are designed for laboratory-scale processing, with typical volumes ranging from a few hundred milliliters to about 5 liters of solution.

Xampler cartridges have nominal flow path lengths of 30 and 60 cm and membrane areas ranging from 0.01 to 0.14 m² (17 to 216 inch²). Moreover, they are directly scalable to pilot- and process-scale cartridges with equivalent path lengths.

Compatible with QuixStand Benchtop System

Xampler cartridges have self-contained housings that are well matched to the QuixStand Benchtop System. When operated in a vertical orientation complete process fluid drainage and maximum product recovery is achieved.

Documents

Specifications

Sub category Tangential flow filtration

links and documants

Datasheet url Click here
Ifu url Click here
Source url Click here

Xampler™ microfiltration hollow fiber tangential flow cartridges CFP-4-E-3X2MA - Bioprocess filtration - Cytiva

Xampler™ microfiltration hollow fiber tangential flow cartridges

0.00 NIS

Quick order list

Your cart
Variant	Cartridge Length	Fiber i.d.	Membrane Area & Pore size	Quantity	Availability	Price	Variant total
31.7 cm (12.5 in) / 0.75 mm / 120 cm<sup>2</sup> (0.13 ft<sup>2</sup>), 0.1 µmCFP-1-D-3MA Quote Required Stock on request Remove Quantity Remove Quote Required	31.7 cm (12.5 in)	0.75 mm	120 cm² (0.13 ft²), 0.1 µm	Quantity Remove	Stock on request	Quote Required	Quote Required
31.7 cm (12.5 in) / 0.75 mm / 120 cm<sup>2</sup> (0.13 ft<sup>2</sup>), 0.65 µmCFP-6-D-3MA Quote Required Stock on request Remove Quantity Remove Quote Required	31.7 cm (12.5 in)	0.75 mm	120 cm² (0.13 ft²), 0.65 µm	Quantity Remove	Stock on request	Quote Required	Quote Required
31.7 cm (12.5 in) / 1 mm / 110 cm<sup>2</sup> (0.12 ft<sup>2</sup>), 0.1 µmCFP-1-E-3MA Quote Required Stock on request Remove Quantity Remove Quote Required	31.7 cm (12.5 in)	1 mm	110 cm² (0.12 ft²), 0.1 µm	Quantity Remove	Stock on request	Quote Required	Quote Required
31.7 cm (12.5 in) / 1 mm / 110 cm<sup>2</sup> (0.12 ft<sup>2</sup>), 0.2 µmCFP-2-E-3MA Quote Required Stock on request Remove Quantity Remove Quote Required	31.7 cm (12.5 in)	1 mm	110 cm² (0.12 ft²), 0.2 µm	Quantity Remove	Stock on request	Quote Required	Quote Required
31.7 cm (12.5 in) / 1 mm / 110 cm<sup>2</sup> (0.12 ft<sup>2</sup>), 0.45 µmCFP-4-E-3MA Quote Required Stock on request Remove Quantity Remove Quote Required	31.7 cm (12.5 in)	1 mm	110 cm² (0.12 ft²), 0.45 µm	Quantity Remove	Stock on request	Quote Required	Quote Required
34.5 cm (13.6 in) / 0.75 mm / 460 cm<sup>2</sup> (0.5 ft<sup>2</sup>), 0.1 µmCFP-1-D-4MA Quote Required Stock on request Remove Quantity Remove Quote Required	34.5 cm (13.6 in)	0.75 mm	460 cm² (0.5 ft²), 0.1 µm	Quantity Remove	Stock on request	Quote Required	Quote Required
34.5 cm (13.6 in) / 0.75 mm / 460 cm<sup>2</sup> (0.50 ft<sup>2</sup>), 0.65 µmCFP-6-D-4MA Quote Required Stock on request Remove Quantity Remove Quote Required	34.5 cm (13.6 in)	0.75 mm	460 cm² (0.50 ft²), 0.65 µm	Quantity Remove	Stock on request	Quote Required	Quote Required
34.5 cm (13.6 in) / 1 mm / 420 cm<sup>2</sup> (0.45 ft<sup>2</sup>), 0.1 µmCFP-1-E-4MA Quote Required Stock on request Remove Quantity Remove Quote Required	34.5 cm (13.6 in)	1 mm	420 cm² (0.45 ft²), 0.1 µm	Quantity Remove	Stock on request	Quote Required	Quote Required
34.5 cm (13.6 in) / 1 mm / 420 cm<sup>2</sup> (0.45 ft<sup>2</sup>), 0.2 µmCFP-2-E-4MA Quote Required Stock on request Remove Quantity Remove Quote Required	34.5 cm (13.6 in)	1 mm	420 cm² (0.45 ft²), 0.2 µm	Quantity Remove	Stock on request	Quote Required	Quote Required
34.5 cm (13.6 in) / 1 mm / 420 cm<sup>2</sup> (0.45 ft<sup>2</sup>), 0.45 µmCFP-4-E-4MA Quote Required Stock on request Remove Quantity Remove Quote Required	34.5 cm (13.6 in)	1 mm	420 cm² (0.45 ft²), 0.45 µm	Quantity Remove	Stock on request	Quote Required	Quote Required
36.2 cm (14.25 in) / 0.75 mm / 460 cm<sup>2</sup> (0.5 ft<sup>2</sup>), 0.1 µmCFP-1-D-4A Quote Required Stock on request Remove Quantity Remove Quote Required	36.2 cm (14.25 in)	0.75 mm	460 cm² (0.5 ft²), 0.1 µm	Quantity Remove	Stock on request	Quote Required	Quote Required
36.2 cm (14.25 in) / 0.75 mm / 460 cm<sup>2</sup> (0.5 ft<sup>2</sup>), 0.65 µmCFP-6-D-4A Quote Required Stock on request Remove Quantity Remove Quote Required	36.2 cm (14.25 in)	0.75 mm	460 cm² (0.5 ft²), 0.65 µm	Quantity Remove	Stock on request	Quote Required	Quote Required
36.2 cm (14.25 in) / 1 mm / 420 cm<sup>2</sup> (0.45 ft<sup>2</sup>), 0.1 µmCFP-1-E-4A Quote Required Stock on request Remove Quantity Remove Quote Required	36.2 cm (14.25 in)	1 mm	420 cm² (0.45 ft²), 0.1 µm	Quantity Remove	Stock on request	Quote Required	Quote Required
36.2 cm (14.25 in) / 1 mm / 420 cm<sup>2</sup> (0.45 ft<sup>2</sup>), 0.2 µmCFP-2-E-4A Quote Required Stock on request Remove Quantity Remove Quote Required	36.2 cm (14.25 in)	1 mm	420 cm² (0.45 ft²), 0.2 µm	Quantity Remove	Stock on request	Quote Required	Quote Required
36.2 cm (14.25 in) / 1 mm / 420 cm<sup>2</sup> (0.45 ft<sup>2</sup>), 0.45 µmCFP-4-E-4A Quote Required Stock on request Remove Quantity Remove Quote Required	36.2 cm (14.25 in)	1 mm	420 cm² (0.45 ft²), 0.45 µm	Quantity Remove	Stock on request	Quote Required	Quote Required
63.5 cm (25 in) / 1 mm / 230 cm<sup>2</sup> (0.24 ft<sup>2</sup>), 0.1 µmCFP-1-E-3X2MA Quote Required Stock on request Remove Quantity Remove Quote Required	63.5 cm (25 in)	1 mm	230 cm² (0.24 ft²), 0.1 µm	Quantity Remove	Stock on request	Quote Required	Quote Required
63.5 cm (25 in) / 1 mm / 230 cm<sup>2</sup> (0.24 ft<sup>2</sup>), 0.2 µmCFP-2-E-3X2MA Quote Required Stock on request Remove Quantity Remove Quote Required	63.5 cm (25 in)	1 mm	230 cm² (0.24 ft²), 0.2 µm	Quantity Remove	Stock on request	Quote Required	Quote Required
63.5 cm (25 in) / 1 mm / 230 cm<sup>2</sup> (0.24 ft<sup>2</sup>), 0.45 µmCFP-4-E-3X2MA Quote Required Stock on request Remove Quantity Remove Quote Required	63.5 cm (25 in)	1 mm	230 cm² (0.24 ft²), 0.45 µm	Quantity Remove	Stock on request	Quote Required	Quote Required
66 cm (26 in) / 0.75 mm / 950 cm<sup>2</sup> (1.02 ft<sup>2</sup>), 0.1 µmCFP-1-D-4X2MA Quote Required Stock on request Remove Quantity Remove Quote Required	66 cm (26 in)	0.75 mm	950 cm² (1.02 ft²), 0.1 µm	Quantity Remove	Stock on request	Quote Required	Quote Required
66 cm (26 in) / 0.75 mm / 950 cm<sup>2</sup> (1.02 ft<sup>2</sup>), 0.65 µmCFP-6-D-4X2MA Quote Required Stock on request Remove Quantity Remove Quote Required	66 cm (26 in)	0.75 mm	950 cm² (1.02 ft²), 0.65 µm	Quantity Remove	Stock on request	Quote Required	Quote Required
66 cm (26 in) / 1 mm / 850 cm<sup>2</sup> (0.9 ft<sup>2</sup>), 0.1 µmCFP-1-E-4X2MA Quote Required Stock on request Remove Quantity Remove Quote Required	66 cm (26 in)	1 mm	850 cm² (0.9 ft²), 0.1 µm	Quantity Remove	Stock on request	Quote Required	Quote Required
66 cm (26 in) / 1 mm / 850 cm<sup>2</sup> (0.9 ft<sup>2</sup>), 0.2 µmCFP-2-E-4X2MA Quote Required Stock on request Remove Quantity Remove Quote Required	66 cm (26 in)	1 mm	850 cm² (0.9 ft²), 0.2 µm	Quantity Remove	Stock on request	Quote Required	Quote Required
66 cm (26 in) / 1 mm / 850 cm<sup>2</sup> (0.9 ft<sup>2</sup>), 0.45 µmCFP-4-E-4X2MA Quote Required Stock on request Remove Quantity Remove Quote Required	66 cm (26 in)	1 mm	850 cm² (0.9 ft²), 0.45 µm	Quantity Remove	Stock on request	Quote Required	Quote Required
