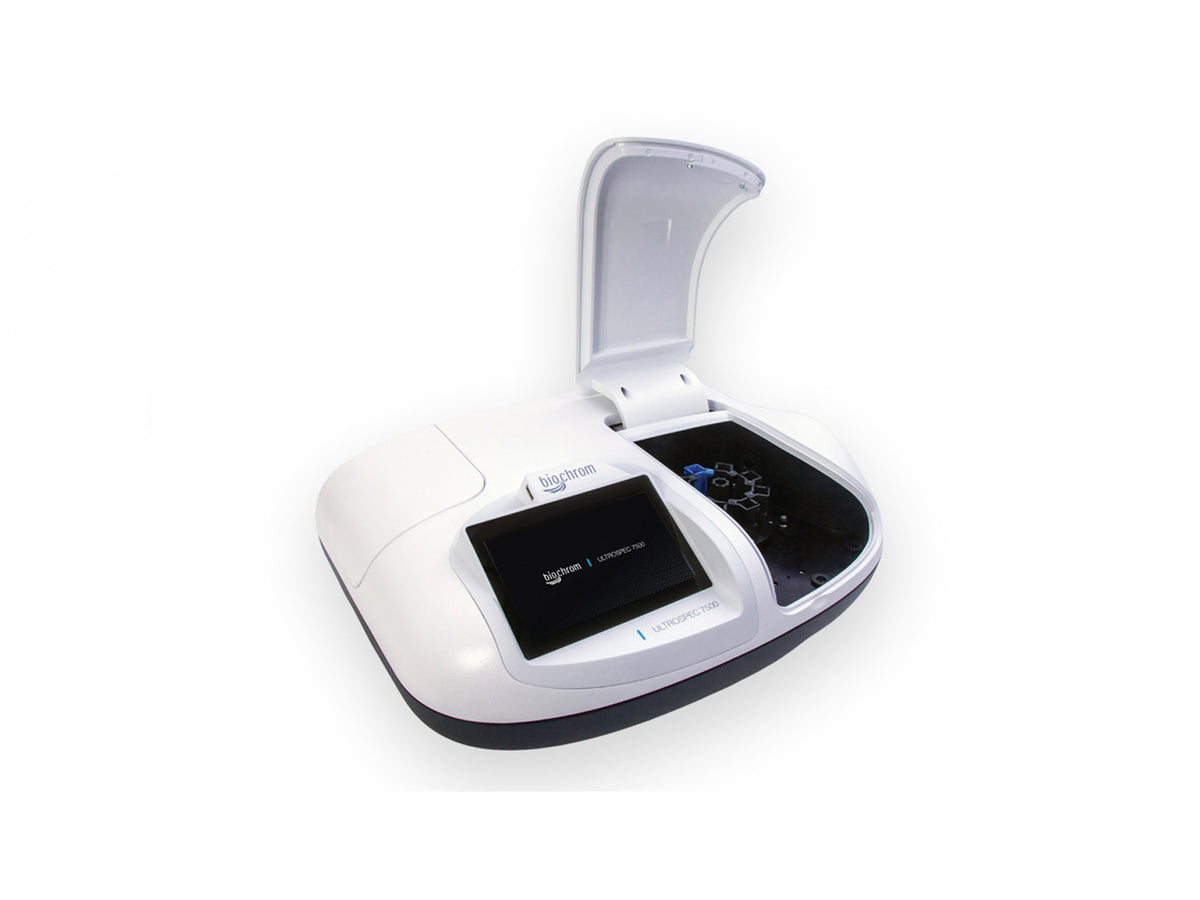

Ultrospec 7500 UV-Vis Spectrophotometer

Name: Ultrospec 7500 UV-Vis Spectrophotometer
Brand: Biochrom
SKU: 80-2140-60
Availability: InStock

Vendor: Biochrom

SKU: 80-2140-60

0.00 NIS

Quote Required

In stock

Energy-efficient touchscreen display.

The system includes an intuitive, easy-to-use, 800×480-pixel backlit color LCD display with touch panel navigation of the instrument’s built-in firmware. When the display is off, the only power consumed is by the touch screen controller. The instrument exits sleep mode with a touch of the screen. Easier on you, and easier on the planet.

Dependable and built to last.

There’s a reason Biochrom is one of the world’s leading spectrophotometry brands: some of our customers have been using the same machine for over 20 years. No planned obsolescence here. Our level of quality, dependability, and customer service is completely unmatched.

IQ/OQ/PQ compliance available

If your lab requires IQ (Installation Qualification), OQ (Operation Qualification), or PQ (Performance Qualification) compliance, your Ultrospec 7500 can be customized to meet your needs. Contact us to learn more.

21 CFR Part 11-compliant software is also available.

All the accessories (and flexibility) you need.

Looking for one spectrophotometer that does it all? If your lab has unique needs, the optional accessories can help you customize your Ultrospec 7500 to suit them.

Printers
Sippers
Heating
Various cell accessories
And more.

Specifications

Wavelength Range: 190 to 1100 nm
Monochromator: 1200 lines/mm Aberration corrected concave grating
Wavelength Calibration: Automatic upon switch on
Beam Height: 15 mm
Spectral Bandwidth: <2 nm
Wavelength Accuracy: ±1 nm
Wavelength Reproducibility: ±0.5 nm
Light Sources: Xenon flash lamp
Detector: Two silicon photodiodes
Photometric Range: -3.000 to 3.000 A, 0.1 to 100000 %T
Photometric Accuracy: ±0.5 % or ±0.003 A whichever is greater at 546 nm
Photometric Reproducibility: ±0.5 % to 3.000 A at 546 nm
Stray Light: <0.05 %T at 220 nm using NaI or at 340 nm using NaNO2 , <0.10 %T at 380 using NaNO2 ±0.01 A/h at 340 nm
Stability: ±0.001 A/h at 340 nm for 0 A
Noise: ±0.002 peak to peak ± 0.0005 RMS at 340 nm for 0 A
Digital Output: USB Flash Drive, PC via PVC software, Optional Bluetooth
Data Export: USB Flash Drive: .tsv, native PVC format
Method Storage: 156 with PIN number protection
Graphical Display: Yes, zoom and track function
Sample ID: Yes
Languages: English, German, French, Spanish, Italian, Japanese, Chinese
Dimensions: 510 × 350 × 160 mm
Weight: 13.00 kg
Power Input: 19 VDC at max 90 VA from a supplied 100 to 240 V~, 50/60 Hz Mains Power Adapter

Documents

Ordering Information

Catalogue No.	Configuration	Description
80-2140-60	Ultrospec 7500 UV-Vis Spectrophotometer	ULTROSPEC 7500

Specifications

Data export USB Flash Drive: .tsv, native PVC format
Detector Two silicon photodiodes
Dimensions 510 × 350 × 160 mm
Method storage 156 with PIN number protection
Noise ±0.002 peak to peak ± 0.0005 RMS at 340 nm for 0 A
Photometric accuracy ±0.5 % or ±0.003 A whichever is greater at 546 nm
Photometric range -3.000 to 3.000 A, 0.1 to 100000 %T
Spectral bandwidth <2 nm
Stray light <0.05 %T at 220 nm using NaI or at 340 nm using NaNO2 , <0.10 %T at 380 using NaNO2 ±0.01 A/h at 340 nm
Wavelength accuracy ±1 nm
Wavelength range 190 to 1100 nm
Weight 13.00 kg
