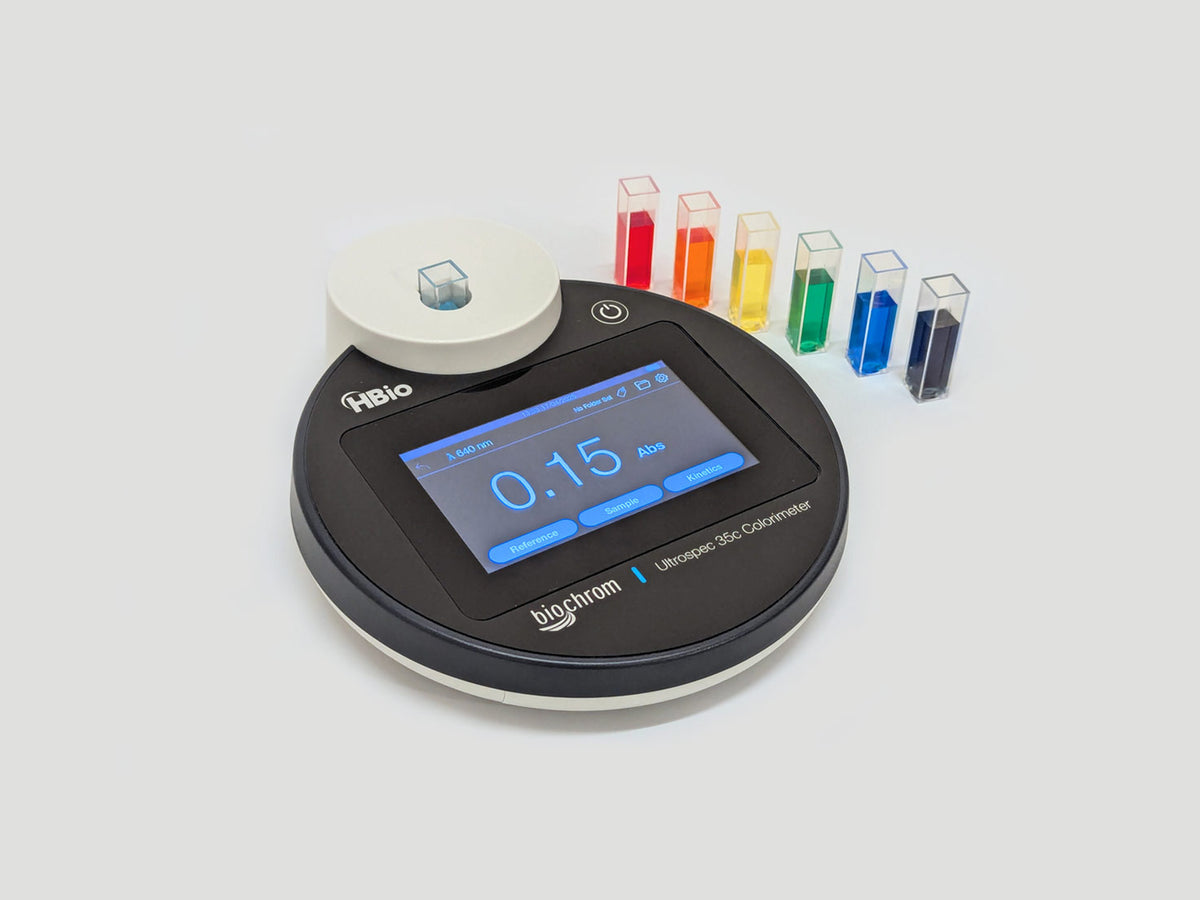

Ultrospec 35c Colorimeter

Key features:

• Flexible analysis: Measures samples in absorbance and % Transmission modes as well as having simple kinetics functionality.
• Robust LED light source: User-selectable wavelengths: 450, 500, 520, 540, 600 and 640 nm.
• Touchscreen display: The instrument has a 4.3’’ color touchscreen for easy workflow.
• Instrument data output: Measurement data can be exported to a USB flash drive as comma-separated values (.csv).
• Versatile and portable: The instrument has a small footprint allowing it to be operated as a handheld battery powered unit or connected to mains power on your benchtop. It is easy to clean and requires very minimal maintenance.

Specifications

• Part Number: 80-3008-11
• Wavelength Range: 450 to 640 nm
• Light Source: LED
• LED array wavelengths: 450 nm, 500 nm, 520 nm, 540 nm, 600 nm, 640 nm
• Detector: Photo Diode
• Display: 480 x 272-pixel resolution backlit LCD color display
• Storage Conditions: -10 ̊C to 70 ̊C (14 ̊F to 158 ̊F)
• Spectral Bandwidth: 40nm
• Photometric Range: Absorbance 0.0 to 2.5A
• Photometric Accuracy: < ± 0.05A 1A using neutral density filter
• Photometric Repeatability: ± 0.02A at 1A
• Operation Modes: Absorbance, Transmission, Kinetics
• Sample Holder: Accepts: • 10mm x 10mm cuvettes • 16mm test tubes Can accept 10-12mm tubes with optional adapter
• Data Connector: USB-A: Interface for memory device
• Power Connector: USB-C: Input power at 5V, 2 Amp max
• Power (via external charger): USB charger specifications (included): 100-240V, 50/60Hz, 10W
• Battery: Internal rechargeable Li-Ion battery
• Compliance: CE & UKCA marked, US/CAN safety (ETL or equivalent)
• Dimensions: 170mm W x 210 mm D x 50 mm H
• Weight: 0.6 kg (1.3 lbs)

Documents

• Biochrom Ultrospec 35c.pdf

Ordering Information
