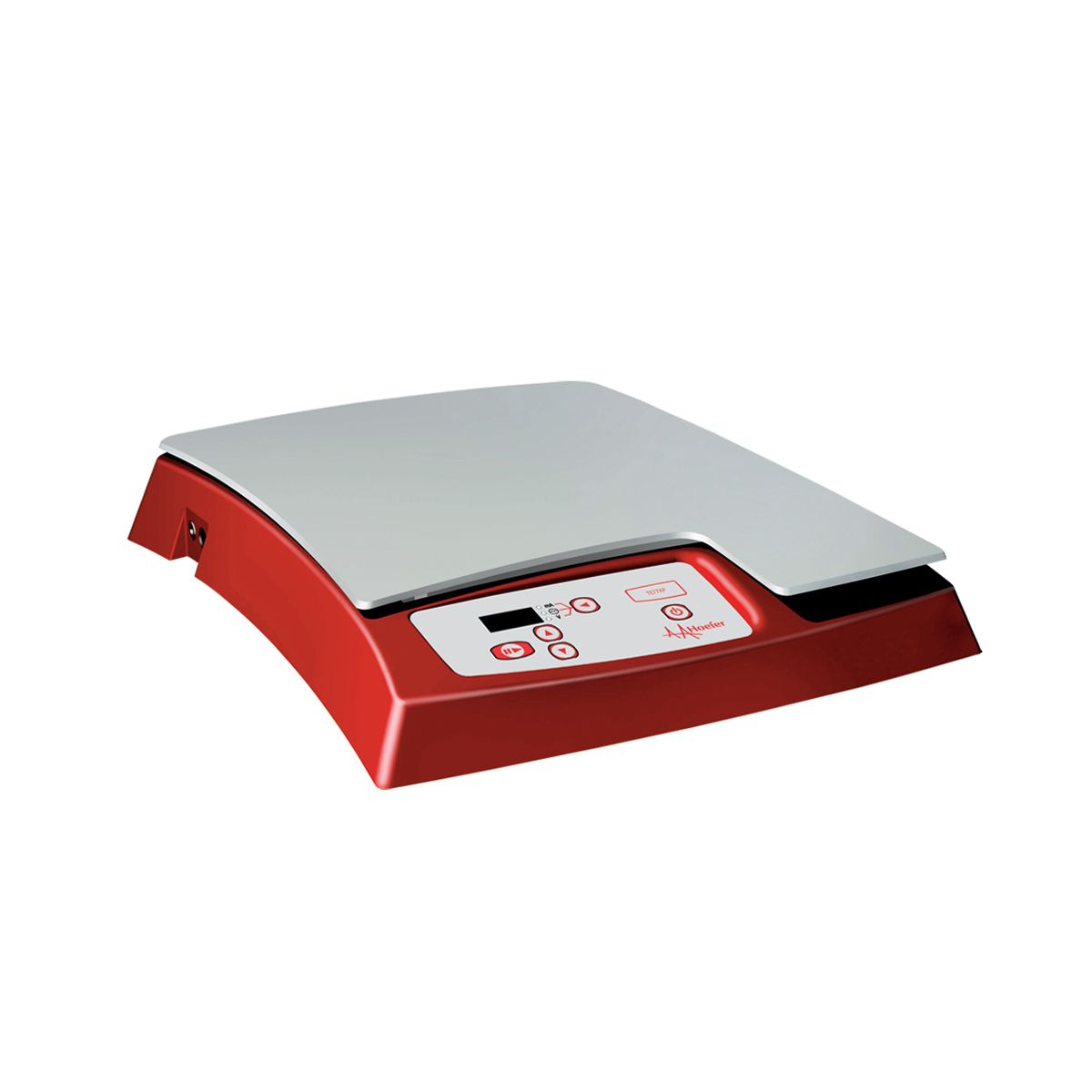

The TE70XP and TE77XP semi-dry transfer units electrotransfer proteins from polyacrylamide gels onto membranes (either nitrocellulose or PVDF) rapidly and efficiently. Their unique design includes an intelligent built-in power supply which automatically monitors the transfer status, stopping the transfer before the stack overheats.
The Semi-Dry Transfer Units support as many as two layers of gels being transferred simultaneously. The TE70XP has a 14 x 16 cm maximum transfer area which can handle up to four mini gels using the stacked format. The TE77XP has a 21 x 26 cm transfer area for a capacity of up to 12 mini gels at one time.
Features & Benefits:
Intelligent built-in power supply—prevents the stack from overheating by monitoring the transfer status
Requires minimal current—does not generate excessive heat that can dry out the transfer stack and halt transfer or damage transfer units
Durable iridium oxide and stainless steel electrodes—allow for contamination free, consistent transfer
Vented electrodes—prevent build up of bubbles which may impair transfer
Minimal buffer requirements—reagent cost and preparation time are reduced
All units have:
Molded Base with Platinum-Coated Titanium Anode and Internal Power Supply
