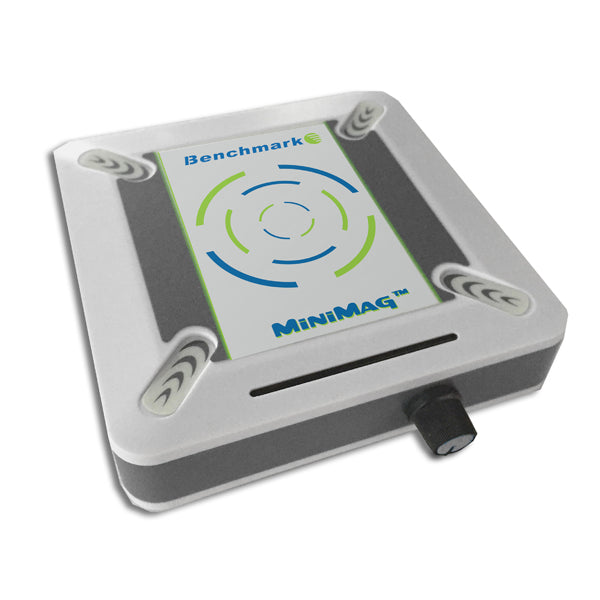

MiniMag™ Magnetic Stirrer

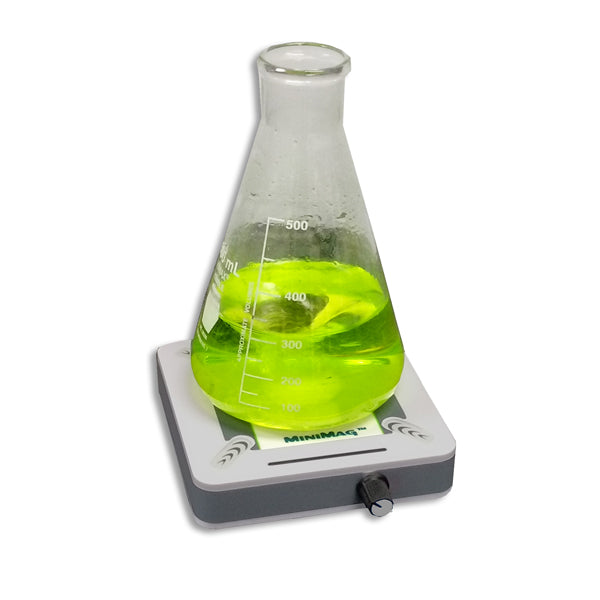

With a square footprint of under 5 inches, the MiniMag™ is the most compact stirrer in the Benchmark line. Despite its modest dimensions, the 3.4 inch square work surface accepts a wide variety of beakers, flasks, bottles and other laboratory vessels for stirring volumes as large as 1.5 liters. The stirring speed is continuously adjustable from 100 to 1500rpm. For temperature sensitive samples, the MiniMag is incubator and cold-room safe for use from +4°C to +45°C.

• "Mini" sized, less than 3.5"³ wide
• Adjustable speed control, 100 to 1500rpm
• Effectively mixes volumes up to 1.5L

Specifications

Speed Range	100 to 1500 rpm
Platform Dimensions	3.4 x 3.4 in./8.5 x 8.5 cm
Operating Temp. Range	+4 to +65°C

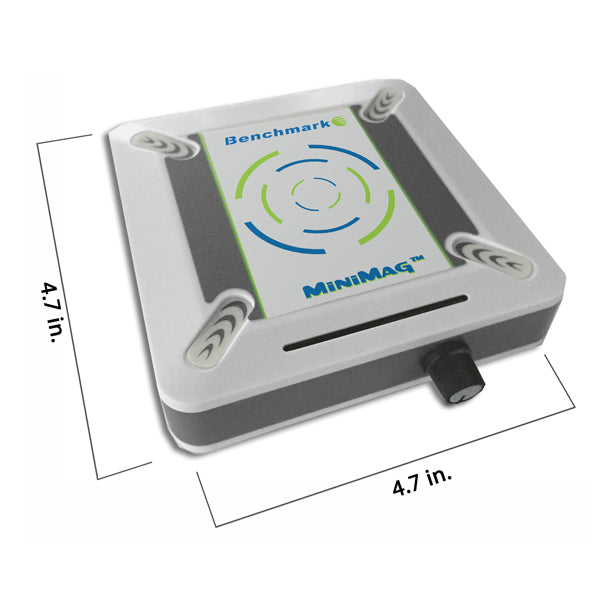

Dimensions (w x d x h)	4.7 x 4.7 x 1.2 in./12 x 12 x 3 cm
Weight	0.45 lbs.(0.2 kg)
Electrical	100 or 240V 50-60Hz 2W. 0.2A (5V DC power supply)
Warranty	2 years

Documents

• Brochure (PDF)
