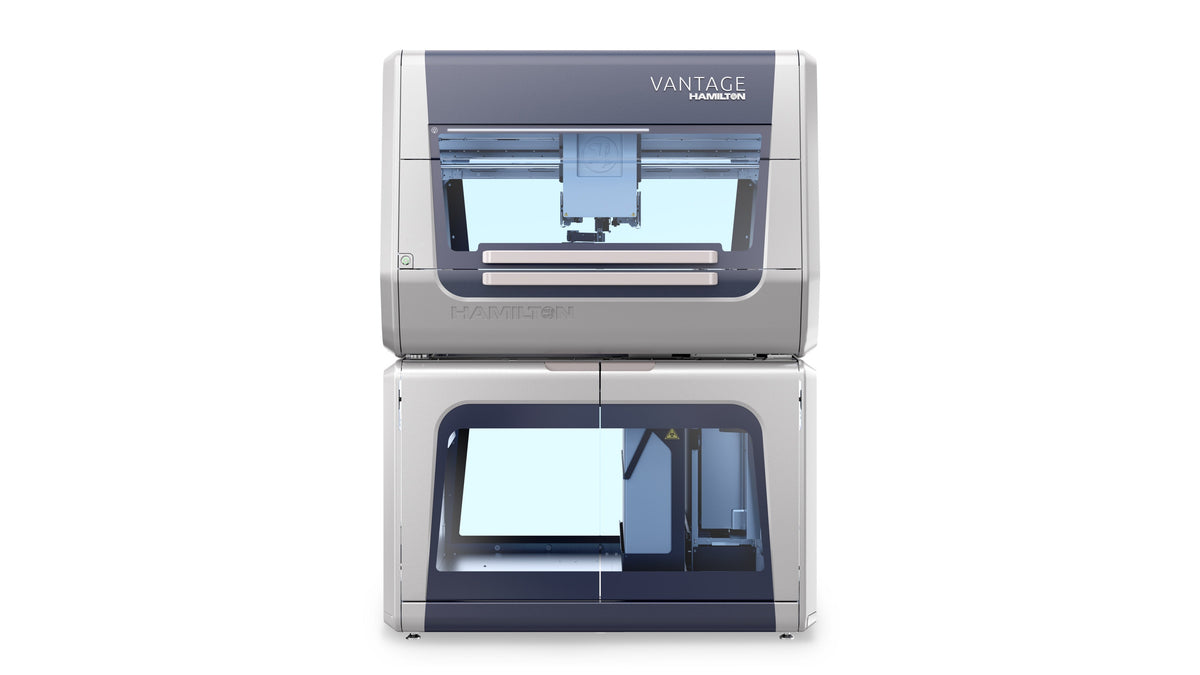

Microlab VANTAGE 1.3 m Liquid Handling System

Hamilton VANTAGE 2.0 is a cutting-edge liquid handling system with automated precision. Optimize workflows with the VANTAGE robot, all while boosting performance, safeguarding samples, and maximizing walk-away time. Discover the Hamilton VANTAGE liquid handler for your current & future needs.

Depend on the Microlab VANTAGE when sample throughput and robust performance are at the top of your priority list. Two deck sizes, 1.3 m and 2.0 m, accommodate any assay type.

When it comes to highly sensitive workflows like next gen sequencing, compound screening, and clinical diagnostics, consistency and repeatability are critical, even during times of surging demand. Compressed O-Ring Expansion II (CO-RE II) Technology in the Microlab VANTAGE and air displacement pipetting ensure robust and repeatable liquid handling. VENUS software controls the VANTAGE liquid handling system, integrates peripheral devices, and offers drag-and-drop method programming.

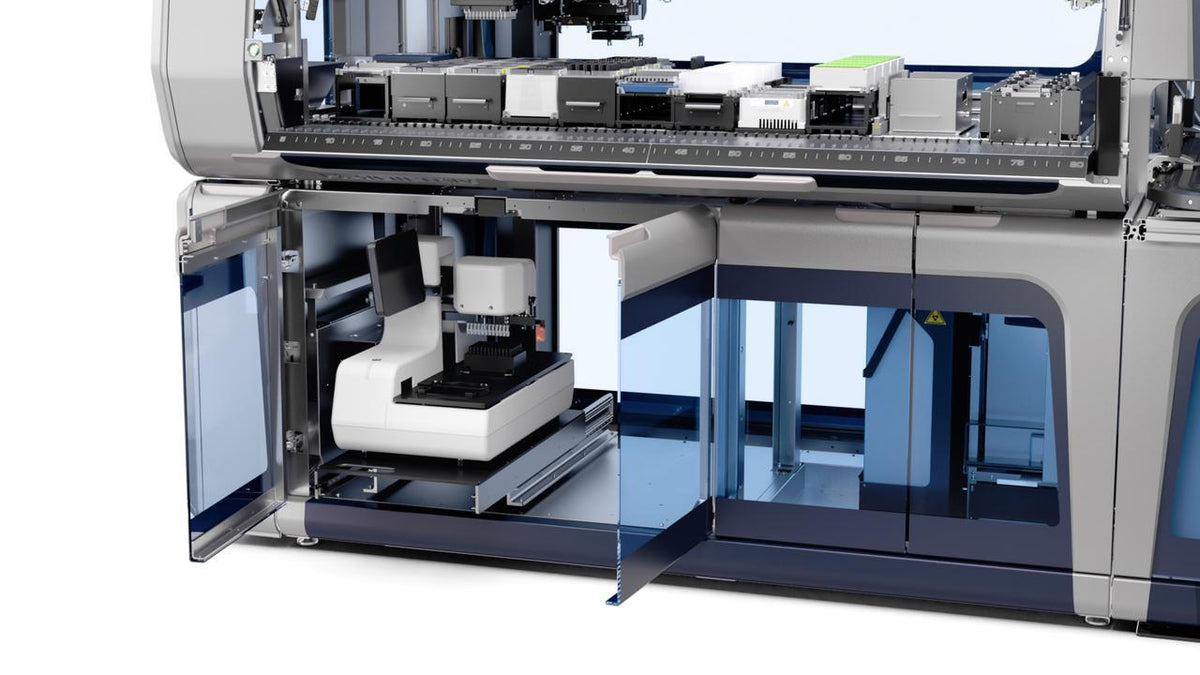

The Hamilton VANTAGE liquid handler is modular, so you can select what you need and upgrade as your needs evolve. Customize the Pipettor with multiple arms, channels, and transport options. Add a Logistics Cabinet for below-deck storage, waste, and device integration, and a Track Gripper to transport between the Cabinet and deck. The Rear Integration Cabinet offers even more storage and device integration space.

Common applications Genomics , Nucleic Acid Extraction , Nucleic Acid Quantification & Normalization , PCR Set-Up , NGS Library Prep

The High Throughput Powerhouse

With a modular architecture and spacious storage space for consumables and devices, the Microlab VANTAGE makes short work of long, intensive processes like high-throughput NGS library prep.

MagPip

Precision liquid handling. Maximum efficiency.

The tubular linear drive inside our MagPip channels can accelerate at speeds that enable precise and ultra fast pipetting down to 350nL.

Fluid Motion Technology

More Workspace. More Performance. More Value.

Innovative drive system enhances the utilization of deck space, enabling researchers to automate more scientific experiments seamlessly within a single unit, ultimately saving valuable lab space.

DPS - Dynamic Positioning System

DPS enables all channels to pipette simultaneously, even across non-uniform patterns. Unlike fixed channels with equidistant spreading, DPS offers efficient yet flexible liquid handling for cherry picking, non-uniform and variable volume samples, and complex pipetting workflows.

CO-RE II Tip/Tool Attachment

The Key to Liquid Handling Workflow Excellence

The new CO-RE II technology assures more precise tip alignment, minimizing the risk of collisions. Also, tip coupling is faster which boosts productivity. Besides tips, a wide range of Hamilton tools are applicable with CO-RE II.

Aerosol-Free Tip Ejection

As part of CO-RE II technology’s functionality, pipette tips are gently ejected from each automated liquid handler pipetting channel. This prevents aerosol generation that may expose users to harmful biohazards or cross-contaminate samples and laboratory surfaces.

Specifications

• Height: 1.82 m (5 ft, 11.65 in)
• Width: 1.33 m (4 ft, 4.36 in)
• Depth: 98 cm (3 ft, 2.58 in)
• Weight: 273 kg
• CO-RE Gripper: Optional
• Internal Plate Gripper (IPG): Optional
• Trackgripper: Optional
• Capacity (ANSI/SLAS Positions): 35
• Device Integration: 360° (Left, Right, Rear, and Below)
• Sample Loading: Automatic
• Autoload Barcode Scanner (1D): Standard
• Autoload Barcode Scanner (2D): Optional
• 1 mL Channels: Up To 16
• 5 mL Channels: Up To 8
• Fluid Motion X1 Channels: Up To 16
• MagPip Channels: Up To 8
• Multi-Probe Head Option: 96 or 384
• Pipetting Range 1: 0.35 µL - 5000 µL

Documents

• Hamilton Automated Solutions Brochure (Brochure)
• Magpip Revolutionizing Your Lab Brochure (Brochure)

Ordering Information
