Manual Valve, 2-Port 180° Flow Path (1-1), PTFE/CTFE, HVX

Name: Manual Valve, 2-Port 180° Flow Path (1-1), PTFE/CTFE, HVX
Brand: Hamilton Company
SKU: 86901
Price: 857.00 ILS
Availability: InStock

Vendor: Hamilton Company

SKU: 86901

857.00 NIS

Stock on Request

In stock

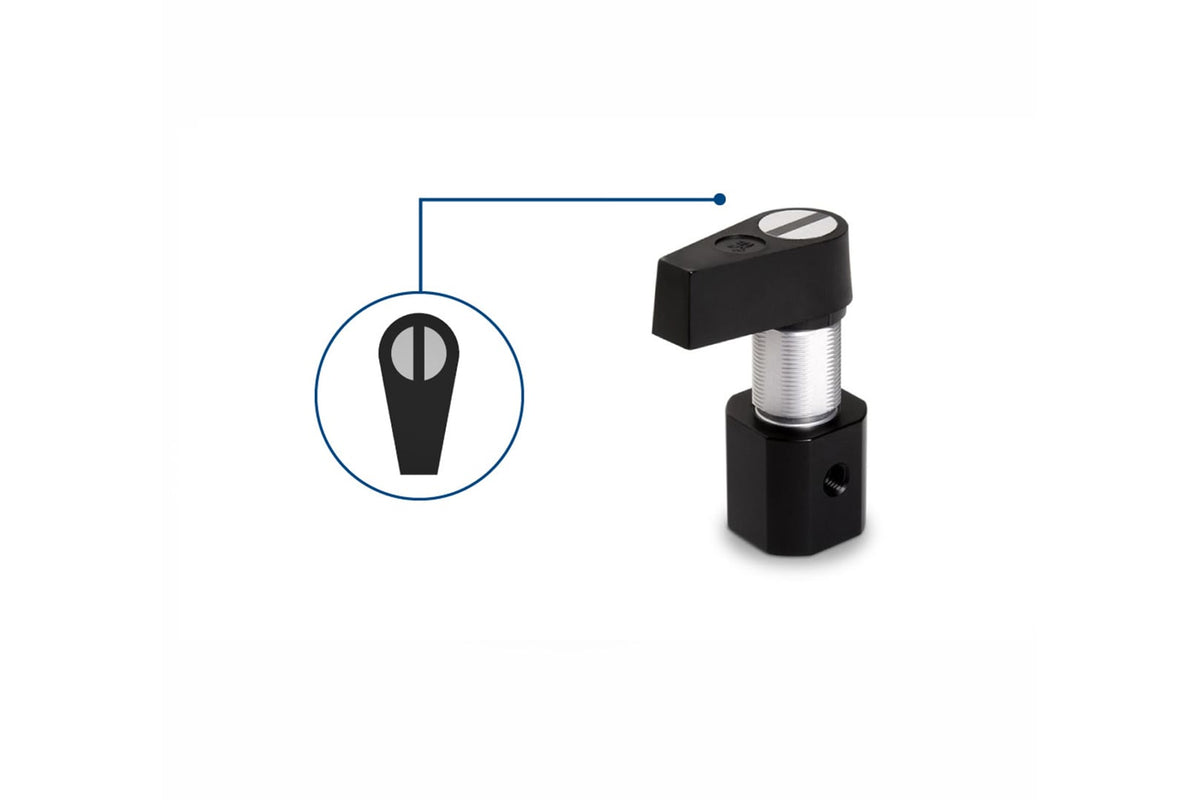

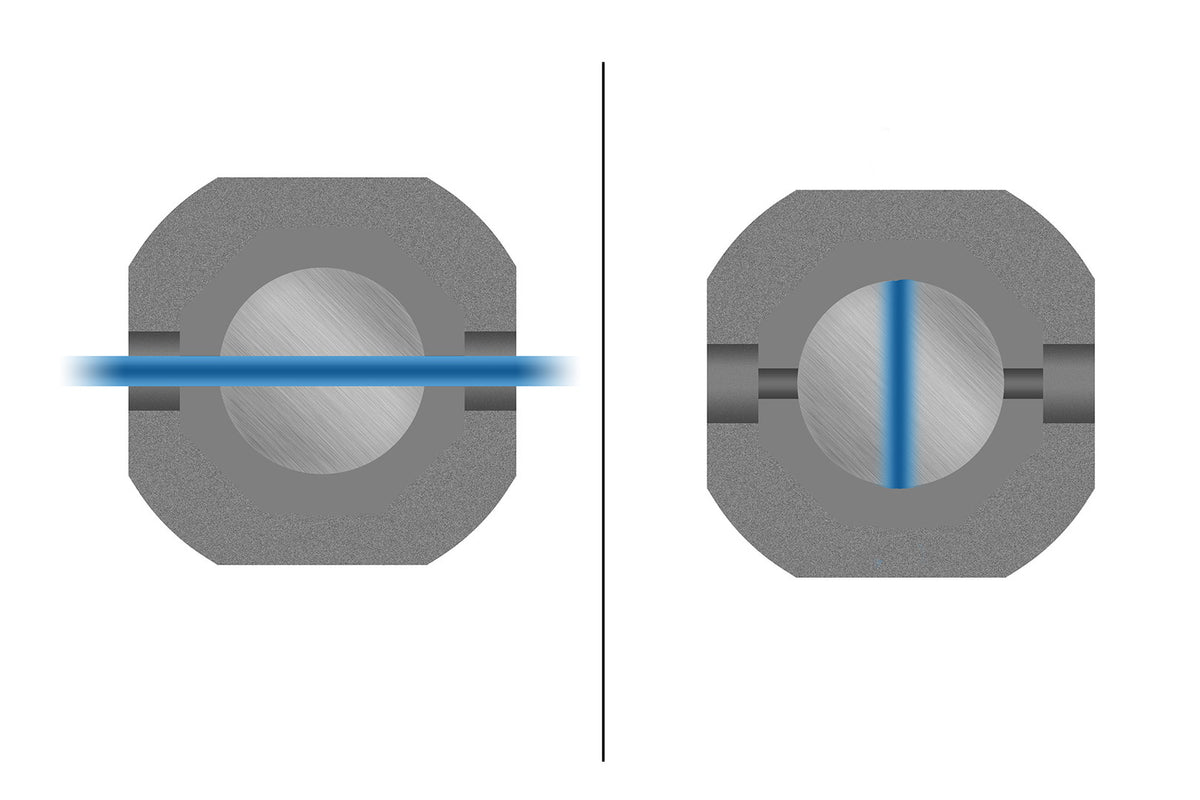

Featuring two 1/4"-28 flat-bottom ports positioned 180° apart, this compact and chemically resistant plug valve (PN: 86901) offers manual ON/OFF control. HVX valves offer larger port diameters ideal for increased flow rates or moderately viscous liquids. This valve can be used free-standing or panel-mounted using an optional locking nut.

Specifications

Valve Model	1-1
Valve Model Description	180° Flow Path 2-ports
Fluid Path	PTFE/CTFE
Valve Size	HVX
Nominal Port Diameter	0.118 inch (3 mm)
Valve Outer Body Dimension	1 inch (25.4 mm)
Housing Material	Aluminum
Fluid Path Dead Volume	94.1 µL
Actuated	Manual
Break Away Torque	65 in oz. (455 mNm)
Panel Mounting	Yes
Panel Thickness	0.625 inch (15.9 mm)
Thread Depth	0.219 inch (5.6 mm)
Threaded Connection	¼-28
Operating Temp High	38 °C (100 °F)
Operating Temp Low	-12 °C (10 °F)
Operating Pressure	0 to 100 psig (0 to 6.9 bar)
Storage Temp High	38 °C (100 °F)
Storage Temp Low	-18 °C (0 °F)

Documents

Specifications

Fluid path PTFE/CTFE
Sub category Manual Valves
