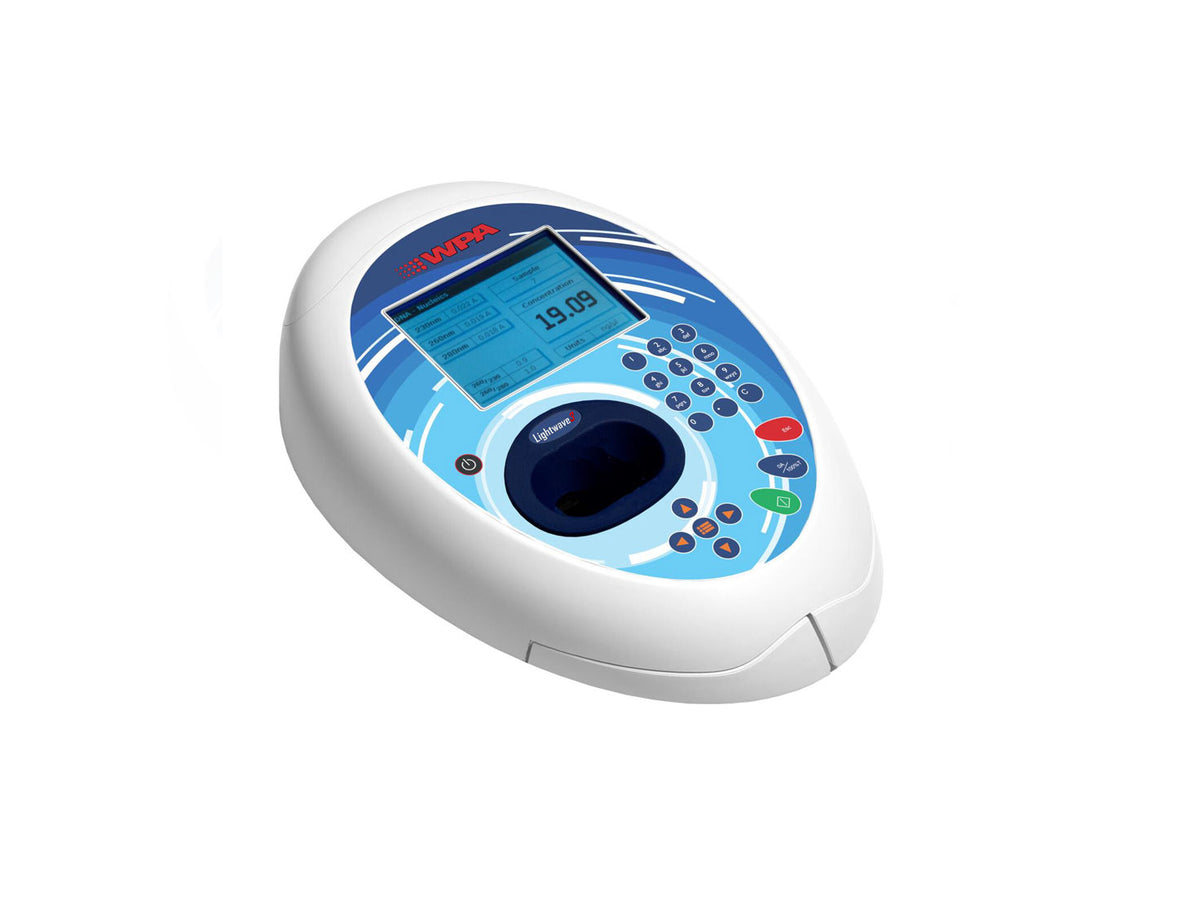

Lightwave 3 and 3+ Spectrophotometers

Flexible data export options

All instruments have a USB port to download result data to a flash drive in a CSV file format. Alternatively, results may be printed to an optional integrated graphical printer for a permanent record or exported via a USB cable connection to a suitable PC running Print Via Computer (PVC) software for advanced reporting and data storage or the optional wireless accessory.

Specifications

• Wavelength Range: 190 to 1100 nm
• Monochromator: Automatic upon switch on
• Beam Height: 15 mm
• Spectral Bandwidth: 5 nm or 3 nm for ‘+’ models
• Wavelength Accuracy: ±2 nm
• Wavelength Reproducibility: ±1 nm
• Light Source: Xenon flash lamp
• Detector: Twin CMOS array
• Photometric Range: -0.300 to 2.500 A, 0.3 to 100 %T
• Photometric Linearity: ±1.3 % or ±0.008 A whichever is greater at 546 nm
• Photometric Reproducibility: ±0.002 A to 0.5 A at 546 nm
• Stray Light: <0.5 %T 340 nm
• Stability: ±0.01 A/h at 340 nm
• Noise: ±0.005 peak to peak ±0.002 RMS
• Digital Output: USB flash drive, PC via PVC software, Optional Wireless
• Data Export: USB flash drive: .tsv, native PVC format PC via PVC: .csv, .emf, .xlsx, .xls, .rtf, .tsv, native PVC format
• Method Storage: 90 with PIN number protection
• Graphical Display: Color touch screen, zoom and track function
• Sample ID: Yes
• Languages: English, German, French, Spanish, Italian, Japanese, Chinese
• Dimensions: 260 × 390 × 100 mm
• Weight: 3.00 kg

Documents

• Biochrom Lightwave 3 & 3+ Brochure.pdf

Ordering Information
