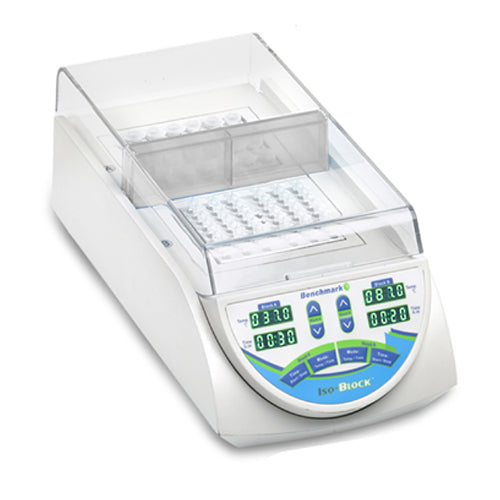

IsoBlock™ Digital Dry Bath, without blocks

Benchmark"™s new IsoBlock dry bath is ideal for incubation of samples at two different temperatures, in a single compact unit. The two chambers are separated by an insulated wall and are controlled independently, allowing IsoBlock to serve as two dry baths in one. The hinged (and removable) lid is also designed with a dividing wall. When closed, this dividing wall acts as a barrier, preventing air transfer between chambers. The control panel features large digital displays of both time and temperature. Both settings of a block can be adjusted at any point, without affecting the settings of the other block. The timer function is non-mandatory; IsoBlock can be used for continuous heating. Various blocks are available for accommodating nearly all popular tube sizes. In addition, the unique Quick-Flip™ universal blocks accept tubes from 0.5 to 2.0ml and, with just a quick flip to the other side, they also accommodate 0.2ml tubes or PCR strips.

• Two isolated chambers (independent control of time & temp.)
• Digital temperature control (set and walk away)
• Hinged lid (improves uniformity & conserves energy)
• Available with Quick-Flip universal blocks (supports all common tube sizes and PCR strips) Patent Pending
• Blocks sold separately

Specifications

Temperature Range	Ambient +5° to 105°C
Temperature Accuracy	+0.1°C
Temperature Uniformity	± 0.3°C
Temperature Increments	0.1°C
Timer	1 min. to 99 hours 59 minutes / continuous
Dimensions (Single)	7 x 10 x 5 in. / 18 x 25 x 13 cm
Dimensions (Dual)	6.3 x 145 x 5 in. / 16 x 36.5 x 13 cm
Weight	8 lbs / 10 lbs
Warranty	2 years
Electrical	120V or 230V 50-60Hz;
Speed Range	200 to 1500 rpm
Speed Increment	10 rpm
Orbit	3mm
Timer	1 min. to 99 hr or continuous
Load Capacity	Up to 4 microplates
Ambient Operating Temp.	+4°C to +65°C
Dimensions (in)	13.1 x 11.7 x 4.7
Dimensions (cm)	33.3 x 29.8 x 12
Weight	12 lbs (5.5kg)
Electrical	Universal Voltage: 100 to 240V 50-60Hz; 250W
Warranty	2 years
