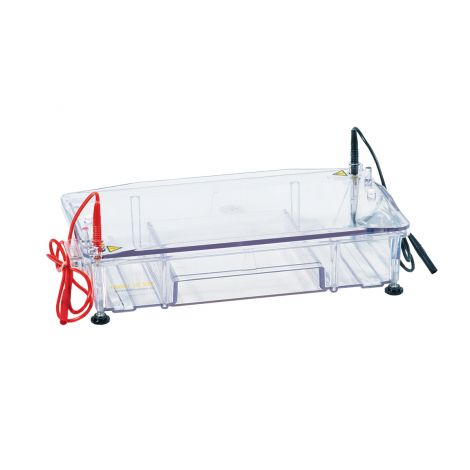

The HE99X Max Agarose Electrophoresis Unit facilitates high resolution separation of nucleic acid fragments 100 bp to 20 kbp. Three different length trays are available for use with this unit.
Gel anchor feet—prevent the gel from floating or sliding during the run
Variety of comb sizes—enables customization of sample throughput to fit your laboratory's requirements
Adjustable comb height—complete control over well depth
Three casting kits available—enabling users to run 15 x 20,15 x 15, or 15 x 10 cm gels in the same unit
Complete Unit Includes:
Buffer Chamber Assembly
Safety Lid with High Voltage Leads
Running Tray, 15 x 20 cm
Casting Tray, 15 x 20 cm
Foam Gaskets, 4 pcs
Bubble Level
1.5 mm thick, 15-well comb
Comb Back
Basic Unit Includes: The same as above without the Running Tray, Casting Tray, Comb, and Comb Back. Order a casting kit, combs and comb backs separately.
Ordering Information:
Cat #
HE99X-15-1.5
HE99X Complete Unit
HE99X
HE99x Basic Unit
Specifications:
Gel Dimensions (W x L)
15 x 20 cm, 15 x 15 cm, or 15 x 10 cm
Maximum Buffer Volume
1.2 L
Maximum Power Settings
200 V, 100 mA, 20 W
Maximum Sample Capacity
60
Maximum Temperature
45°C
Indoor Use
4 to 40°C
Humidity
Up to 80%
Unit Dimensions (L x H x W)
36 x 14 x 18.2 cm
Specifications
Gel dimensions
15 x 20 cm, 15 x 15 cm, or 15 x 10 cm
