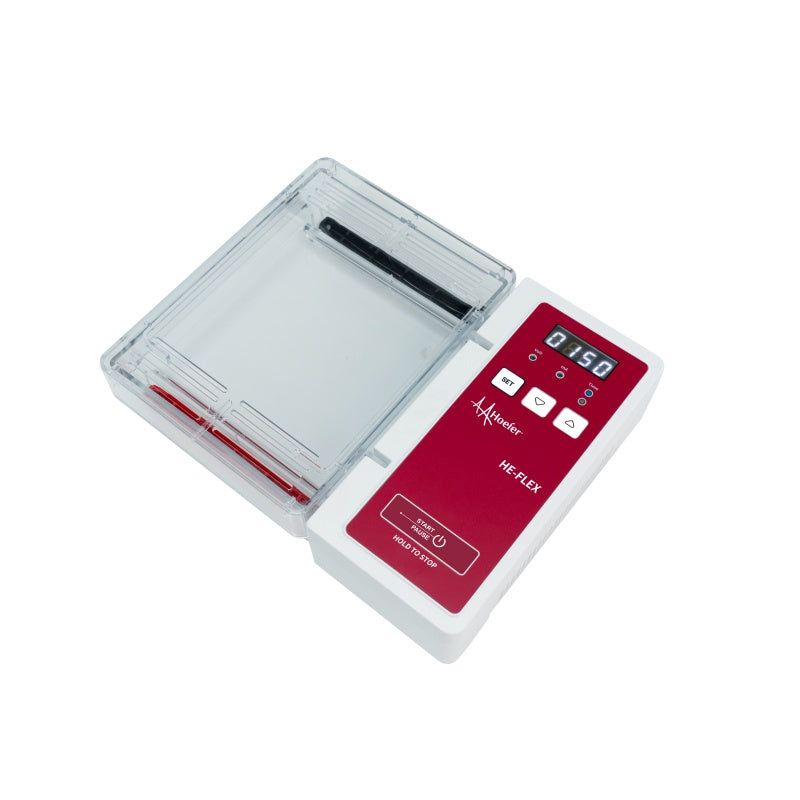

The HE-FLEX is completely integrated with a built-in variable power supply and provides a compact easy-to-use horizontal electrophoresis system for the separation of nucleic acids. An LED display enables easy viewing of the voltage, amperage, and time. Also featured is a 99:59 minute timer with an audible end of run alert. This all-in-one system is ideal for basic academic, educational and field-testing needs.
Features
Precise Power Control – Adjustable 10–150 V / 10–400 mA in 10 V / 5 mA steps

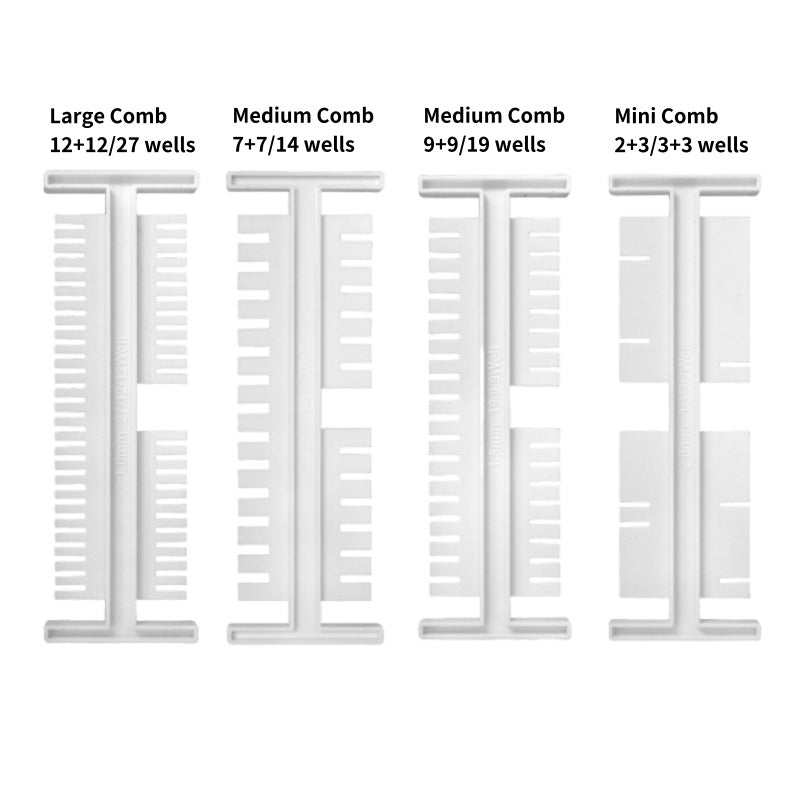

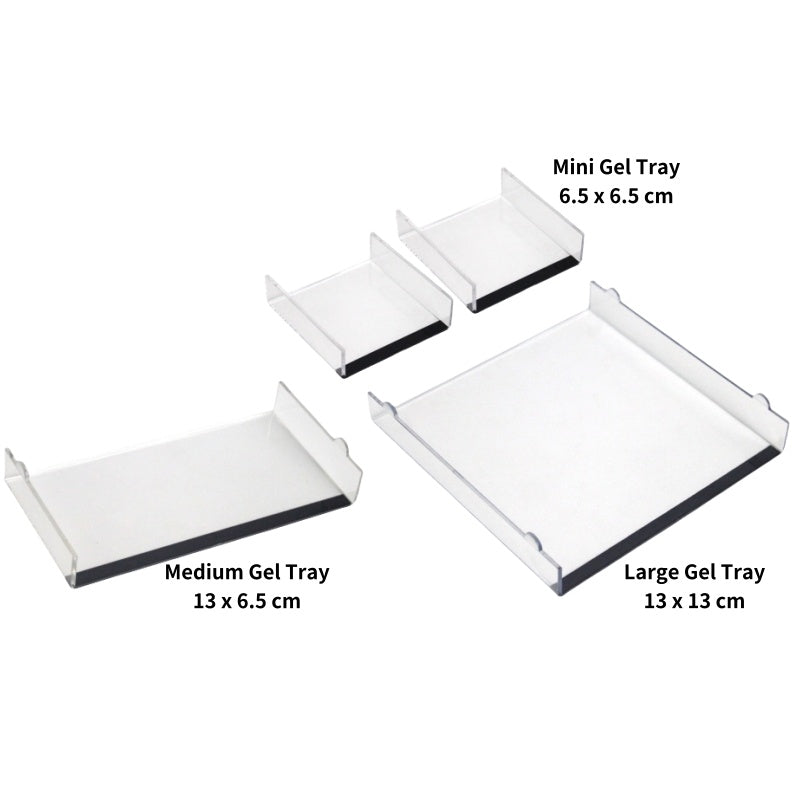

Flexible Gel Options– Multiple gel trays and combs for various applications
Durable Tank Design – Rugged polycarbonate with vented lid for visible runs
Compact Footprint – Space-saving design for any lab bench
Reliable Operation – Stable performance and easy maintenance for routine use
Technical Specifications
Unit Dimensions (w x l x h) . . . . 19.5 x 26.3 x 6.2 cm Gel Dimensions (w x l) . . . . . . . . 13 x 13 cm Maximum Sample Capacity . . . .108 samples (4 combs, 27 samples each) Buffer Capacity . . . . . . . . . . . . . . 500 ml Distance Between Electrodes . . 13.5 cm Weight . .. . . . . . . . . . . . . . . . . . . . 830g
Electrophoresis Tank Overall Dimensions (w x l x h) . . 15 x 15 x 4.0 cm Material Characteristic . . . . . . . . UV transmitting (50% at 254 nm, 80% at 312 nm) Solution Volume . . . . . . . . . . . . . 500 ml Power Supply Input Voltage . . . . . . . . . . . . . . . AC 100 – 240 V, 50/60 Hz Output Voltage . . . . . . . . . . . . . .10 to 150 volts in10Vsteps; constant peak voltage of 150 V Output Amperage . . . . . . . . . . . 10 to 400 mA in5mAsteps Maximum Wattage . . . . . . . . . . .55 W Timer . . . . . . . . . . . . . . . . . . . . . . .99 hours 59 min, or continuous run Safety Switch . . . . . . . . . . . . . . . . A microsensor in the power supply prevents output without the safety lid in place Memory Function . . . . . . . . . . . . Automatic memory (the last used Voltage & Time) Safety Certifications . . . . . . . . . . CE
