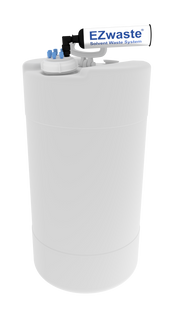

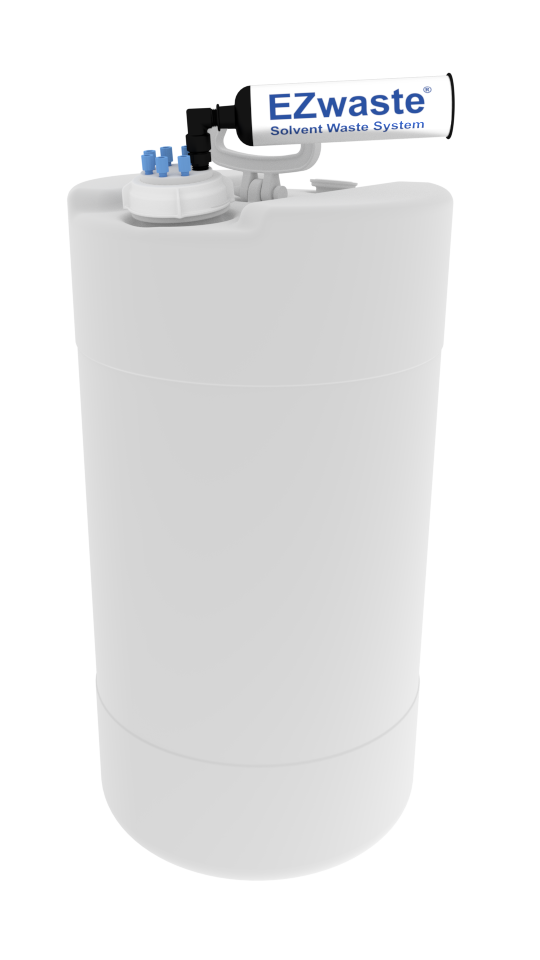

EZwaste® XL UN/DOT Filter Kit, 60 L, VersaCap S70 w/ Threaded Adapter
Vendor: Foxx Life Sciences
SKU: 332-EC03-OEM
In stock
The 60L UN/DOT Filter Kit, VersaCap® 70S EZwaste® XL Solvent Waste System is designed to be an affordable solution for HPLC liquid waste disposal. Each system is manufactured to safely collect waste from two HPLC machines. This system features an activated carbon filter that traps volatile organic compounds from being released into the air. This prevents chemicals from being inhaled by lab workers and provides an easy mechanism of disposal for vapor wastes. The EZwaste® XL Solvent Waste system also features a closed-loop design that protects against leaks and spills, improving overall lab safety.
Foxx Life Sciences' EZwaste® XL DOT/UN System is designed to be an affordable solution for liquid waste disposal. Each system is manufactured to safely collect waste from one or more HPLC systems while the carbon exhaust filters improve air quality by capturing potentially harmful vapors emitted from solvents. Each system includes a 60L HDPE Container, 70S VersaCap® with Threaded Adapter, 6 ports for 1/8" OD waste tubes, 1 port for carbon exhaust filter, 1 carbon exhaust filter, and plugs for unused ports.
* Depending on the application, carbon exhaust filter life cycle may vary



Specifications
- Material: HDPE
- Container Height (filter in horizontal position): 30.0" (762.0 mm)
- Container Height (filter in vertical position): 35.0" (889.0 mm)
- Height: 26.3" (668 mm)
- Volume: 60L
- Container OD: 14.4" (365.8 mm)
- OD Tubing Ports: 6 x 1/8"
- Hose Barb: 0
- Filter Length: 6.97"(177mm)
- Filter Base Diameter: 1.89"(48mm)
- Filter Top Diameter: 1.73"(44mm)
- Filter thread: 1/4"
- Approvals: UN/DOT, FDA
- UN Rating: Y1.8/150



Documents
- EZwaste® Datasheet: (US)
- EZwaste® Datasheet: (A4)
- EZwaste® Adapter Guide: (US)
- EZwaste® Adapter Guide: (A4)
Ordering Information
| Catalog # | Ports |
|---|---|
| 332-EC03-OEM | 6x 1/8" |
| 332-EC05-OEM | 6x 1/8" + 1x 1/4" |
| 332-EC11-OEM | 4x 1/8" + 3x 1/4" |

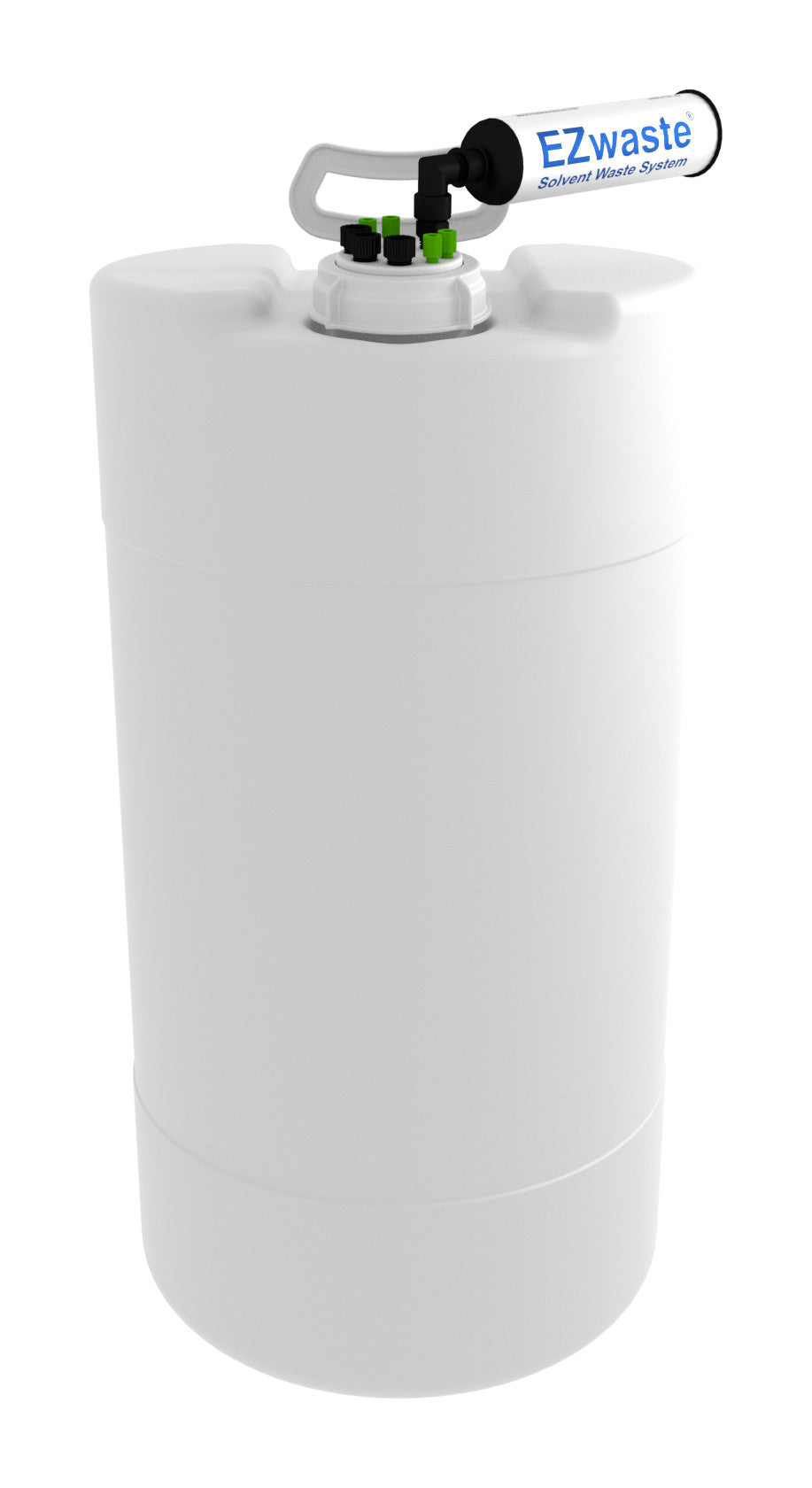

| 332-EC12-OEM | 4x 1/16" + 3x 1/4" |
| 332-EC16-OEM | 4x 1/8" + 4x 1/4" |
Specifications
- Dimensions H 26.3" (668 mm) · Ø 14.4" (365.8 mm)
- Exhaust filter thread 1/4" · L 6.97"(177mm) · top Ø 1.73"(44mm) · base Ø 1.89"(48mm)
- Material HDPE
- Port configuration hose barb 0 / 1
- Regulations Y1.8/150, UN/DOT, FDA
- Sub category UN/DOT Containers
- Volume 60L
links and documants
- Datasheet url Click here
- Guide url Click here
- Source url Click here
