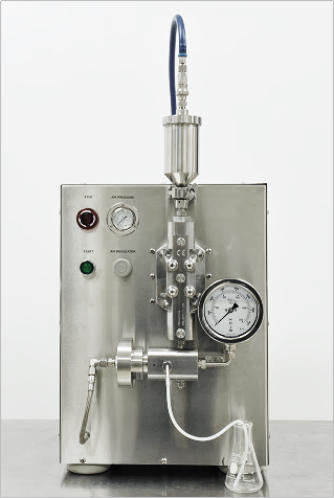

EmulsiFlex-C3 homogenizer. Pressure adjustable by pneumatic control 500 to 30000psi/35 to 2000bar Includes dynamic hybrid homogenizing valve, hose assembly, necessary tools, operating manual.
Specifications
Capacity: 3 L/h
Pressure: Up to 30,000 psi (2,000 bar)
Minimum Sample Volume: 10 mL
Power Requirements: 115/230 VAC 50/60 Hz 1 hp (0.75 kW)
Air Requirements: 60 to 120 psi (4 to 8 bar), virtually no air consumption
Dimensions [W × D × H]: 15 in × 24.8 in × 28.5 in (380 mm × 630 mm × 720 mm)
Weight: 260 lbs (120 kg)
Ordering Information
Catalogue No.
Description
EF-C3
EmulsiFlex-C3 homogenizer. Pressure adjustable by pneumatic control 500 to 30000psi/35 to 2000bar Includes dynamic hybrid homogenizing valve, hose assembly, necessary tools, operating manual.
Specifications
Air requirements
60 to 120 psi (4 to 8 bar), virtually no air consumption
Capacity
3 L/h
Dimensions
15 in × 24.8 in × 28.5 in (380 mm × 630 mm × 720 mm)
Minimum sample volume
10 mL
Power requirements
115/230 VAC 50/60 Hz 1 hp (0.75 kW)
