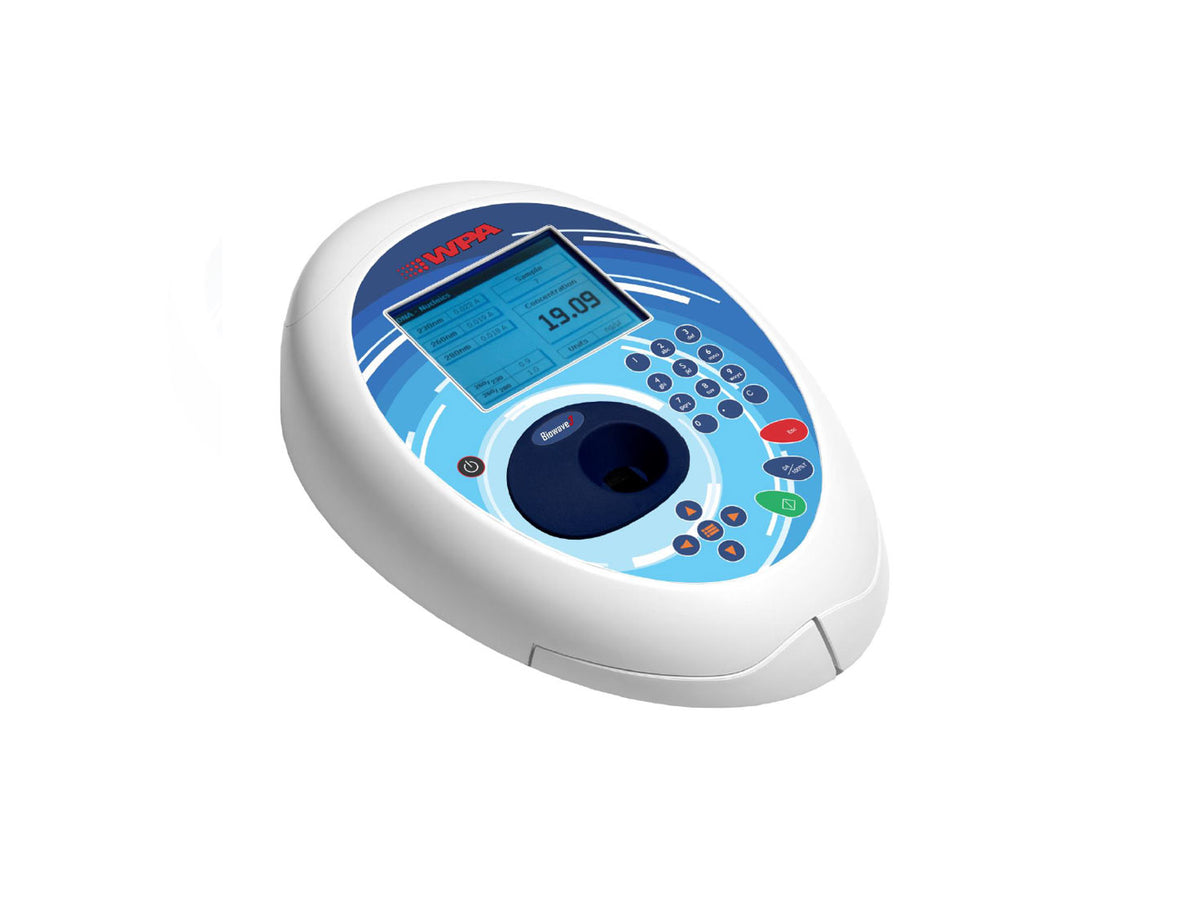

Biowave 3 and 3+ UV-Visible Life Science Spectrophotometers

Vendor: Biochrom

SKU: 80-3007-32

0.00 NIS

Quote Required

In stock

Feature:

Split Beam (RBC) UV/Vis Spectrophotometer 190-1100nm (3nm/5nm bandwidth)
Pre-programmed methods for DNA, RNA, Oligos, proteins and cell density
Nucleic acid scans for purity checking
Low volume capability with Microvolume cuvettes
Novel optics with a Xenon source for long lamp lifetime and low running costs
Lightweight and stackable for storage

Flexible Data Export Options

Results may be downloaded to a USB flash drive or printed to an optional integrated graphical printer for a permanent record. Alternatively, results can be exported via a cable connection to a suitable PC running Print Via Computer (PVC) software or wireless accessory (optional).

Comprehensive IQ/OQ Support for your Biowave instrument:

Comprehensive IQ/OQ documentation and service support is available for our Biowave instruments allowing the qualification of wavelength accuracy, wavelength repeatability, photometric accuracy, stray light, resolution, noise, and drift.

If your lab requires IQ (Installation Qualification) and OQ (Operational Qualification), contact us to learn more.

Specifications

Wavelength Range: 190 to 1100 nm
Monochromator: Flat grating
Wavelength Calibration: Automatic upon switch on
Beam Height: 15 mm
Spectral Bandwidth: 5 nm or 3 nm for ‘+’ models
Wavelength Accuracy: ±2 nm
Wavelength Reproducibility: ±1 nm
Light Source: Xenon flash lamp
Detector: Twin CMOS array
Photometric Range: 0.0 to 2.500 A, 0.3 to 100 %T
Photometric Linearity: ±1.3 % or ±0.008 A whichever is greater at 546 nm
Photometric Reproducibility: ±0.002 A to 0.5 A at 546 nm
Stray Light: <0.5 %T 340 nm
Stability: ±0.01 A/h at 340 nm
Noise: ±0.005 peak to peak ±0.002 RMS
Digital Output: USB flash drive, PC via PVC software, Optional Wireless
Data Export: USB flash drive: .tsv, native PVC format PC via PVC: .csv, .emf, .xlsx, .xls, .rtf, .tsv, native PVC format
Method Storage: 90 with PIN number protection
Graphical Display: Yes, zoom and track function
Sample ID: Yes
Languages: English, German, French, Spanish, Italian, Japanese, Chinese
Dimensions: 260 × 390 × 100 mm
Weight: 3.00 kg

Documents

Biowave 3 and 3+ UV-Visible Life Science Spectrophotometers.pdf

Ordering Information

Catalogue No.	Configuration	Description
80-3007-32	Biowave 3	BIOWAVE 3
80-3007-33	Biowave 3 with Printer	BIOWAVE 3 W/ PRINTER
80-3007-34	Biowave 3 Wireless	BIOWAVE 3 W/ BLUETOOTH
80-3007-35	Biowave 3 Wireless with Printer	BIOWAVE 3 W/ BT&PRTBIOWAVE 3+
80-3007-37	Biowave 3+	BIOWAVE 3+
80-3007-38	Biowave 3+ with Printer	BIOWAVE 3+ W/ PRINTER
80-3007-39	Biowave 3+ Wireless	BIOWAVE 3+ W/ BLUETOOTH
80-3007-40	Biowave 3+ Wireless with Printer	BIOWAVE 3+ W/ BT&PRT

Specifications

Data export USB flash drive: .tsv, native PVC format PC via PVC: .csv, .emf, .xlsx, .xls, .rtf, .tsv, native PVC format
Detector Twin CMOS array
Dimensions 260 × 390 × 100 mm
Light source Xenon flash lamp
Method storage 90 with PIN number protection
Noise ±0.005 peak to peak ±0.002 RMS
Photometric range 0.0 to 2.500 A, 0.3 to 100 %T
Spectral bandwidth 5 nm or 3 nm for ‘+’ models
Stray light <0.5 %T 340 nm
Wavelength accuracy ±2 nm
Wavelength range 190 to 1100 nm
Weight 3.00 kg
