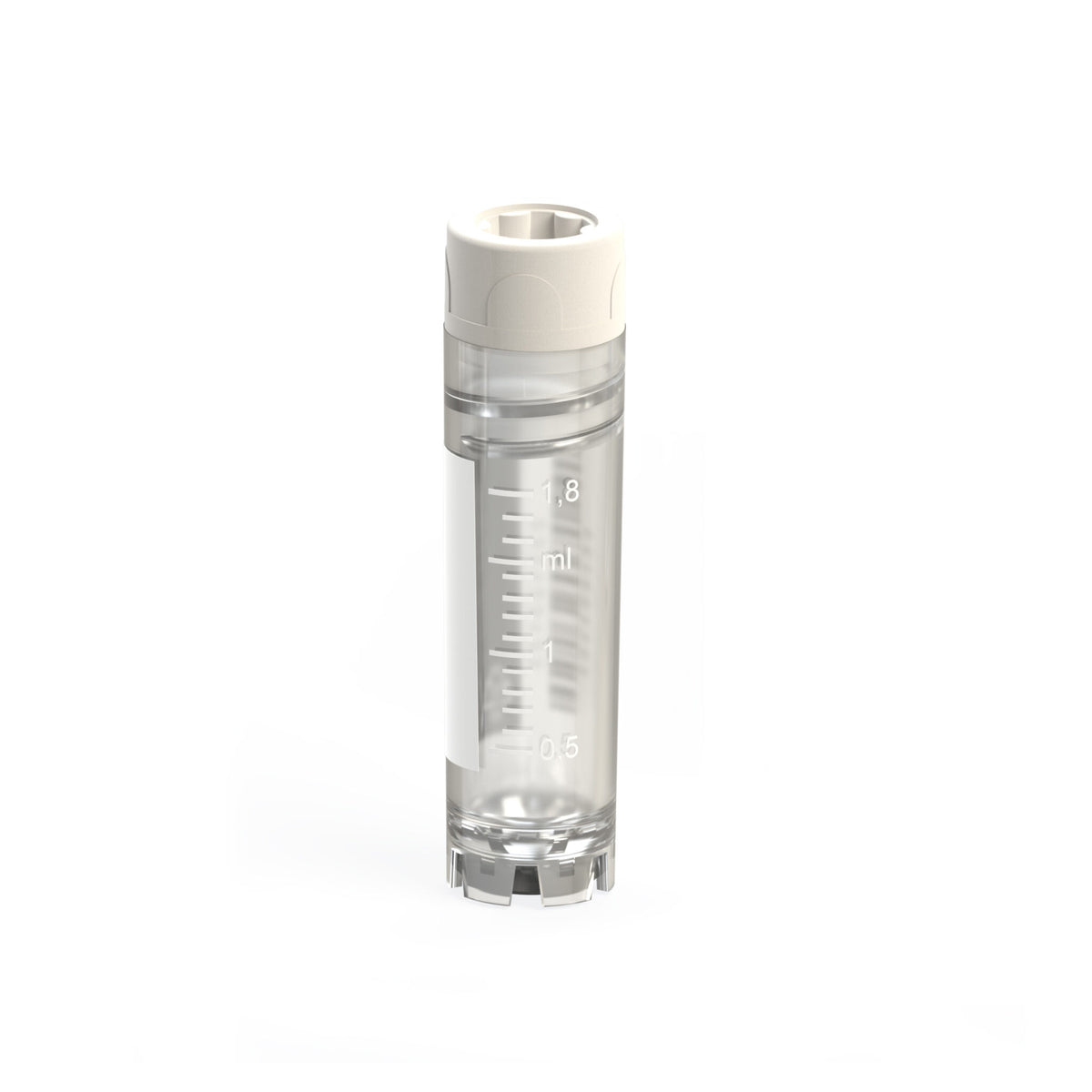

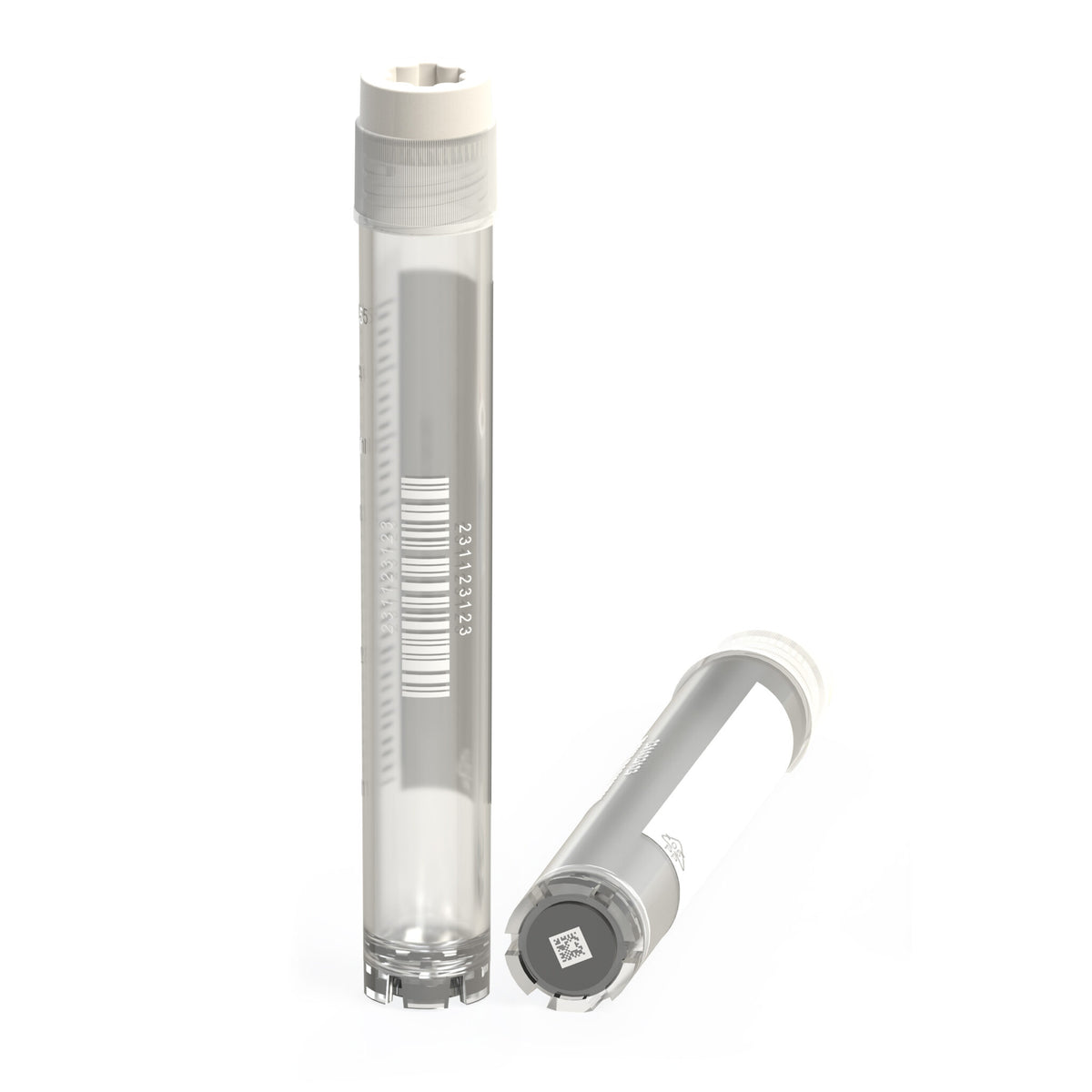

CryoGen® 2D Barcoded Cryotubes CLEARLine®

CLEARLine® 2D CryoGen® tubes are designed for the safe storage and traceability of biological samples under cryogenic conditions.

Each tube is equipped with a unique 2D DataMatrix code engraved on the bottom, sequentially linked to a Code 128 barcode printed on the tube body, enabling efficient sample tracking and compatibility with automated laboratory systems.

The innovative bi-injected screw cap integrates plastic and silicone components into a single structure, ensuring leak-proof performance, preventing contamination and providing excellent screwing grip during handling.

Designed for cryogenic applications, the tubes allow storage of biological samples such as cells, blood, serum and other fluids at temperatures as low as -196°C.

CLEARLine® 2D cryotubes are sterile (SAL 10⁻⁶) and certified free from Human DNA, DNase, RNase, ATP, pyrogens and PCR inhibitors, ensuring maximum reliability in contamination-sensitive workflows.

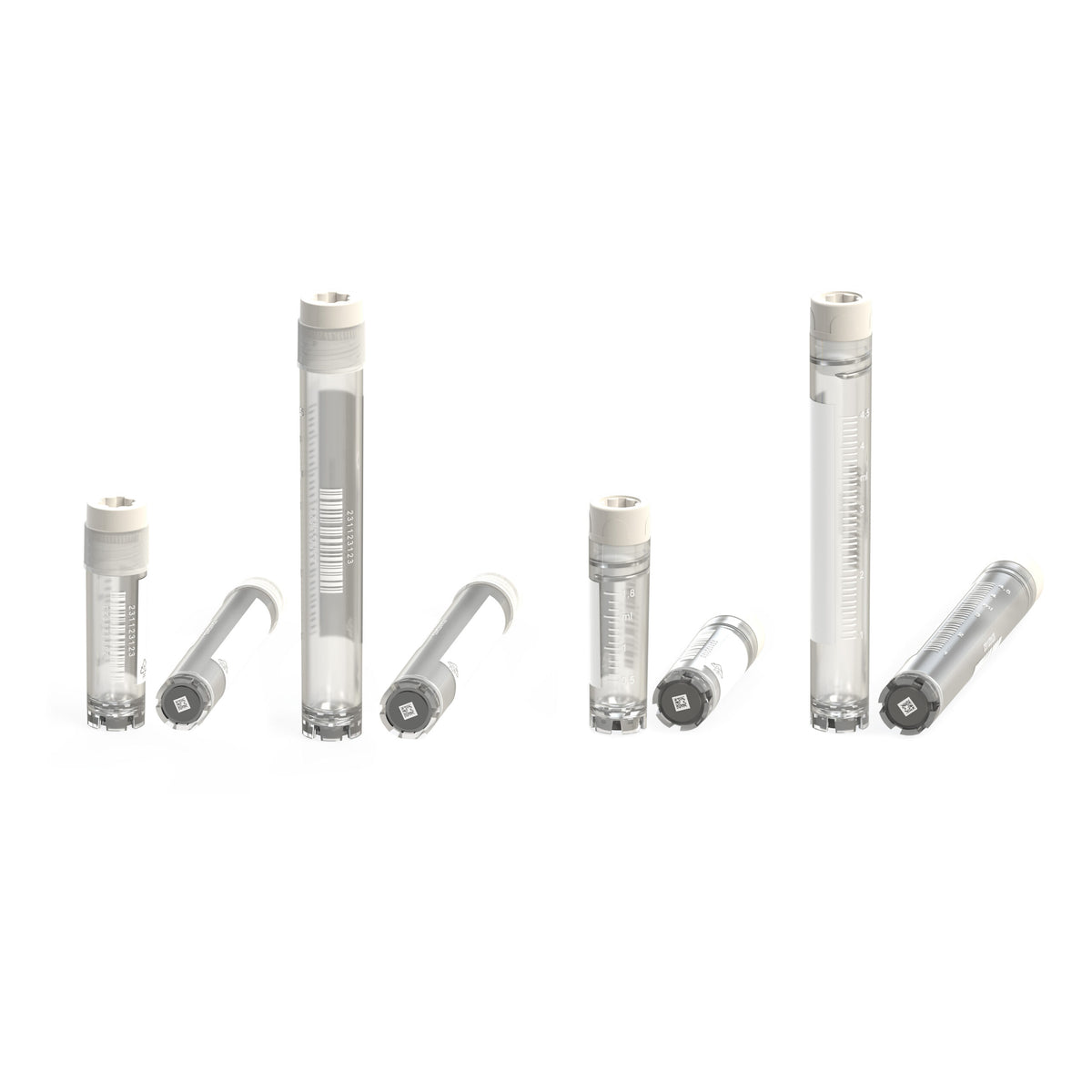

They are available in different formats (2 ml and 5 ml) with internal or external thread options, offering flexibility for laboratory and biobanking applications.

Features

• Product made without intentional addition of PFAS during the production process
• CLEARLine® certificated Human DNA, PCR Inhibitor, DNase, RNase, Pyrogen, ATP free.
• Metal free
• Sterile beta-ray SAL10^-6
• Medical grade raw materials
• Linear Barcode 128, unique and consecutive, printed on each vial
• 2D Datamatrix Code inserted in the bottom, sequential and corresponding to the ?Code 128? on the tube body

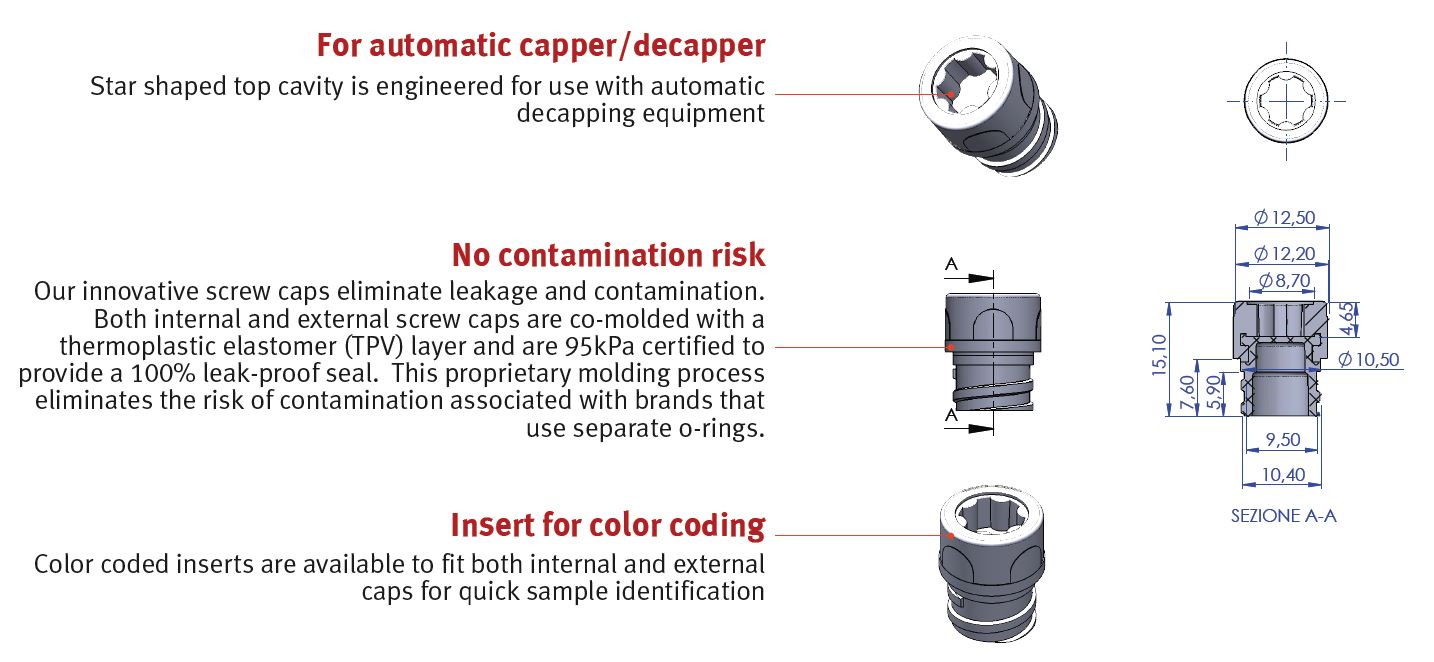

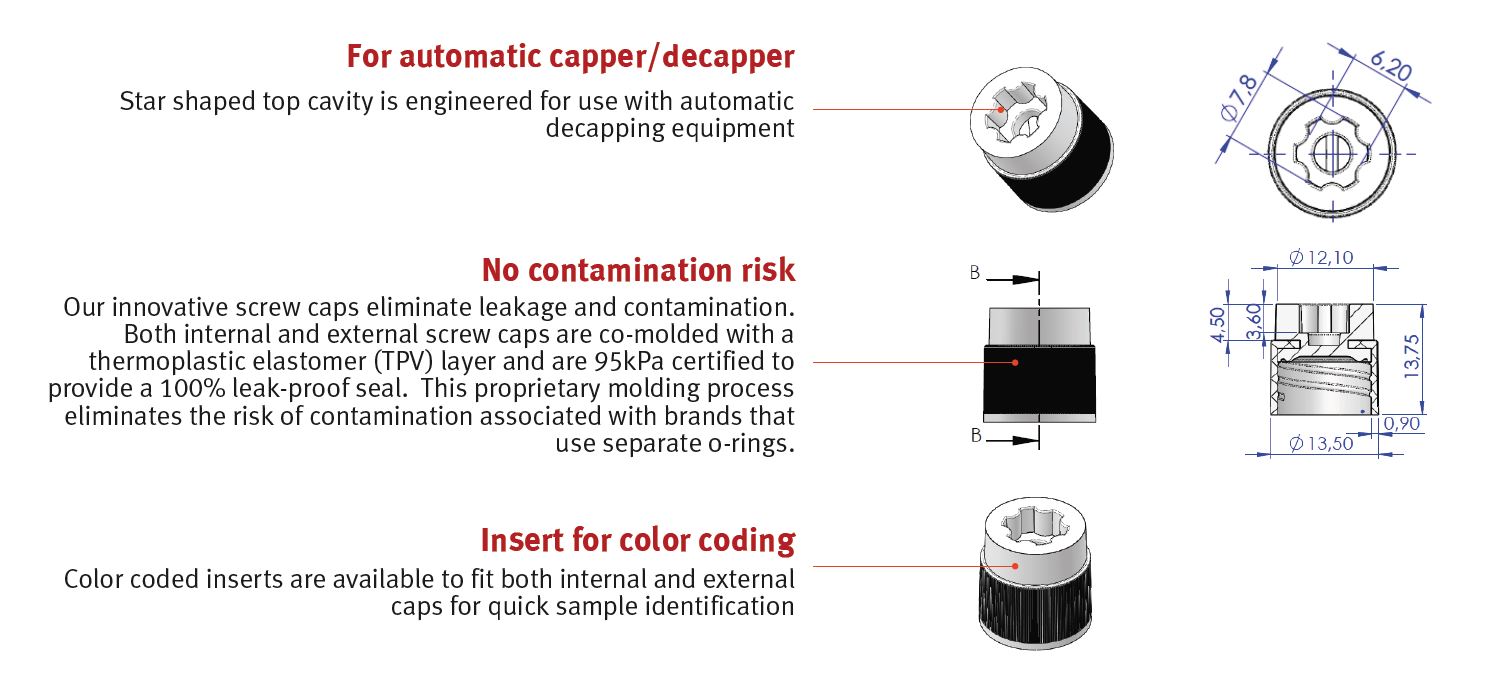

• Bi-injected screw cap eliminates leakage and contamination
• Star shaped top cavity for use with automatic dacapper, manual vial picker and coloured cap disk
• Writing area and printed graduations for accurate measurements
• Autoclavable at 121°C steam for 20 minutes
• Centrifuged at: 14.000 rpm ? 19.000 xg
• Designed for cryogenic storage of biological samples at temperatures down to -196 ° C
• Fast cap screwing with only one hand
• Locking base features prevents tubes rotating within the rack/workstation during capping and decapping

Applications

• Biobanking and Cryobanking
• Biotech and Pharmaceuticals
• Blood and Tissue banks
• Cryogenic storage and transport of biological specimens at temperatures as low as -196°C
• Food industry
• Ideal for biobanking and R&D Labs
• Laboratories and Research

Product Information

CryoGen® Tubes CLEARLine® are certified completely free of human DNA, PCR inhibitors, DNase, RNase, Pyrogens, ATP by our internal laboratory. To download lot-specific certificate see the section certificate on the web site.

CryoGen® Tubes CLEARLine®certified as STERILE were treated with a validated method to provide a Sterility Assurance Level (SAL) of 10^-6. To download lot-specific certificate see the section certificate on the web site.

• The material has passed the United States Pharmacopeia testing including Class VI tests
• Material has successfully passed the biological tests according to ISO 10993 external communicating devices for indirect blood contact for a prolonged period

Test tube in medical polypropylene and cap in medical polyethylene/rubber. The combination of polyethylene stopper and test tube in polypropylene, makes screwing easier avoiding the grip effect caused by the use of the same raw material for both components.

• serial-consecutive
• unique
• human readable characters printed in both left and right hand orientation for easy readability by all users.

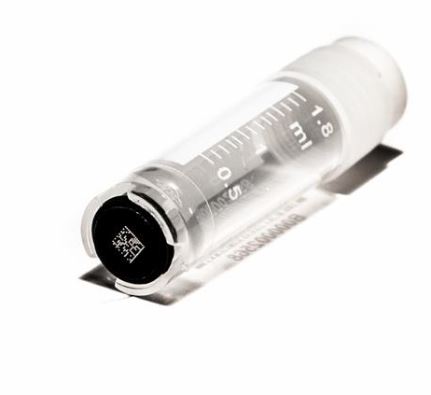

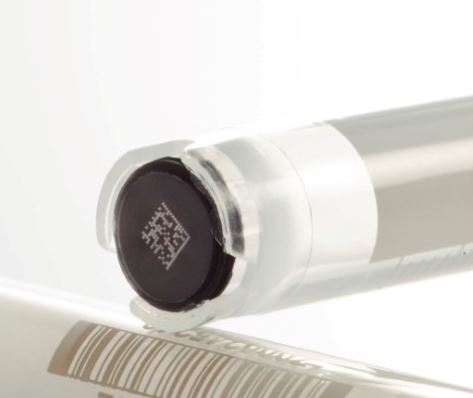

Datamatrix code inserted in the bottom, sequential and corresponding to the “Code 128” on the tube body. The 2D code is automatically generated from the linear barcode during the manufacturing process. Permanet laser etching system. Strict quality control, every tube is checked to ensure they meet our exacting standards of readings. The insert is secured in placeby the use of ultrasound to weld into place.

• Use with automatic decapping equipment
• Use with Vial picker
• Use with Color coded inserts for quick sample identification

Clear printed graduation for accurate measurement

The base of the tube is provided with channels of evacuation of the cryogenic liquid that could possibly trapped between the base of the tube and the 2D pad.

• Test report IATA PI650 CryoGen® Tubes CLEARLine® tubes can be used as primary container for biological samples transport in conformity with packaging Instruction PI650 of the IATA regulations.
• Extractable study on CryoGen® Tubes The extractable study performed demonstrates that the analysed vials does nor release significant amount of inorganic elements and/or organic substances in ethanol.
• Mutagenicity test ? Ames test Under the experimental conditions CryoGen® Tubes CLEARLine® CLEARLine® didn?t showed any genetic mutations on the particular bacterial strain used
• Validation of packaging system The integrity of the product and the packaging is resulted compliant after an accelerated aging of 5 years.

• Check that there are no holes, deformation or burrs on both cap and tube
• Serigraphy resistance
• Verification of the correct reading of the bar code
• Verification that the matrix corresponds to the bar code for the 2D CryoGen® Tubes

Leak test, performed with the FORTEST ET99M-VOL to verify that the pressure charge is less than 0,2 mbar, as set.

CE-IVD marked according to the directive on in vitro diagnostic medical devices 98/79/EC – other devices.

Ordering Information

Documents

• Technical datasheet – CL2ARBEPS2D, CL2ARBEPS2D/B, CL2ARBIPS2D, CL2ARBIPS2D/B, CL5ARBEPS2D, CL5ARBEPS2D/B, CL5ARBIPS2D, CL5ARBIPS2D/B
