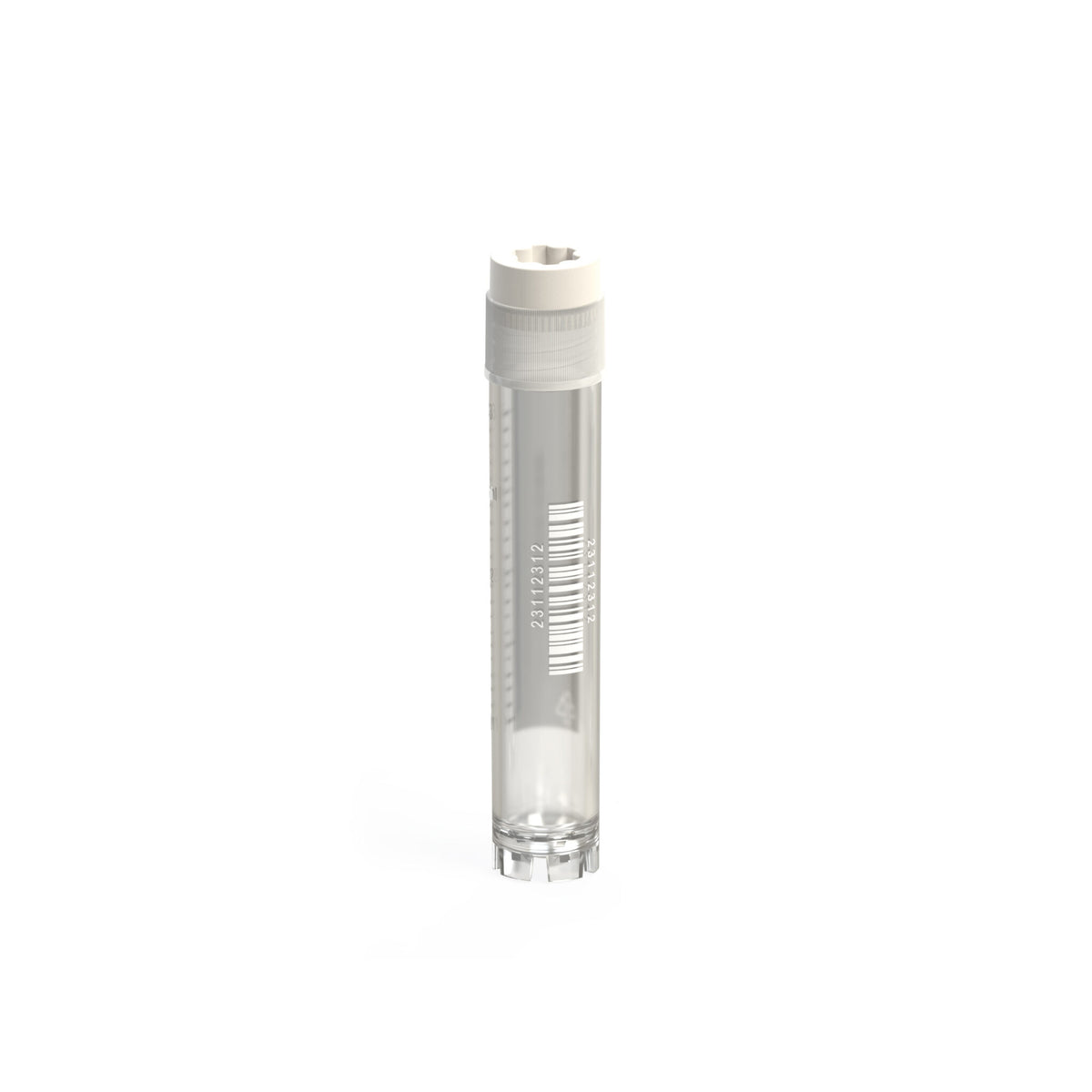

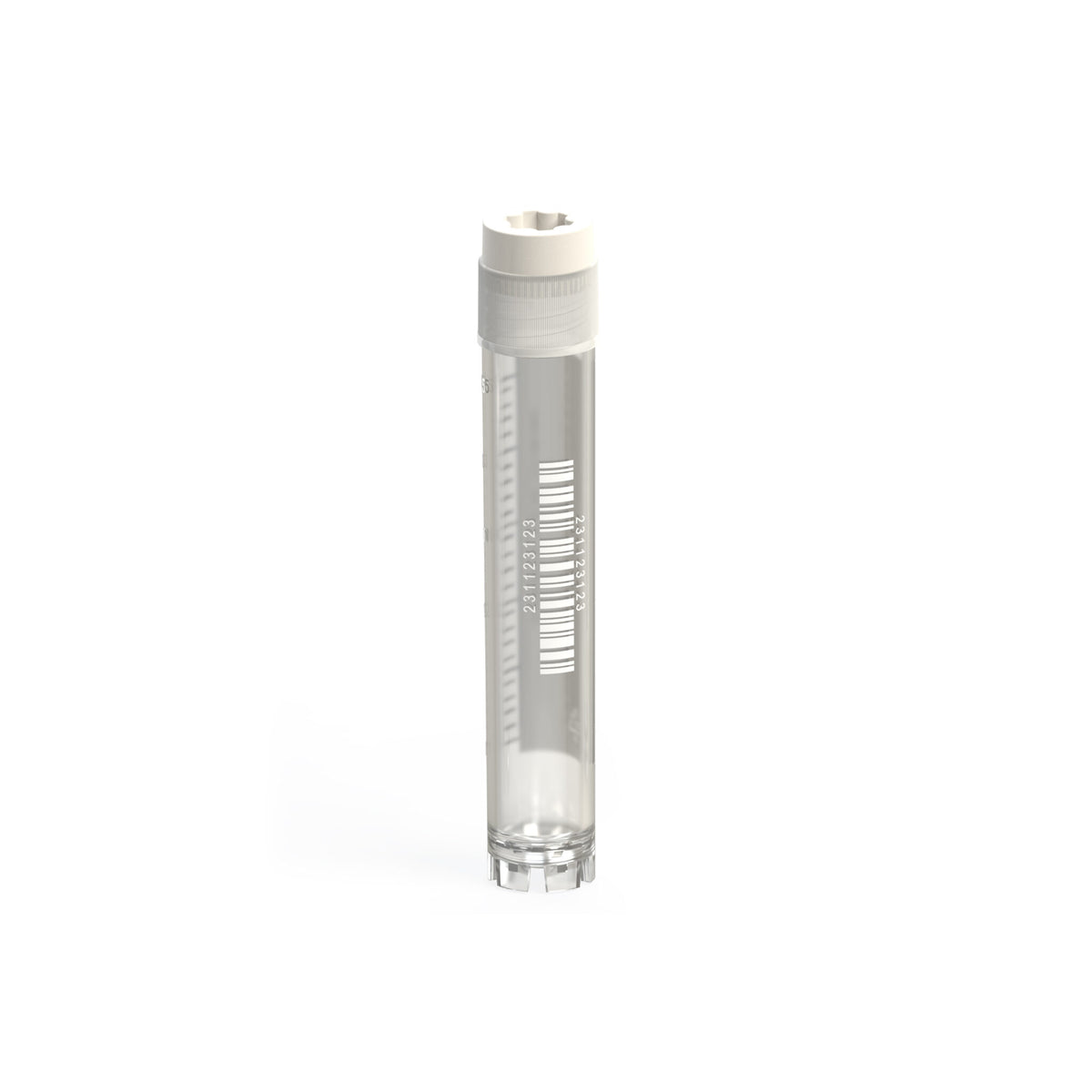

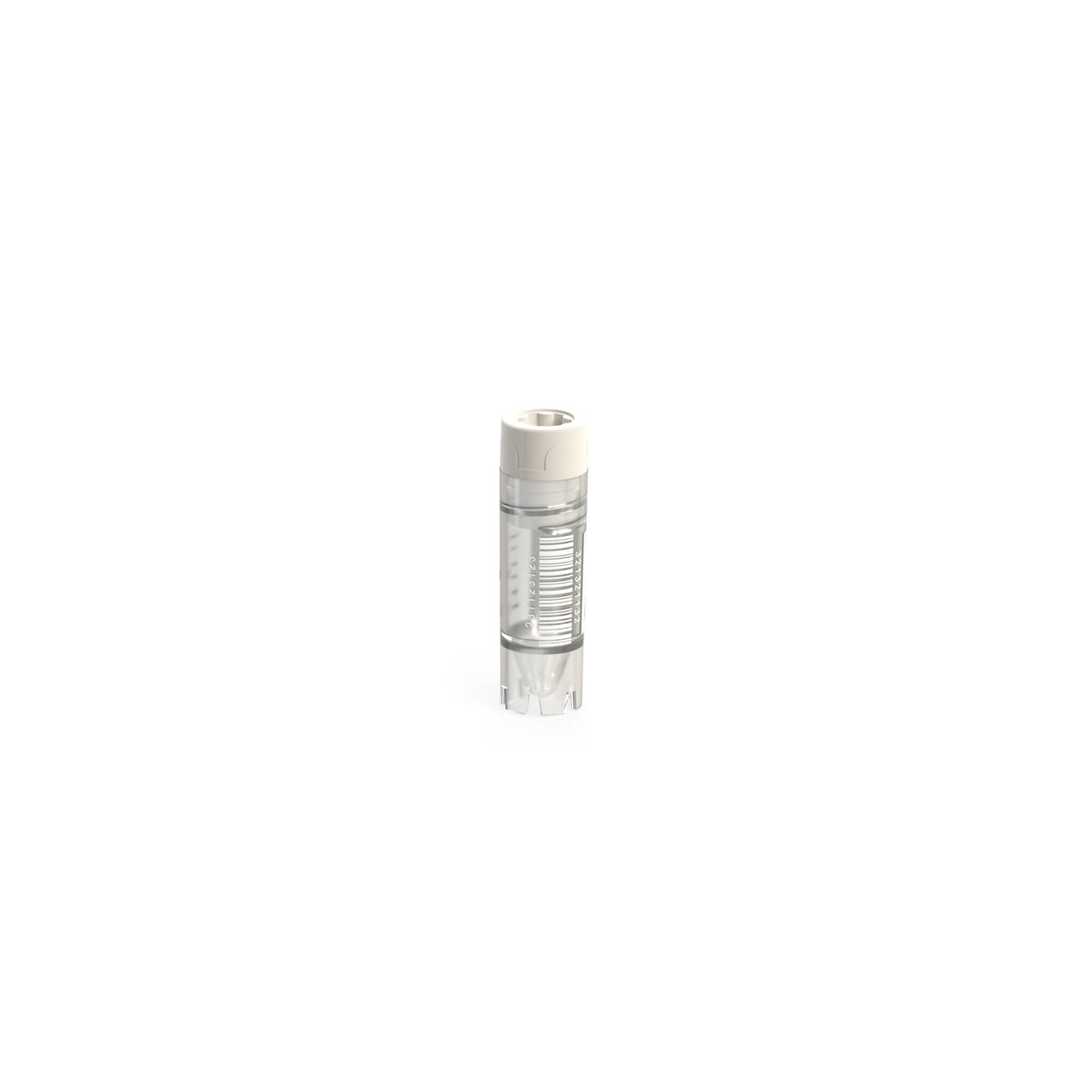

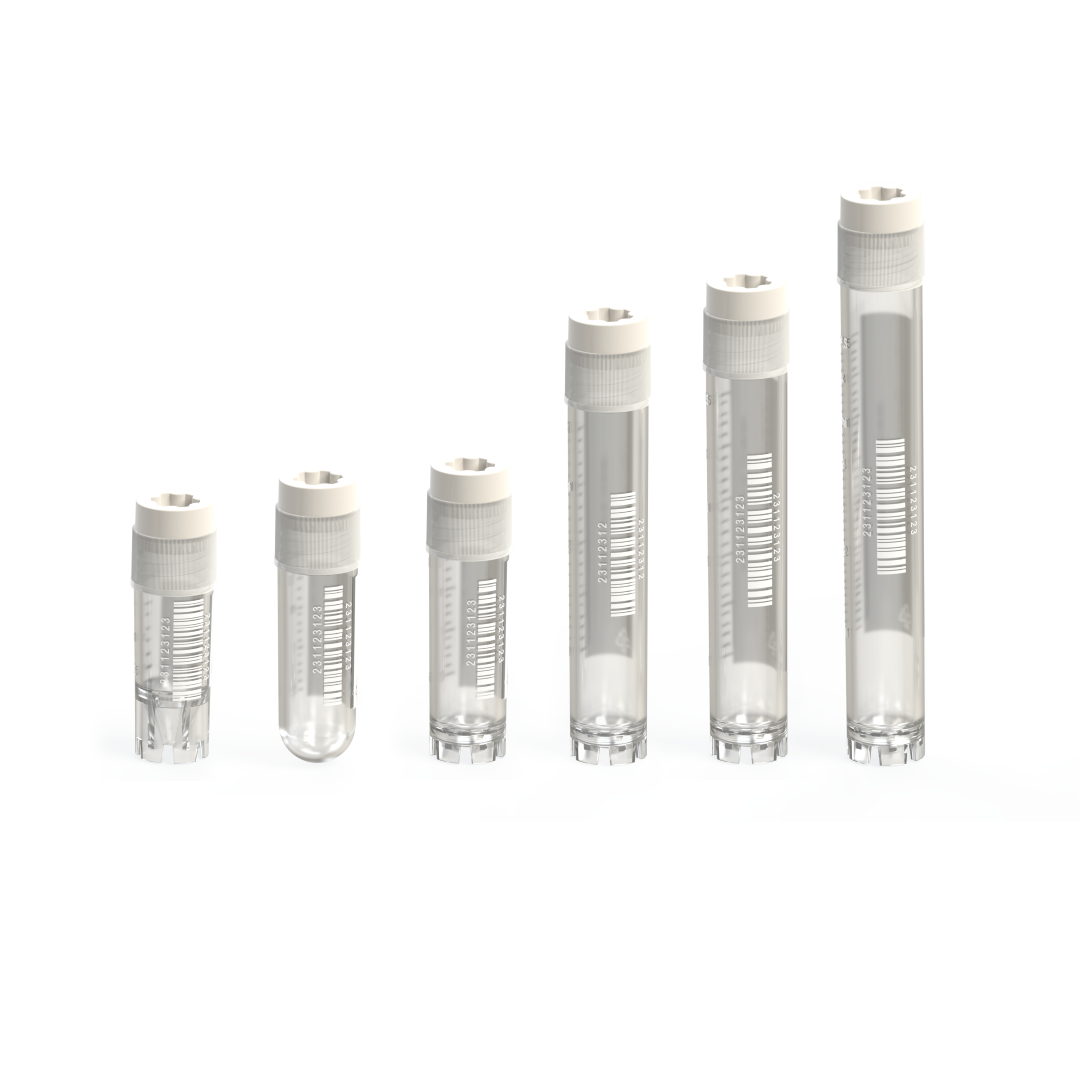

CryoGen® 1D Barcoded Cryotubes CLEARLine® (CL1ARBEPSTS)

CryoGen® 1D Barcoded Cryotubes CLEARLine®

Vendor: Biosigma

SKU: CL1ARBEPSTS

0.00 NIS

Quote Required

In stock

CLEARLine® 1D CryoGen® tubes are designed for the safe storage and traceability of biological samples in cryogenic conditions. Each tube features a unique and consecutive 1D barcode printed directly on the body, allowing efficient sample identification and compatibility with automated laboratory workflows.

The innovative bi-injected screw cap integrates a rubber sealing element directly into the cap during molding, preventing leakage and eliminating contamination risks. This design ensures secure closure and reliable performance even in demanding storage and transport conditions.

Manufactured from premium-quality virgin, medical-grade PP/PE, and free from biocides, plasticizers, and latex. Produced with optimized, high-gloss polished moulds, without incorporating slip additives such as oleamide, erucamide, or stearamide. Product made without intentional addition of PFAS during the production process.

The tubes are non-cytotoxic, non-hemolytic and free from heavy metals and animal-derived components. Raw materials comply with USP Class VI and ISO 10993 standards, ensuring biocompatibility.

The tubes are suitable for storage from standard refrigeration conditions (+4°C) down to the vapor phase of liquid nitrogen, supporting cryogenic applications up to -196°C. They are autoclavable at 121°C for 20 minutes and compatible with high-speed centrifugation up to 19,000 x g (14,000 rpm).

Designed for practicality, they include a writing area and printed graduations, and are compatible with automated capping systems. CLEARLine® cryotubes are sterilized (SAL 10⁻⁶) and certified free from human DNA, DNase, RNase, ATP, pyrogens and PCR inhibitors, making them suitable for sensitive molecular biology applications.

Features

Product made without intentional addition of PFAS during the production process
CLEARLine^®certificated Human DNA, PCR Inhibitor, DNase, RNase, Pyrogen, ATP free
Metal free
Sterile beta-ray SAL10^-6
Medical grade raw materials
Linear Barcode 128, unique and consecutive, printed on each vial
Bi-injected screw cap eliminates leakage and contamination
Star shaped top cavity for use with automatic decapper, manual vial picker and coloured cap disk
Writing area and printed graduations for accurate measurements
Autoclavable at 121°C steam for 20 minutes
Centrifuged at: 14.000 rpm – 19.000 xg
Designed for cryogenic storage of biological samples at temperatures down to -196 ° C
Fast cap screwing with only one hand
Locking base features prevents tubes rotating within the rack/workstation during capping and decapping

Applications

Biobanking and Cryobanking
Biotech and Pharmaceuticals
Blood and Tissue banks
Cryogenic storage and transport of biological specimens at temperatures as low as -196°C
Food industry
Ideal for biobanking and R&D Labs
Laboratories and Research

Product Information

CLEARLine® is synonymous of purity, clean and safety:

CryoGen® Tubes CLEARLine® are certified completely free of human DNA, PCR inhibitors, DNase, RNase, Pyrogens, ATP by our internal laboratory. To download lot-specific certificate see the section certificate on the web site.

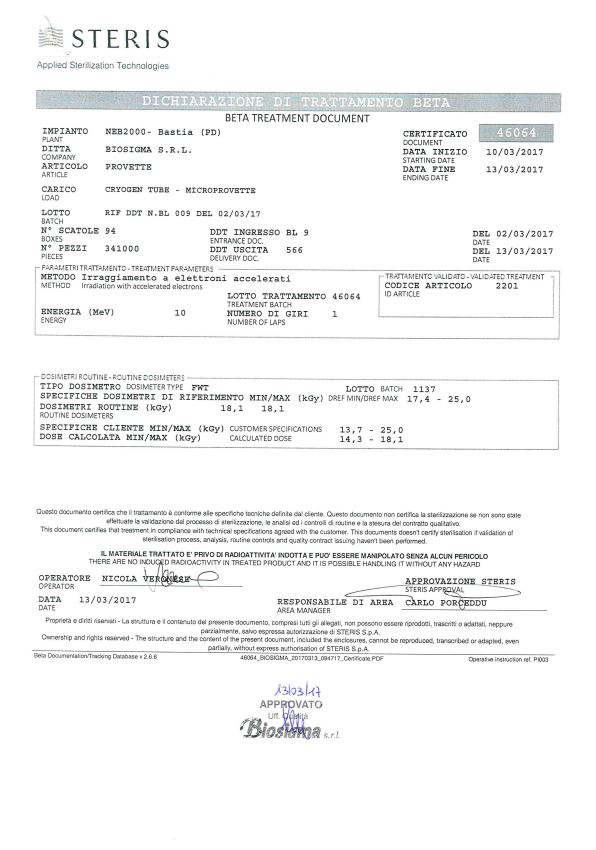

CryoGen® Tubes CLEARLine® certified as STERILE were treated with a validated method to provide a Sterility Assurance Level (SAL) of 10^-6. To download lot-specific certificate see the section certificate on the web site.

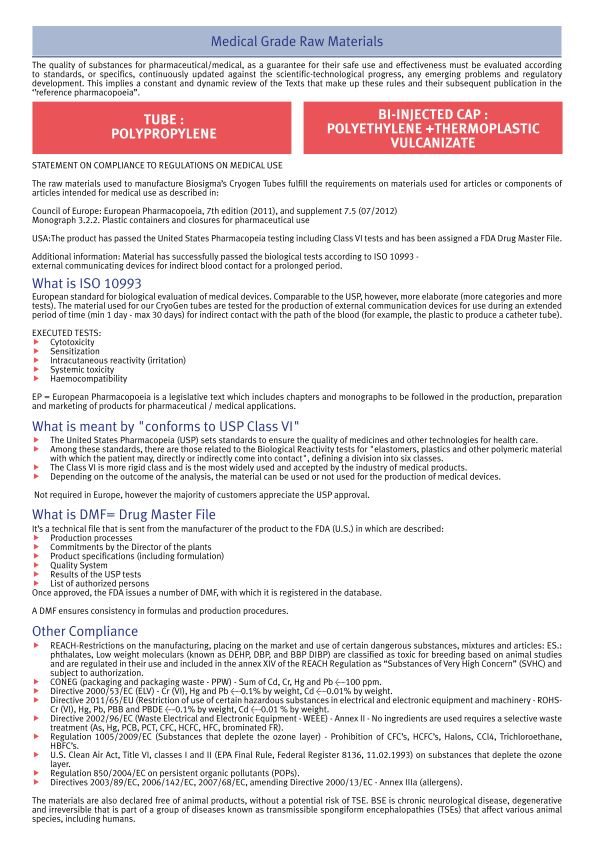

Medical grade raw materials: CryoGen^® Tubes CLEARLine® are produced from medical grade raw materials that will not discolor after re-sterilizing. Medical grade raw materials are certified USP Class VI, in accordance with United States Pharmacopeia and ISO 10993. Non Cytotoxic – Non Hemolytic Cryotubes – Heavy metals free – Ingredients of animal origin free • The material has passed the United States Pharmacopeia testing including Class VI tests • Material has successfully passed the biological tests according to ISO 10993 external communicating devices for indirect blood contact for a prolonged period Test tube in medical polypropylene and cap in medical polyethylene/rubber. The combination of polyethylene stopper and test tube in polypropylene, makes screwing easier avoiding the grip effect caused by the use of the same raw material for both components.

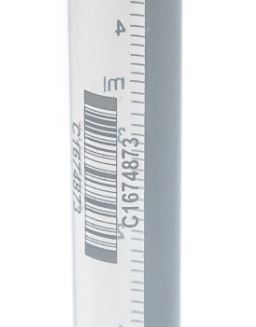

Barcode 128:

Standard code 128 barcode printed on tubes’ body:

serial-consecutive
unique
human readable characters printed in both left and right hand orientation for easy readability by all users.

Bi-injected screw cap: Our innovative screw caps eliminate leakage and contamination. Both internal and external screw caps are co-molded with a thermoplastic elastomer (TPV) layer and are 95kPa certified to provide a 100% leak-proof seal. This proprietary molding process eliminates the risk of contamination associated with brands that use separate o-rings.

Star Shape Screw cap: Star shaped top cavity is engineered for:

Use with automatic decapping equipment
Use with Vial picker
Use with Color coded inserts for quick sample identification

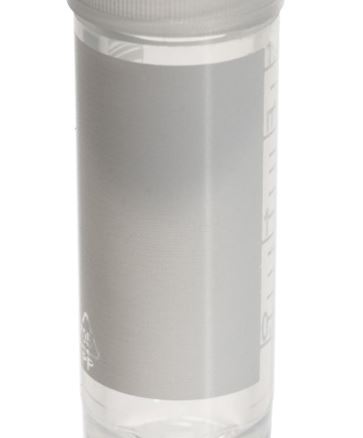

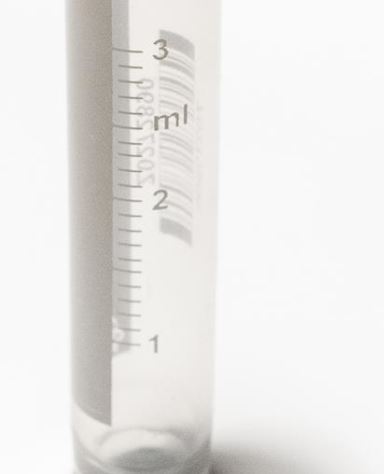

Graduation and writing surface: Clear printed graduation for accurate measurement Wide white writing surface for specimen identification

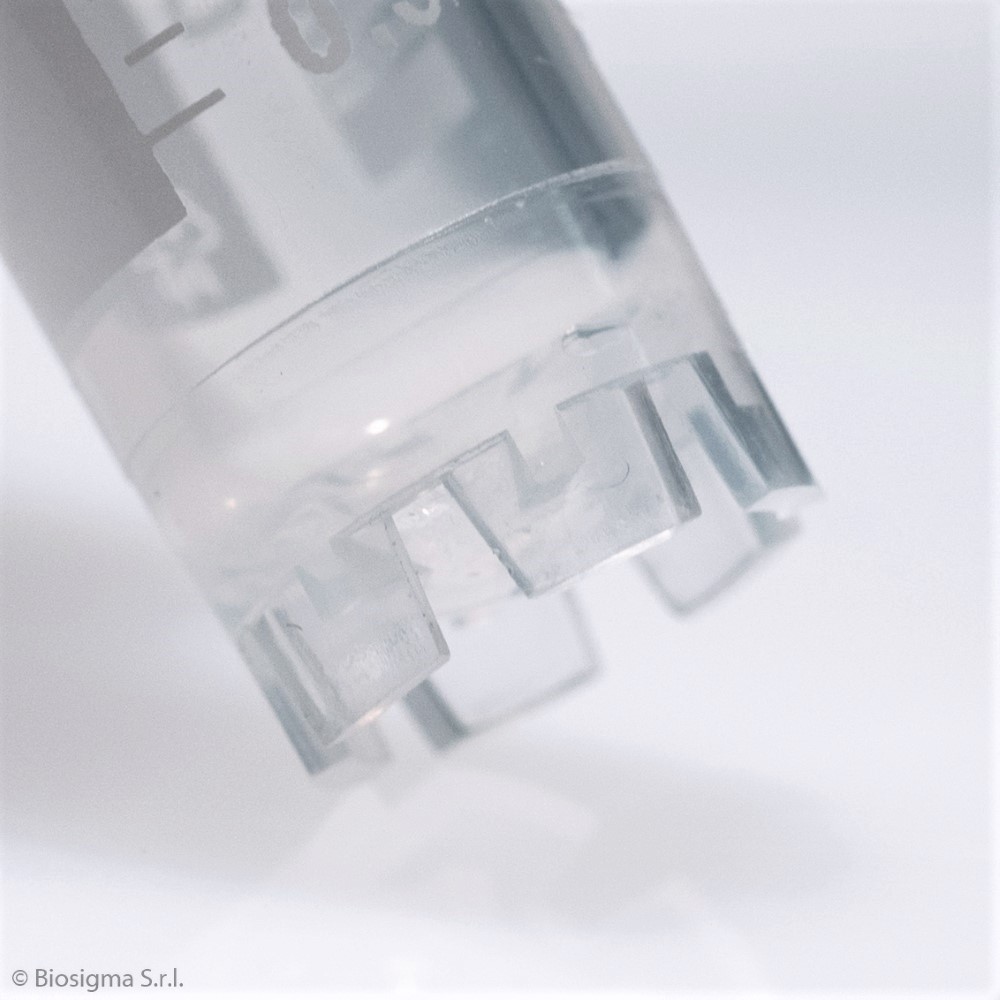

Round or self-standing bottom: Self-standing vials interlock in workstations. Locking base features prevents tubes rotating within the rack/workstation during capping and decapping.

Tests performed on CryoGen® Tubes CLEARLine®:

Test report IATA PI650 CryoGen® Tubes CLEARLine® tubes can be used as primary container for biological samples transport in conformity with packaging Instruction PI650 of the IATA regulations.

Extractable study on CryoGen® Tubes The extractable study performed demonstrates that the analysed vials does nor release significant amount of inorganic elements and/or organic substances in ethanol.

Mutagenicity test – Ames test Under the experimental conditions CryoGen® Tubes CLEARLine® CLEARLine® didn’t showed any genetic mutations on the particular bacterial strain used.

Validation of packaging system The integrity of the product and the packaging is resulted compliant after an accelerated aging of 5 years.

Quality controls on CryoGen® Tubes CLEARLine®: During the production phase, visual checks and mechanical tests are performed to ensure that there are no defects (scarcity, streaks, cracks) such as:

Check that there are no holes, deformation or burrs on both cap and tube
Serigraphy resistance
Verification of the correct reading of the bar code
Verification that the matrix corresponds to the bar code for the 2D CryoGen® Tubes

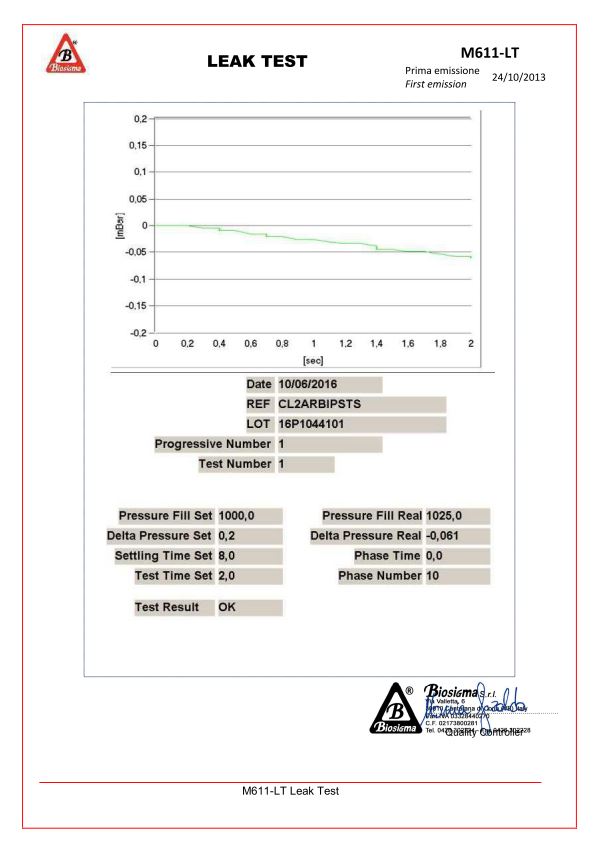

Leak test, performed with the FORTEST ET99M-VOL to verify that the pressure charge is less than 0,2 mbar, as set.

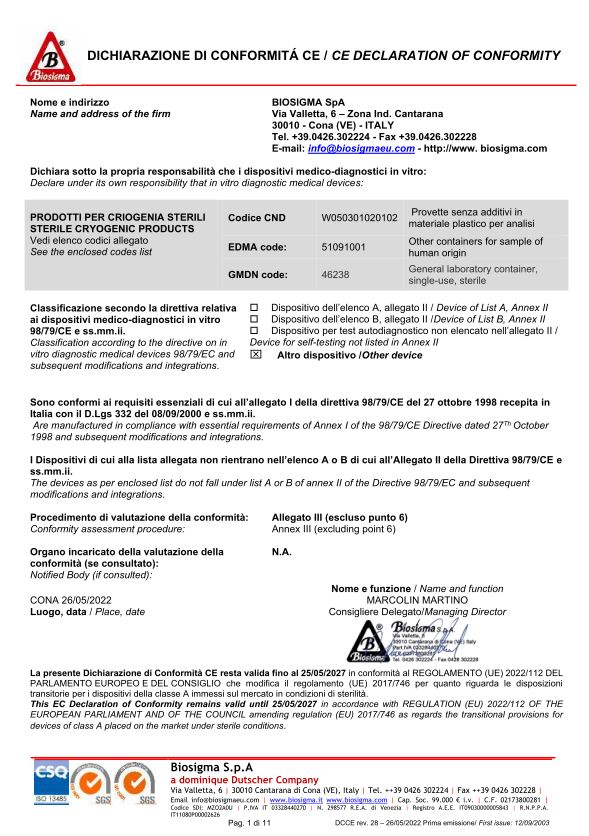

CE-IVD marked according to the directive on in vitro diagnostic medical devices 98/79/EC – other devices.

Ordering Information

Cat. No.	Volume	Cap & bottom	Pack	Description	Sale unit

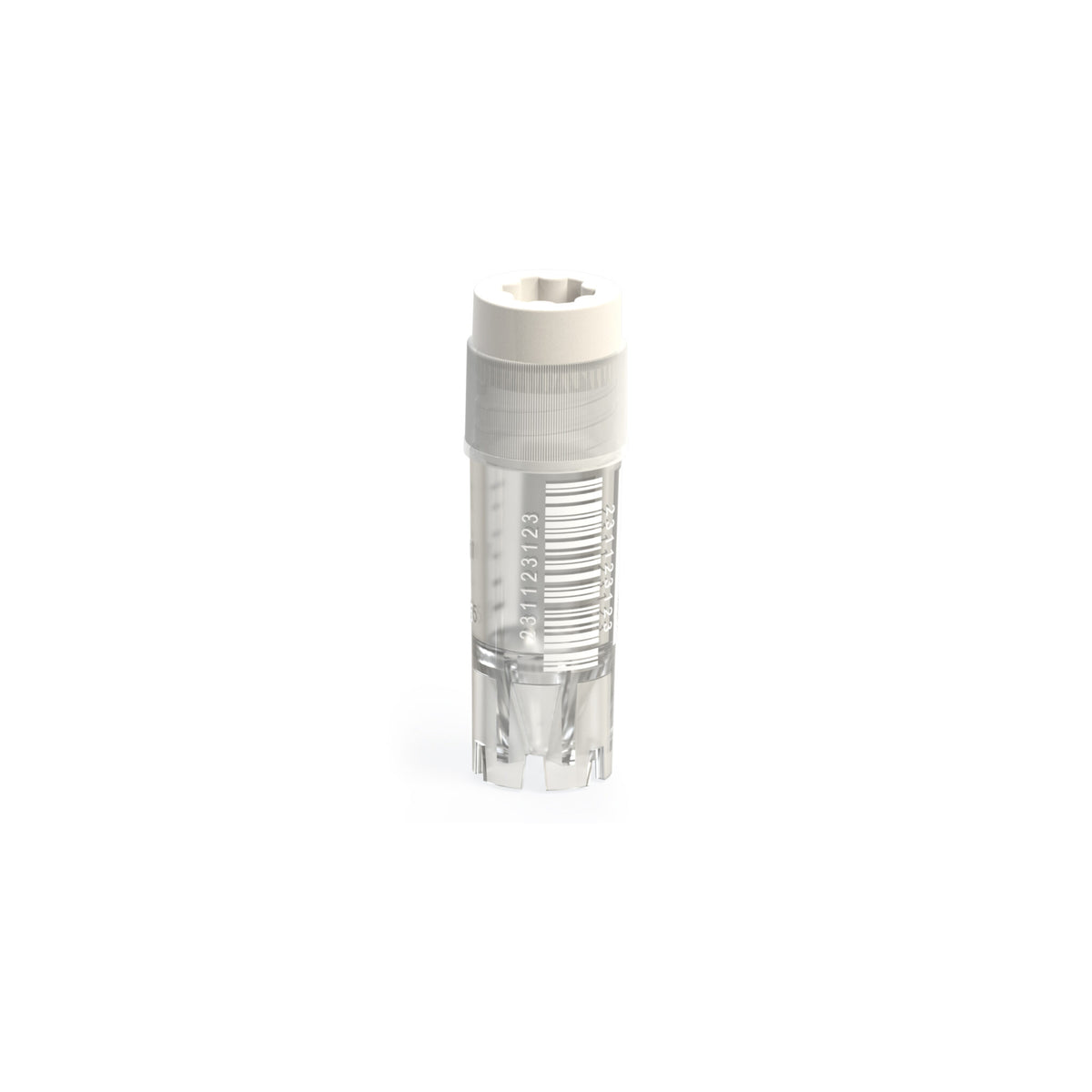

CL1ARBEPSTS	1.2 mL	External thread, self-standing	Case of 500	Barcoded Cryotube 1,2 ml, external thread cap, skirted, sterile, graduated, writing area, CLEARLINE ® , Barcode Code 128. Dimensions: H 41.25 ± 0.34 mm Ø 12.6 ± 0.13 mm, 10 bags of 50 pcs. each.	500
CL1ARBEPSTS/B	1.2 mL	External thread, self-standing	Bulk	Barcoded Cryotube 1,2 ml, external thread cap, skirted, sterile, graduated, writing area, CLEARLINE ® , Barcode Code 128. Dimensions: H 41.25 ± 0.34 mm Ø 12.6 ± 0.13 mm, 90 bags of 50 pcs. each.	4500
CL1ARBIPSTS	1.2 mL	Internal thread, self-standing	Case of 500	Barcoded Cryotube 1,2 ml, internal thread cap, skirted, sterile, graduated, writing area, CLEARLINE ® . Barcode Code 128. Dimensions: H 42.50 ± 0.34 mm - Ø 12.6 ± 0.13 mm, 10 bags of 50 pcs. each.	500
CL1ARBIPSTS/B	1.2 mL	Internal thread, self-standing	Bulk	Barcoded Cryotube 1,2 ml, internal thread cap, skirted, sterile, graduated, writing area, CLEARLINE ® , Barcode Code 128 Dimensions: H 42.50 ± 0.34 mm - Ø 12.6 ± 0.13 mm, 90 bags of 50 pcs. each.	4500

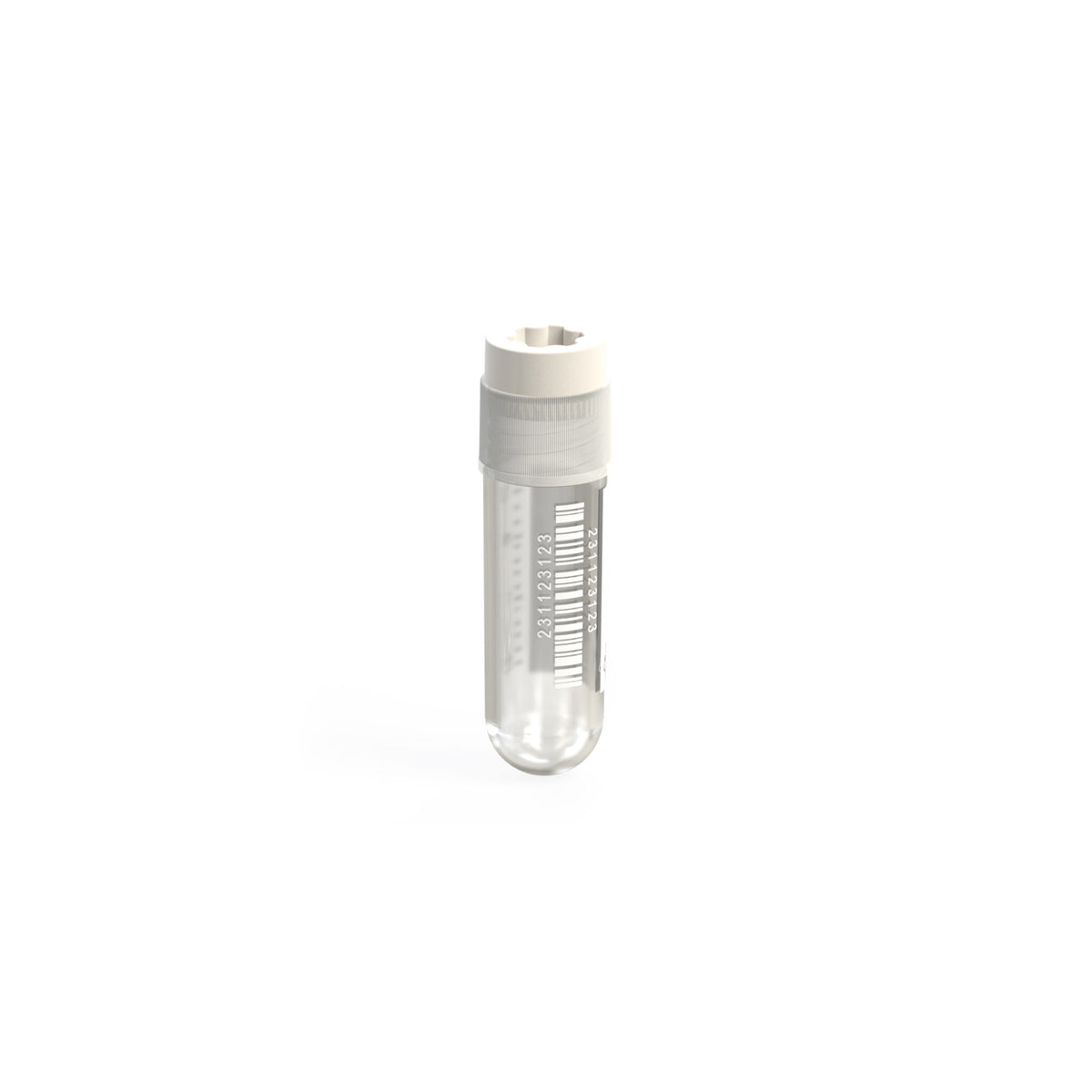

CL2AREPSTS	2 mL	External thread, round bottom	Case of 500	Barcoded Cryotube 2 ml, external thread cap, round bottom, sterile, graduated, writing area, CLEARLINE ® . Barcode Code 128 Dimensions: H 45.90 ± 0.34 mm Ø 12.6 ± 0.13 mm, 10 bags of 50 pcs. each.	500
CL2AREPSTS/B	2 mL	External thread, round bottom	Bulk	Barcoded Cryotube 2 ml, external thread cap, round bottom, sterile, graduated, writing area, CLEARLINE ® . Barcode Code 128 Dimensions: H 45.90 ± 0.34 mm Ø 12.6 ± 0.13 mm, 80 bags of 50 pcs. each.	4000

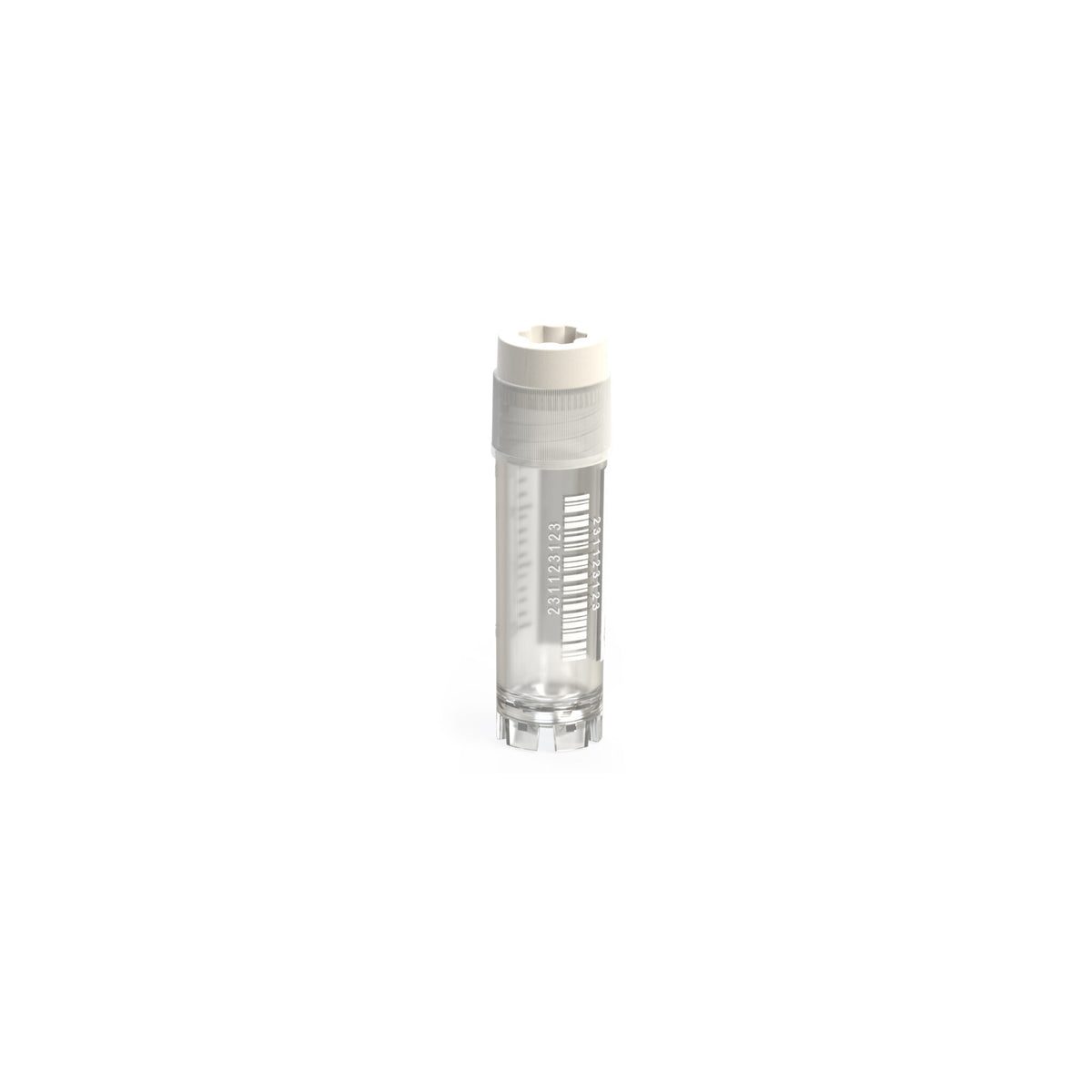

CL2ARBEPSTS	2 mL	External thread, self-standing	Case of 500	Barcoded Cryotube 2 ml, external thread cap, skirted, sterile, graduated, writing area, CLEARLINE ® , Barcode Code 128. Dimensions: H 46.85 ± 034 mm Ø 12.6 ± 0.13 mm, 10 bags of 50 pcs. each.	500
CL2ARBEPSTS/B	2 mL	External thread, self-standing	Bulk	Barcoded Cryotube 2 ml, external thread cap, skirted, sterile, graduated, writing area, CLEARLINE ® , Barcode Code 128 Dimensions: H 46.85 ± 034 mm Ø 12.6 ± 0.13 mm, 80 bags of 50 pcs. each.	4000

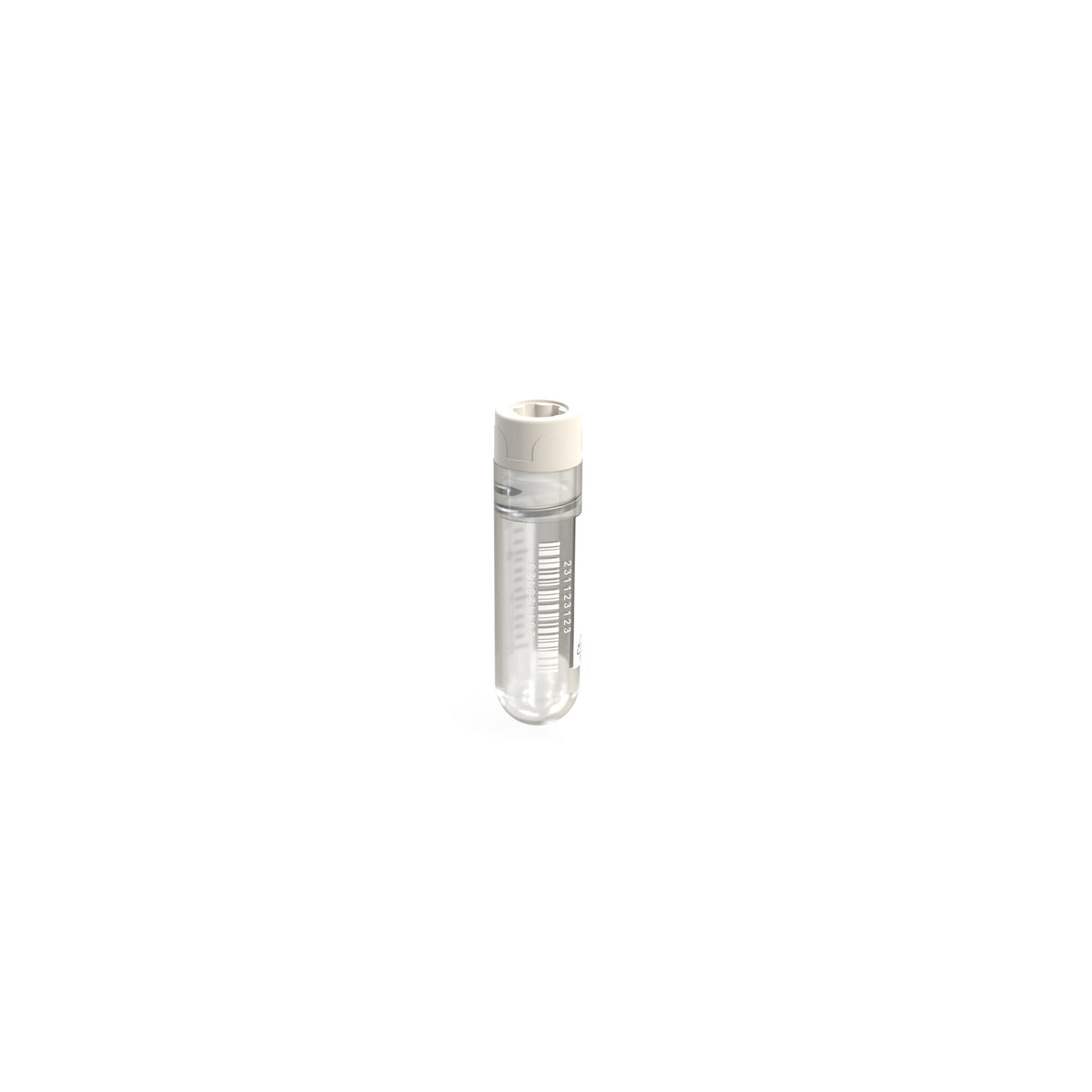

CL2ARIPSTS	2 mL	Internal thread, round bottom	Case of 500	Barcoded Cryotube 2 ml, internal thread cap, round bottom, sterile, graduated, writing area, CLEARLINE ® , Barcode Code 128. Dimensions: H 46.55 ± 0.34 mm Ø 12.6 ± 0.13 mm, 10 bags of 50 pcs. each.	500
CL2ARIPSTS/B	2 mL	Internal thread, round bottom	Bulk	Barcoded Cryotube 2 ml, internal thread cap, round bottom, sterile, graduated, writing area, CLEARLINE ® ,Barcode Code 128. Dimensions: H 46.55 ± 0.34 mm Ø 12.6 ± 0.13 mm, 80 bags of 50 pcs. each.	4000

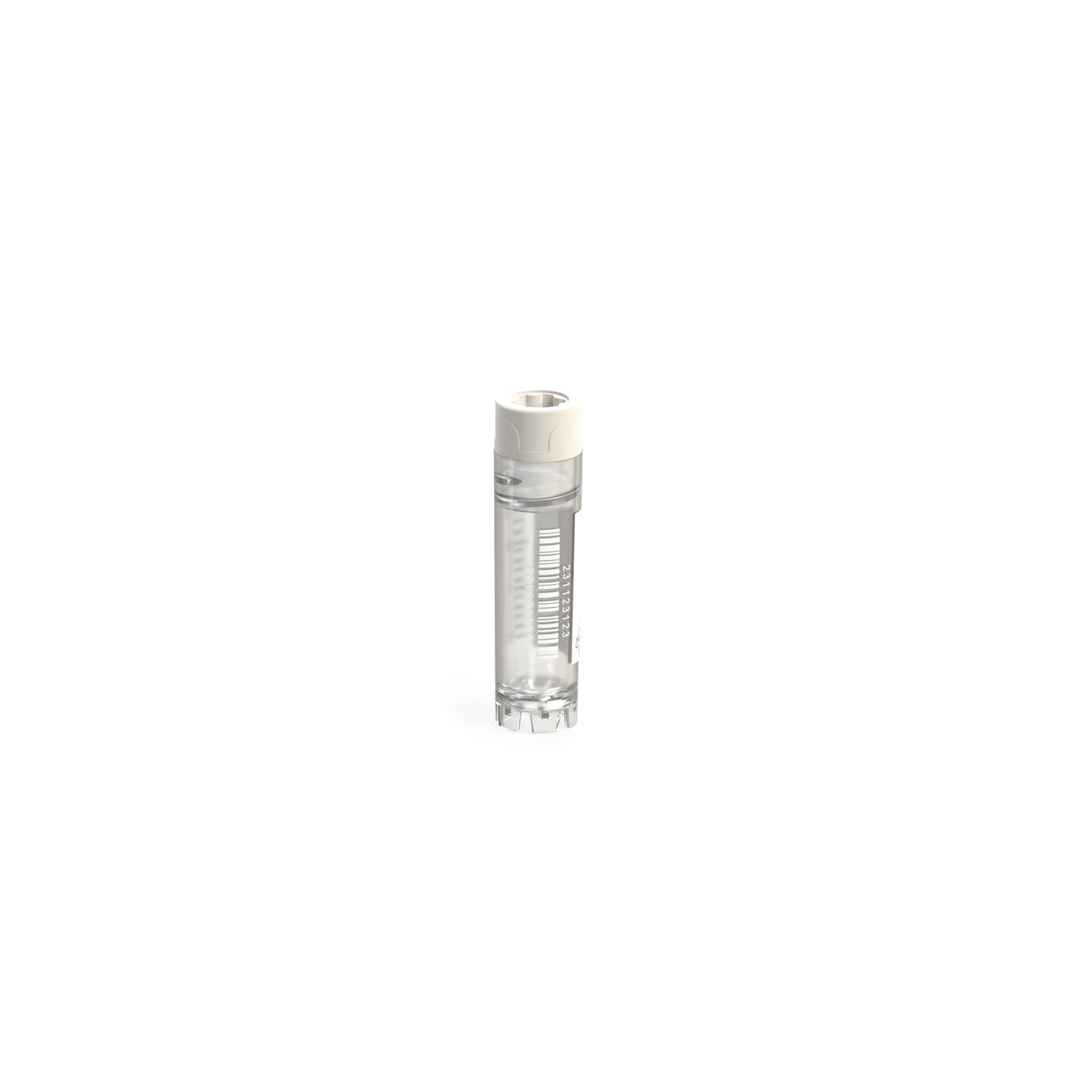

CL2ARBIPSTS	2 mL	Internal thread, self-standing	Case of 500	Barcoded Cryotube 2 ml, internal thread cap, skirted, sterile, graduated, writing area, CLEARLINE ® , Barcode Code 128. Dimensions: H 47.70 ± 0.34 mm Ø 12.6 ± 0.13 mm, 10 bags of 50 pcs. each.	500
CL2ARBIPSTS/B	2 mL	Internal thread, self-standing	Bulk	Barcoded Cryotube 2 ml, internal thread cap, skirted, sterile, graduated, writing area, CLEARLINE ® , Barcode Code 128. Dimensions: H 47.70 ± 0.34 mm Ø 12.6 ± 0.13 mm, 80 bags of 50 pcs. each.	4000
CL3ARBEPSTS	3 mL	External thread, self-standing	Case of 500	Barcoded Cryotube 3 ml, external thread cap, skirted, sterile, graduated, writing area, CLEARLINE ® , Barcode Code 128 Dimensions: H 70.65 ± 0.44 mm Ø 12.6 ± 0.13 mm, 10 bags of 50 pcs. each.	500
CL3ARBEPSTS/B	3 mL	External thread, self-standing	Bulk	Barcoded Cryotube 3 ml, external thread cap, skirted, sterile, graduated, writing area, CLEARLINE ® . Barcode Code 128 Dimensions: H 70.65 ± 0.44 mm Ø 12.6 ± 0.13 mm, 50 bags of 50 pcs. each.	2500
CL4ARBEPSTS	4 mL	External thread, self-standing	Case of 500	Barcoded Cryotube 4 ml, external thread cap, skirted, sterile, graduated, writing area, CLEARLINE ® . Barcode Code 128 Dimensions: H 75.45 ± 0.44 mm Ø 12.6 ± 0.13 mm, 10 bags of 50 pcs. each.	500
CL4ARBEPSTS/B	4 mL	External thread, self-standing	Bulk	Barcoded Cryotube 4 ml, external thread cap, skirted, sterile, graduated, writing area, CLEARLINE ® . Barcode Code 128 Dimensions: H 75.45 ± 0.44 mm Ø 12.6 ± 0.13 mm, 50 bags of 50 pcs. each.	2500

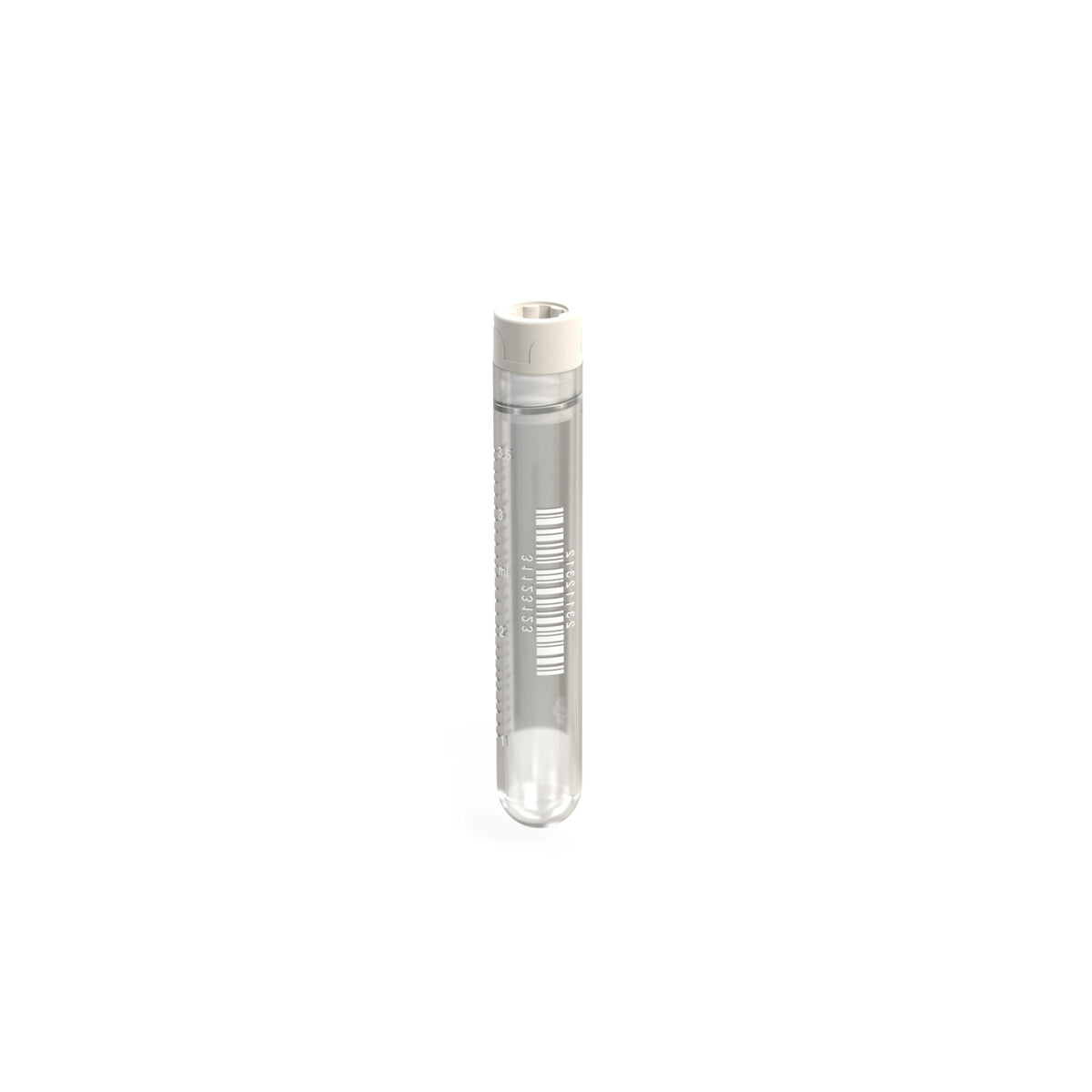

CL4ARIPSTS	4 mL	Internal thread, round bottom	Case of 500	Barcoded Cryotube 4 ml, internal thread cap, round bottom, sterile, graduated, writing area, CLEARLINE ® , Barcode Code 128. Dimensions: H 75.55 ± 0.44 mm Ø 12.6 ± 0.13 mm, 10 bags of 50 pcs. each.	500
CL4ARIPSTS/B	4 mL	Internal thread, round bottom	Bulk	Barcoded Cryotube 4 ml, internal thread cap, round bottom, sterile, graduated, writing area, CLEARLINE ® , Barcode Code 128. Dimensions: H 75.55 ± 0.44 mm Ø 12.6 ± 0.13 mm, 50 bags of 50 pcs. each.	2500

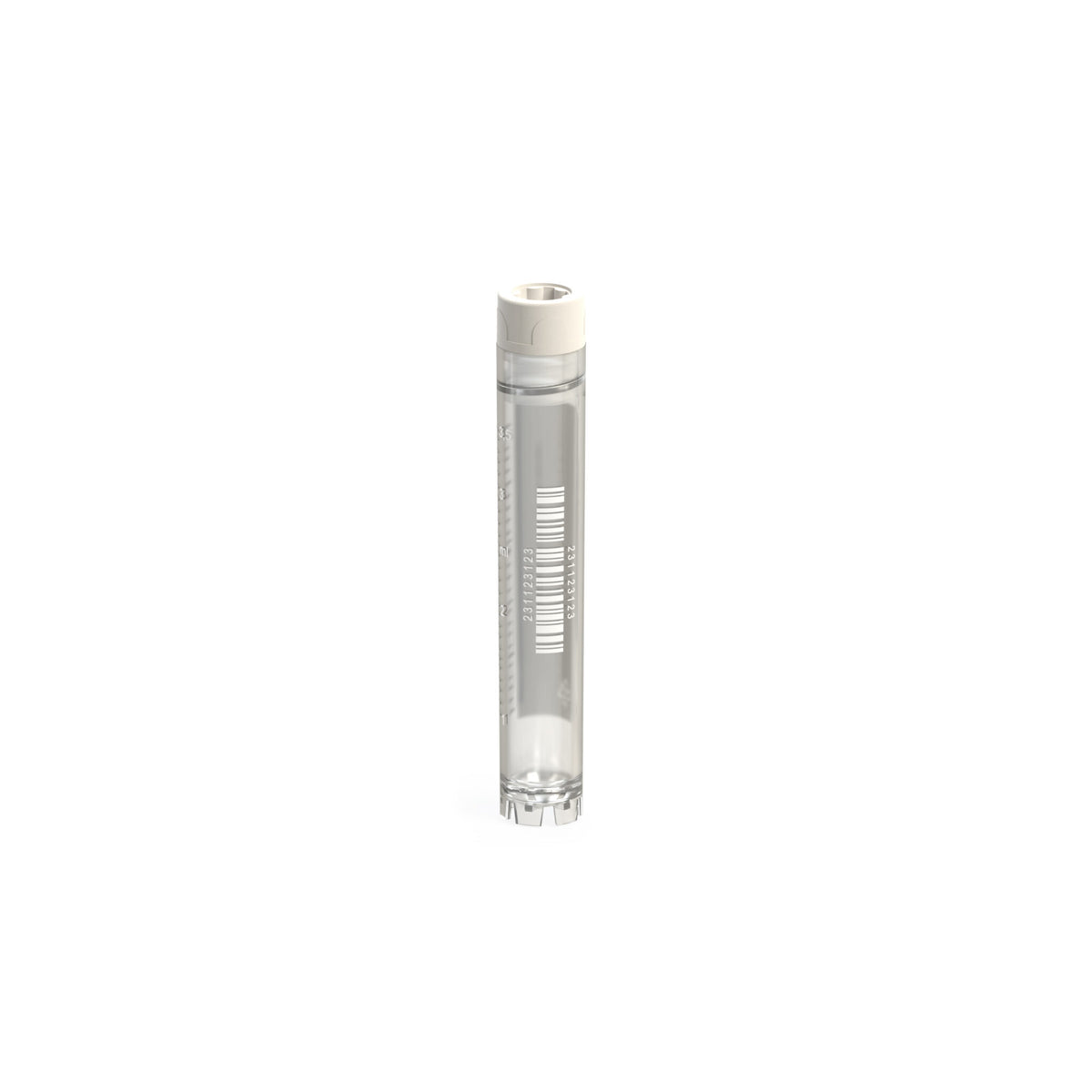

CL4ARBIPSTS	4 mL	Internal thread, self-standing	Case of 500	Barcoded Cryotube 4 ml, internal thread cap, skirted, sterile, graduated, writing area, CLEARLINE ® , Barcode Code 128. Dimensions: H 76.70 ± 0.44 mm Ø 12.6 ± 0.13 mm, 10 bags of 50 pcs. each.	500
CL4ARBIPSTS/B	4 mL	Internal thread, self-standing	Bulk	Barcoded Cryotube 4 ml, internal thread cap, skirted, sterile, graduated, writing area, CLEARLINE ® , Barcode Code 128. Dimensions: H 76.70 ± 0.44 mm Ø 12.6 ± 0.13 mm, 50 bags of 50 pcs. each.	2500
CL5ARBEPSTS	5 mL	External thread, self-standing	Case of 500	Barcoded Cryotube 5 ml, external thread cap, skirted, sterile, graduated, writing area, CLEARLINE ® . Barcode Code 128 Dimensions: H 89.25 ± 0.44 mm Ø 12.6 ± 0.13 mm, 10 bags of 50 pcs. each.	500
CL5ARBEPSTS/B	5 mL	External thread, self-standing	Bulk	Barcoded Cryotube 5 ml, external thread cap, skirted, sterile, graduated, writing area, CLEARLINE ® . Barcode Code 128 Dimensions: H 89.25 ± 0.44 mm Ø 12.6 ± 0.13 mm, 40 bags of 50 pcs. each.	2000

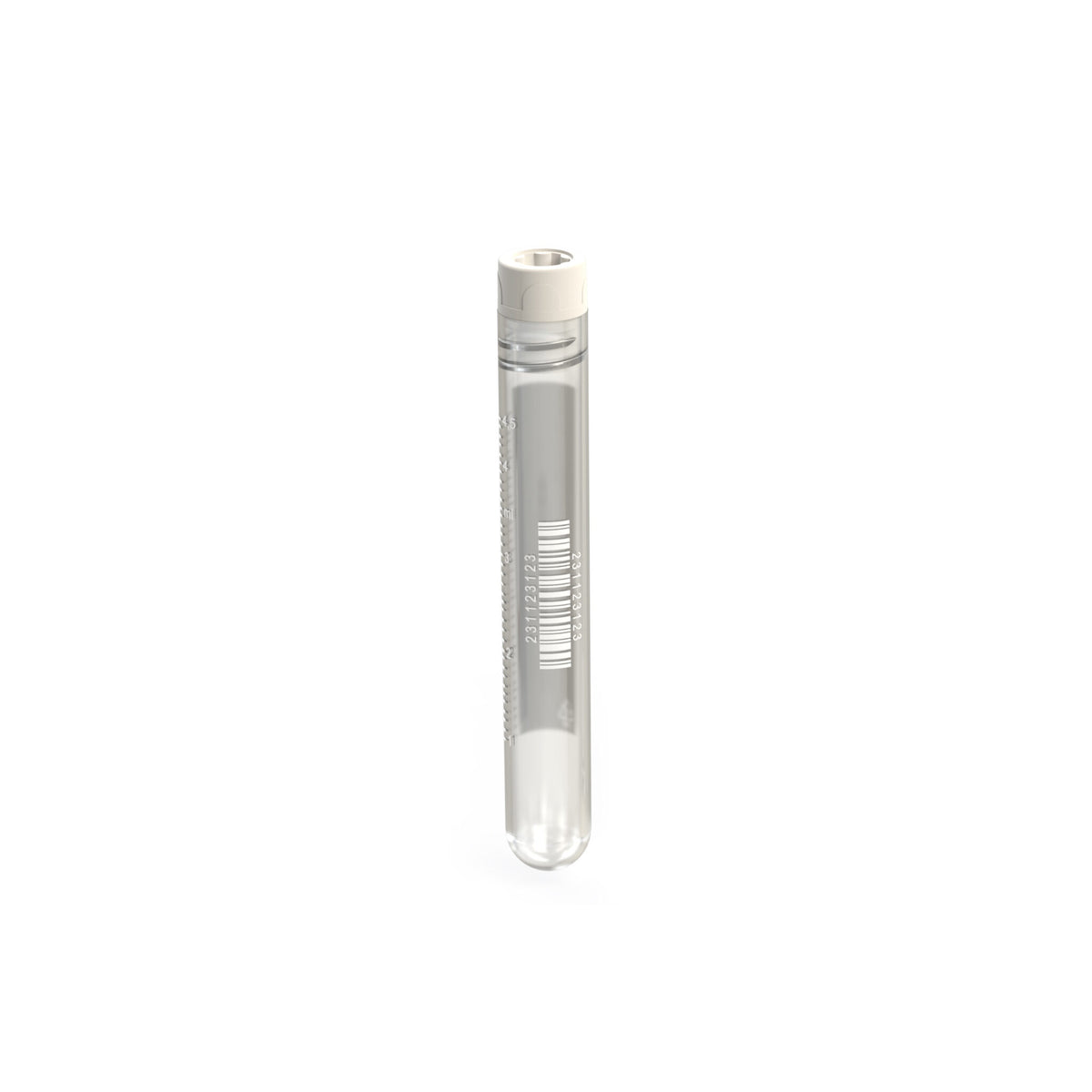

CL5ARIPSTS	5 mL	Internal thread, round bottom	Case of 500	Barcoded Cryotube 5 ml, internal thread cap, round bottom, sterile, graduated, writing area, CLEARLINE ® , Barcode Code 128. Dimensions: H 88.85 ± 0.44 mm Ø 12.6 ± 0.13 mm, 10 bags of 50 pcs. each.	500
CL5ARIPSTS/B	5 mL	Internal thread, round bottom	Bulk	Barcoded Cryotube 5 ml, internal thread cap, round bottom, sterile, graduated, writing area, CLEARLINE ® , Barcode Code 128. Dimensions: H 88.85 ± 0.44 mm Ø 12.6 ± 0.13 mm, 40 bags of 50 pcs. each.	2000

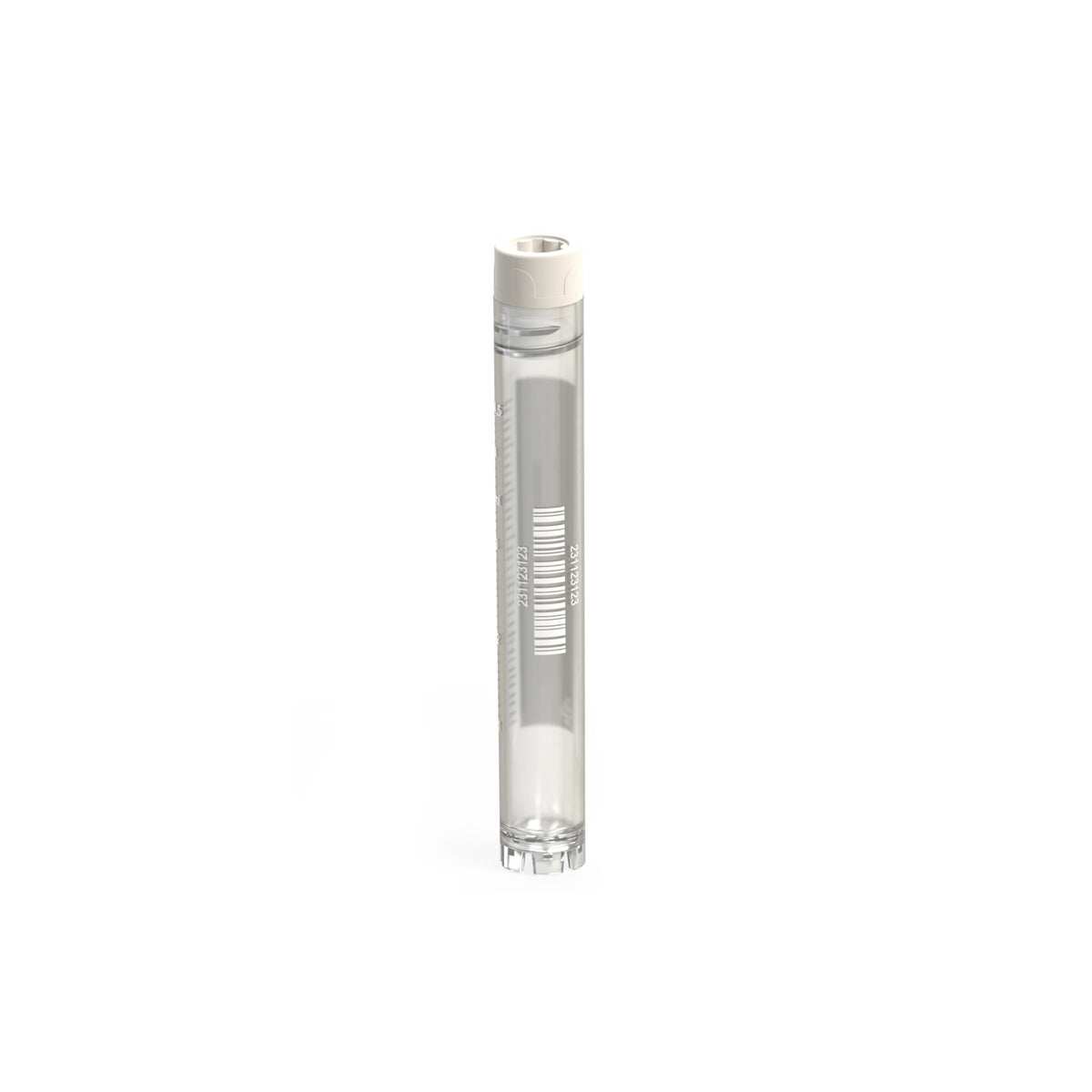

CL5ARBIPSTS	5 mL	Internal thread, self-standing	Case of 500	Barcoded Cryotube 5 ml, internal thread cap, skirted, sterile, graduated, writing area, CLEARLINE ® , Barcode Code 128. Dimensions: H 90 ± 0.44 mm Ø 12.6 ± 0.13 mm, 10 bags of 50 pcs. each.	500
CL5ARBIPSTS/B	5 mL	Internal thread, self-standing	Bulk	Barcoded Cryotube 5 ml, internal thread cap, skirted, sterile, graduated, writing area, CLEARLINE ® , Barcode Code 128. Dimensions: H 90 ± 0.44 mm Ø 12.6 ± 0.13 mm, 40 bags of 50 pcs. each.	2000

Documents

Specifications

Applications Biobanking and Cryobanking; Biotech and Pharmaceuticals; Blood and Tissue banks; Cryogenic storage and transport of biological specimens at temperatures as low as -196°C; Food industry; Ideal for biobanking and R&D Labs; Laboratories and Research
Country of origin Italy
Dimensions H 41.25 ± 0.34 mm / H 42.50 ± 0.34 mm - Ø 12.6 ± 0.13 mm / H 45.90 ± 0.34 mm / H 46.85 ± 034 mm / H 46.55 ± 0.34 mm / H 47.70 ± 0.34 mm / H 70.65 ± 0.44 mm / H 75.45 ± 0.44 mm / H 75.55 ± 0.44 mm / H 76.70 ± 0.44 mm / H 89.25 ± 0.44 mm / H 88.85 ± 0.44 mm / H 90 ± 0.44 mm
Pack size 500 / 2000 / 2500 / 4000 / 4500
Sterility Sterile
Sub category CryoGen® Tubes 1D CLEARLine®
Volume 1.2 mL / 2 mL / 3 mL / 4 mL / 5 mL
