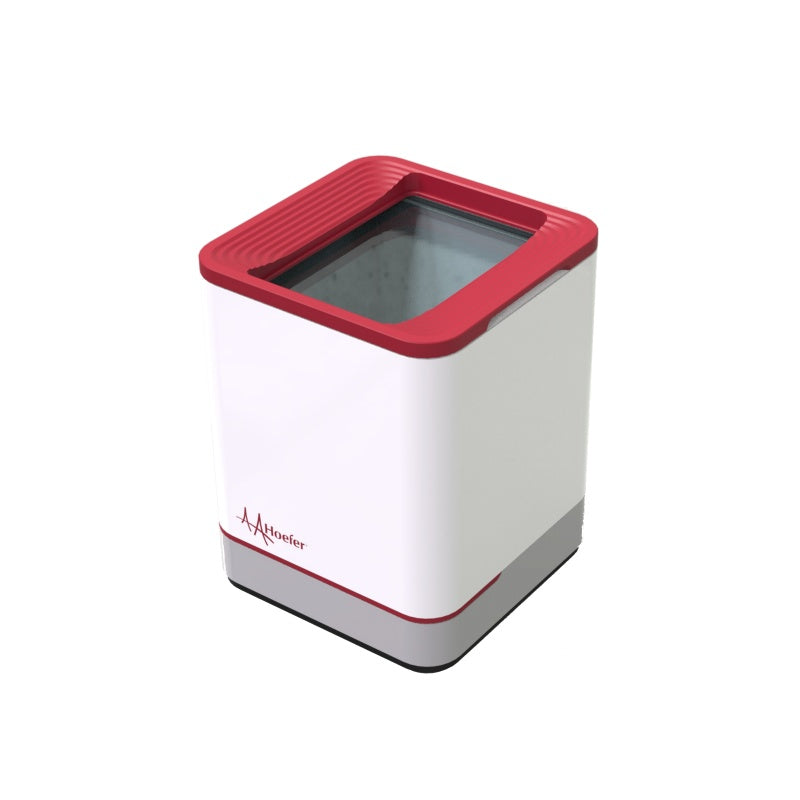

Hoefer Barcode Reader, combing a high-resolution, camera-based imaging system, providing a very effective reading of whole SBS rack tubes. With an integrated sample management software, it is an ideal tool for precise identification of 2D codes and sample traceability, can meet the requirements of sample storage of any lab.
Features and Benefits
Decode a whole rack of tubes in less than 1 second, capable of reading whole rack of tubes or a single tube
Direct USB power supply and data transfer via Type C or USB3.1 ports
Use with any 2D-coded tubes in SBS format rack, available for 24, 48, 96 and 240 format SBS racks
Data output choice with Excel, CSV, text, TCP/IP, ODBC, etc
Remote control via TCP/1P, allowing synchronized code-reading in multi-computers
Compact size, suitable for small workbench operation
High resolution camera, to provide clearer pictures and more accurate reads
Technical Parameters
Camera Resolution
12 MegaPixel
Linear Barcode Reader
Optional (70-4012)‒Plug directly into PC
Communication
Type C & USB
Decodable Formats
2D Data Matrix®, QR Codes, ISO 16022, Square and Rectangular Format, ECC 200,0-20 grid sizes, White on Black and Black on White, Numeric and Alphanumeric
Tube Formats
Almost all tubes in SBS format rack. Either 24, 48, 96, 240 or 384-formats.
