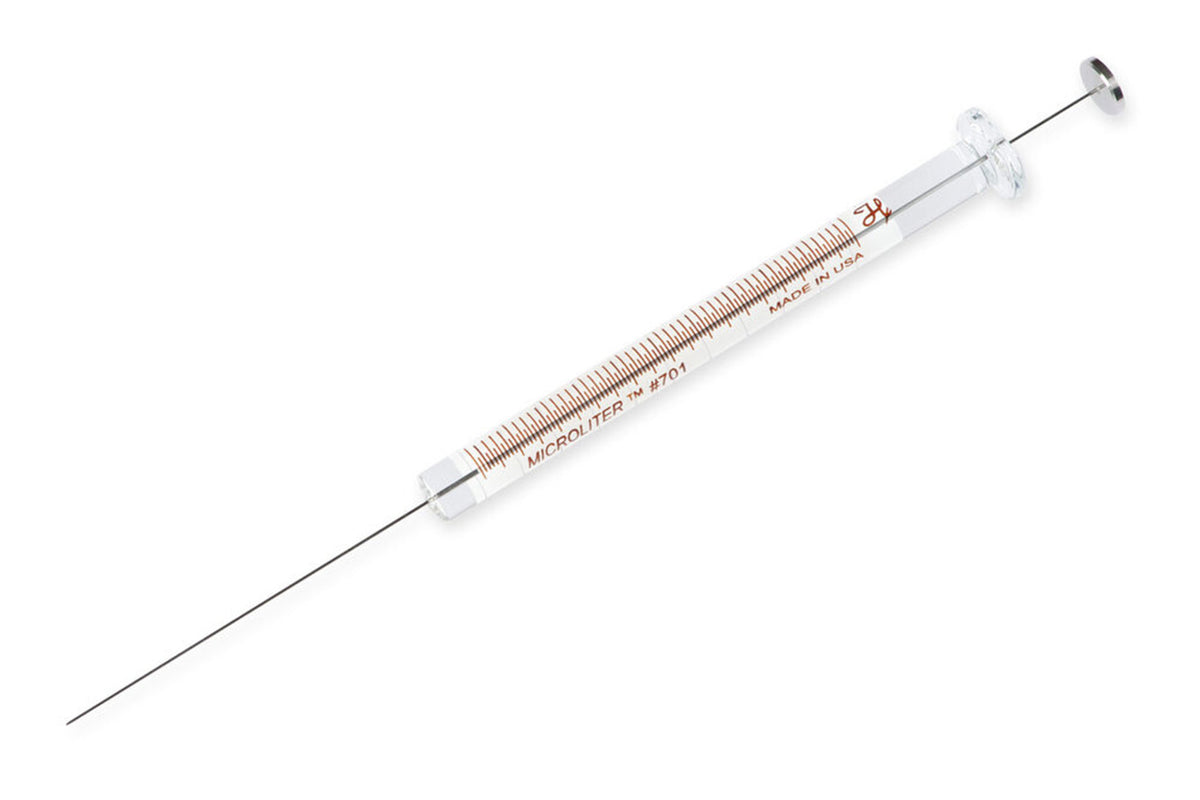

10 µL, Microliter Syringe, Special Cemented Needle (SN)
Vendor: Hamilton Company
SKU: 80343
In stock
Hamilton's 700 series, Microliter #701 with a Special Cemented Needle Syringe is designed for standard manual injections.
Hamilton's 700 series syringes offer a velvet feel, featuring a stainless-steel plunger crafted to fit the glass barrel with a tolerance of less than three-thousandths of a millimeter. Designed for use with manual injection GC ports. These syringes ensure dimensional accuracy, optimal needle length and superior durability. Hamilton's rigorous quality control guarantees the highest standards of accuracy and precision.
Common applications Veterinary Sciences
Specifications
| Volume | 10 µL |
|---|---|
| Syringe Type | Microliter |
| Syringe Series | 700 |
| Termination | Cemented Needle (N) |
| Needle | Cemented Needle |
| Gauge | 23s gauge |
| Point Style | AS: Conical, Autosampler |
| Needle Length | 2.55 inches (64.8 mm) |
| Plunger Style | Standard Plunger |
| Fluid Path | SST, borosilicate glass |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 2000 psig (137.9 bar) |
| Maximum Operating Temperature | 50°C / 122°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.019 inches (0.485 mm) |
| Barrel Outer Diameter | 0.260 inches (6.60 mm) |
| Needle Inner Diameter | 0.0133 inches (0.34 mm) |
| Needle Outer Diameter | 0.0238 inches (0.64 mm) |
| Std Needle Dead Volume | 0.68 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 701 |
Documents
Specifications
- Autoclavable No
- Barrel inner diameter 0.019 inches (0.485 mm)
- Barrel outer diameter 0.260 inches (6.60 mm)
- Fluid path SST, borosilicate glass
- Gas sterilizable Yes
- Gauge 23s gauge
- Maximum operating temperature 50°C / 122°F
- Minimum operating temperature 10°C / 50°F
- Needle Cemented Needle
- Needle inner diameter 0.0133 inches (0.34 mm)
- Needle length 2.55 inches (64.8 mm)
- Needle outer diameter 0.0238 inches (0.64 mm)
- Plunger style Standard Plunger
- Point style AS: Conical, Autosampler
- Pressure 2000 psig (137.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 0.68 µL
- Sub category Microliter Syringes
- Syringe model number 701
- Syringe series 700
- Syringe type Microliter
- Termination Cemented Needle (N)
- Volume 10 µL
links and documants
- Instructions url Click here
- Source url Click here
- Specification url Click here
