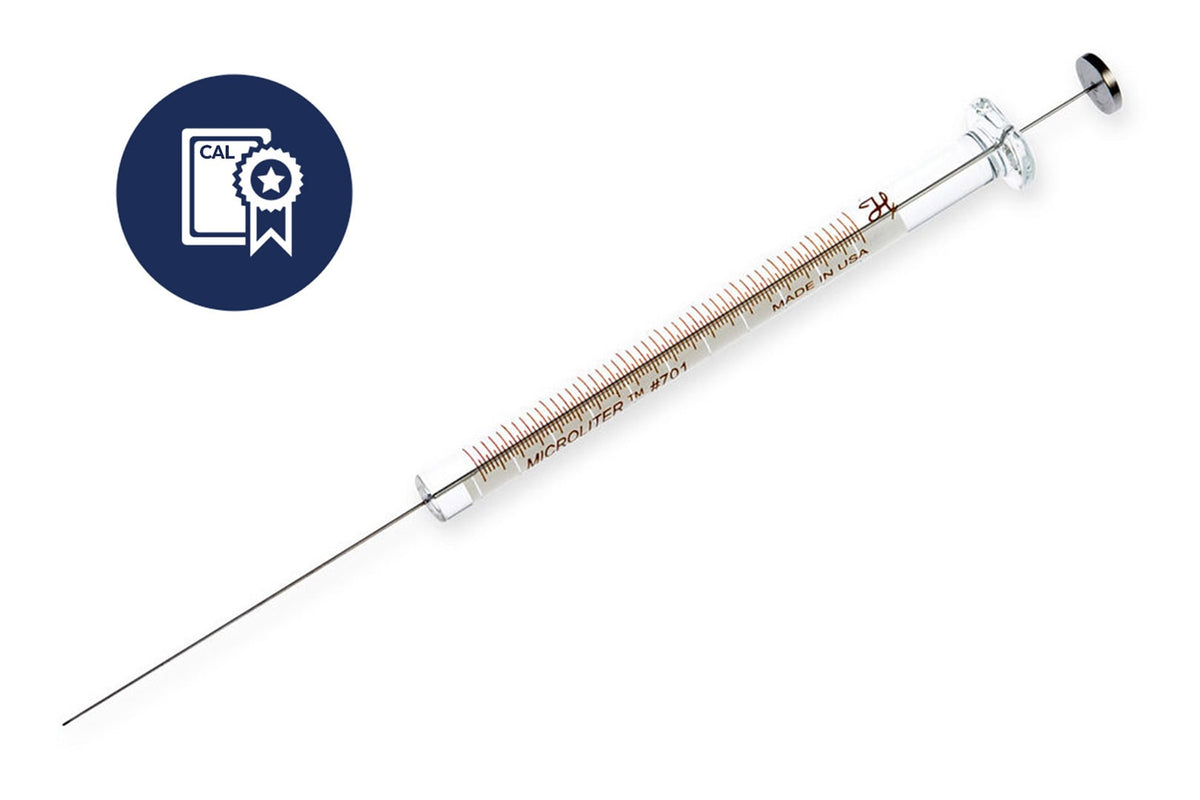

10 µL, Microliter Syringe, Cemented Needle (N), Calibrated Syringe
Vendor: Hamilton Company
SKU: CAL80300
In stock
The Hamilton 700 Series Microliter Syringes set the global standard for ultra-precise, low-volume liquid handling. Designed for exceptional performance, the Microliter syringe stainless steel plunger and glass barrel are fitted to ensure a tight seal that provides a velvet feel. When used with homogeneous samples, the plunger has an almost unlimited lifespan. The Hamilton 700 Series Syringe is ideal for everyday applications like HPLC, microinjection, and titration.
| Model Number | Volume | Barrel Inner Diameter | Stroke Length | Operating Pressure | Operating Temperature |
|---|---|---|---|---|---|
| 75 | 5 µL | 0.34 mm | 54 mm | 14 MPa | 10 - 115 °C1 |
| 701 | 10 µL | 0.49 mm | 54 mm | 14 MPa | 10 - 115 °C1 |
| 702 | 25 µL | 0.73 mm | 60 mm | 14 MPa | 10 - 115 °C1 |
| 705 | 50 µL | 1.03 mm | 60 mm | 14 MPa | 10 - 115 °C1 |
| 710 | 100 µL | 1.46 mm | 60 mm | 14 MPa | 10 - 115 °C1 |
| 725 | 250 µL | 2.30 mm | 60 mm | 7 MPa | 10 - 115 °C1 |
| 750 | 500 µL | 3.26 mm | 60 mm | 7 MPa | 10 - 115 °C1 |
1 If the syringe termination is a cemented needle or luer tip cemented needle then the maximum temperature is 50 °C.
Specifications
| Volume | 10 µL |
|---|---|
| Syringe Type | Microliter |
| Syringe Series | 700 |
| Termination | Cemented Needle (N) |
| Needle | Cemented Needle |
| Gauge | 26s gauge |
| Point Style | 2: Curved, Beveled |
| Needle Length | 2 inch (51 mm) |
| Plunger Style | Standard Plunger |
| Fluid Path | SST, borosilicate glass |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 2000 psig (137.9 bar) |
| Maximum Operating Temperature | 50°C / 122°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.019 inches (0.485 mm) |
| Barrel Outer Diameter | 0.260 inches (6.60 mm) |
| Needle Inner Diameter | 0.005 inches (0.13 mm) |
| Needle Outer Diameter | 0.0187 inches (0.47 mm) |
| Std Needle Dead Volume | 0.64 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 701 |
Documents
Specifications
- Autoclavable No
- Barrel inner diameter 0.019 inches (0.485 mm)
- Barrel outer diameter 0.260 inches (6.60 mm)
- Fluid path SST, borosilicate glass
- Gas sterilizable Yes
- Gauge 26s gauge
- Maximum operating temperature 50°C / 122°F
- Minimum operating temperature 10°C / 50°F
- Needle Cemented Needle
- Needle inner diameter 0.005 inches (0.13 mm)
- Needle length 2 inch (51 mm)
- Needle outer diameter 0.0187 inches (0.47 mm)
- Plunger style Standard Plunger
- Point style 2: Curved, Beveled
- Pressure 2000 psig (137.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 0.64 µL
- Sub category Microliter Syringes
- Syringe model number 701
- Syringe series 700
- Syringe type Microliter
- Termination Cemented Needle (N)
- Volume 10 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
