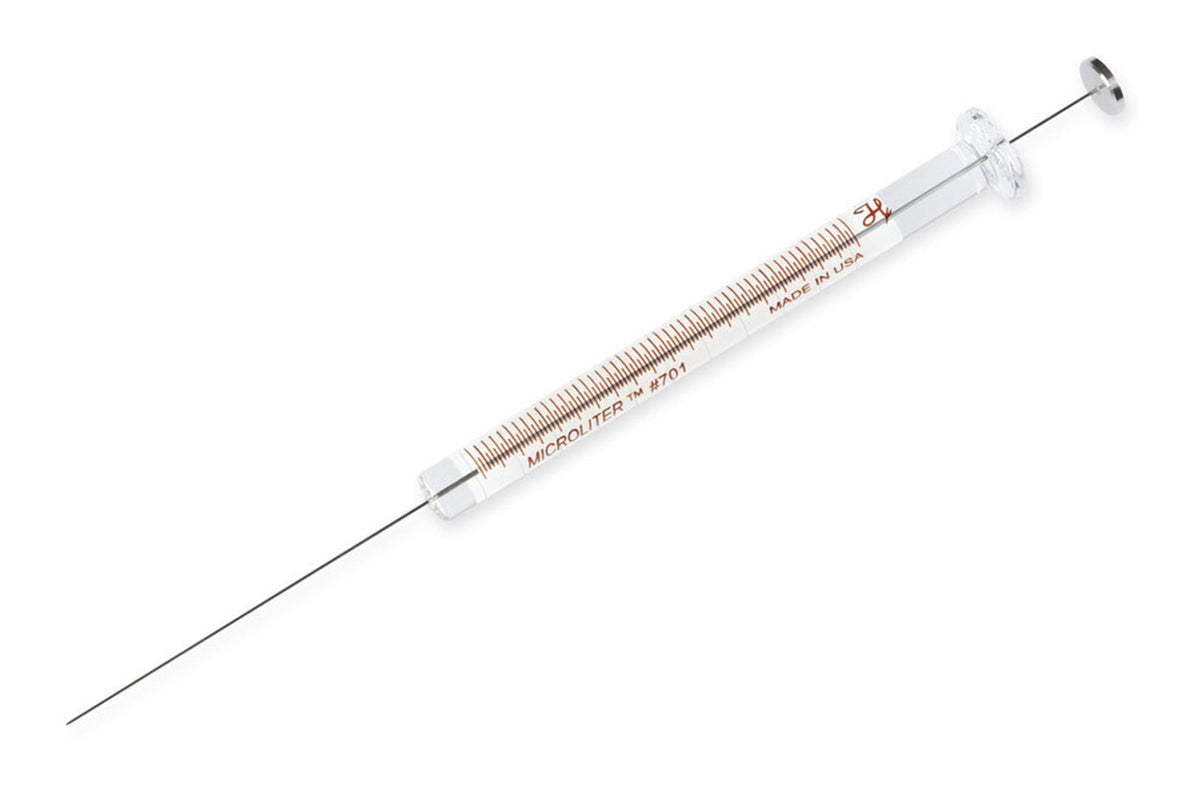

10 µL, Microliter Syringe, Cemented Needle (N)
Vendor: Hamilton Company
SKU: 80339
In stock
Hamilton's 700 series, Microliter #701 Cemented Needle Syringe is designed for manual dispensing and use in autosamplers. Hamilton lab syringes ensure an accuracy of ± 1%, superior durability, and are manufactured with the highest quality chemically resistant materials. Commonly used with autosamplers such as Chrompack CP-8400 CP-8410 CP-9010 and CP-9050.
Hamilton's 700 series syringes offer a velvet feel, featuring a stainless-steel plunger crafted to fit the glass barrel with a tolerance of less than three-thousandths of a millimeter. Hamilton's rigorous quality control guarantees the highest standards of accuracy and precision.
Compatible Autosamplers:
Chrompack CP-8400 CP-8410 CP-9010 and CP-9050 Syringes
Common applications Veterinary Sciences
Specifications
| Volume | 10 µL |
|---|---|
| Syringe Type | Microliter |
| Syringe Series | 700 |
| Termination | Cemented Needle (N) |
| Needle | Cemented Needle |
| Gauge | 26s gauge |
| Point Style | 5: Conical Side Port |
| Needle Length | 2 inch (51 mm) |
| Plunger Style | Standard Plunger |
| Fluid Path | SST, borosilicate glass |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 2000 psig (137.9 bar) |
| Maximum Operating Temperature | 50°C / 122°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.019 inches (0.485 mm) |
| Barrel Outer Diameter | 0.260 inches (6.60 mm) |
| Needle Inner Diameter | 0.005 inches (0.13 mm) |
| Needle Outer Diameter | 0.0187 inches (0.47 mm) |
| Std Needle Dead Volume | 0.64 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 701 |
Documents
Specifications
- Autoclavable No
- Barrel inner diameter 0.019 inches (0.485 mm)
- Barrel outer diameter 0.260 inches (6.60 mm)
- Fluid path SST, borosilicate glass
- Gas sterilizable Yes
- Gauge 26s gauge
- Maximum operating temperature 50°C / 122°F
- Minimum operating temperature 10°C / 50°F
- Needle Cemented Needle
- Needle inner diameter 0.005 inches (0.13 mm)
- Needle length 2 inch (51 mm)
- Needle outer diameter 0.0187 inches (0.47 mm)
- Plunger style Standard Plunger
- Point style 5: Conical Side Port
- Pressure 2000 psig (137.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 0.64 µL
- Sub category Microliter Syringes
- Syringe model number 701
- Syringe series 700
- Syringe type Microliter
- Termination Cemented Needle (N)
- Volume 10 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
