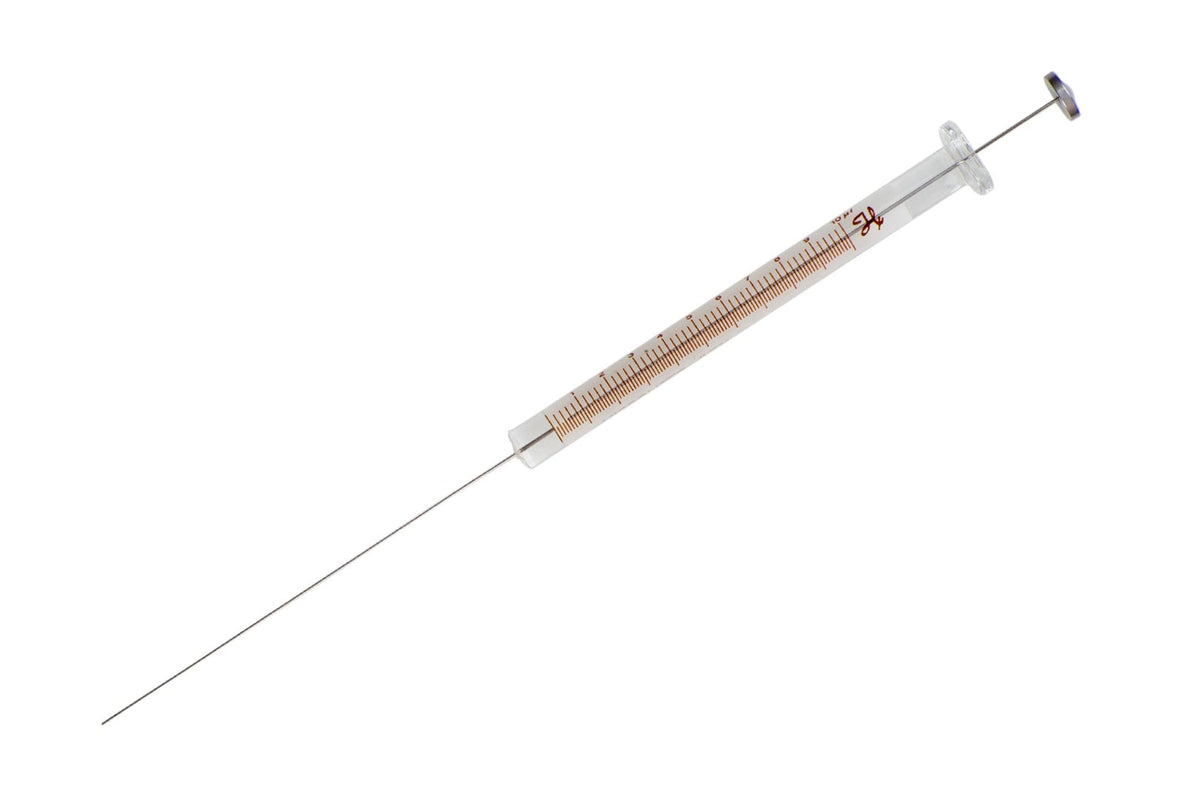

10 µL, Microliter CTC C-Line Autosampler Syringe (6.6 mm)
Vendor: Hamilton Company
SKU: 200742
In stock
Hamilton's 700 series Microliter #701 Fixed Needle (N) Syringe is designed for On-Column injection with CTC/LEAP PAL GC autosamplers.
C-Line syringes incorporate several unique design features that ensure superior performance. The unique flange alignment design aids in installation and results in fewer bent needles while the plunger button can be adjusted to prevent plunger tip damage. An innovative direct attachment design of the needle to the barrel minimizes sample carryover
Hamilton's 700 series syringes offer a velvet feel, featuring a stainless-steel plunger crafted to fit the glass barrel with a tolerance of less than three-thousandths of a millimeter. Hamilton's rigorous quality control guarantees the highest standards of accuracy and precision.
Compatible Autosamplers:
Common applications Veterinary Sciences
Specifications
| Volume | 10 µL |
|---|---|
| Syringe Type | Microliter |
| Syringe Series | 700 |
| Termination | Cemented Needle (N) |
| Needle | Cemented Needle |
| Gauge | 32 gauge |
| Point Style | 45° |
| Plunger Style | Standard Plunger |
| Fluid Path | SST, borosilicate glass |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 2000 psig (137.9 bar) |
| Maximum Operating Temperature | 50°C / 122°F |
| Minimum Operating Temperature | 20°C / 68°F |
| Needle Inner Diameter | 0.0045 inches (0.11 mm) |
| Needle Outer Diameter | 0.00925 inches (0.24 mm) |
| Std Needle Dead Volume | 0.59 μL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 701 |
Documents
Specifications
- Autoclavable No
- Fluid path SST, borosilicate glass
- Gas sterilizable Yes
- Gauge 32 gauge
- Maximum operating temperature 50°C / 122°F
- Minimum operating temperature 20°C / 68°F
- Needle Cemented Needle
- Needle inner diameter 0.0045 inches (0.11 mm)
- Needle outer diameter 0.00925 inches (0.24 mm)
- Plunger style Standard Plunger
- Point style 45°
- Pressure 2000 psig (137.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 0.59 μL
- Sub category Microliter Syringes
- Syringe model number 701
- Syringe series 700
- Syringe type Microliter
- Termination Cemented Needle (N)
- Volume 10 µL
links and documants
- Datasheet url Click here
- Instructions url Click here
- Source url Click here
- Specification url Click here
