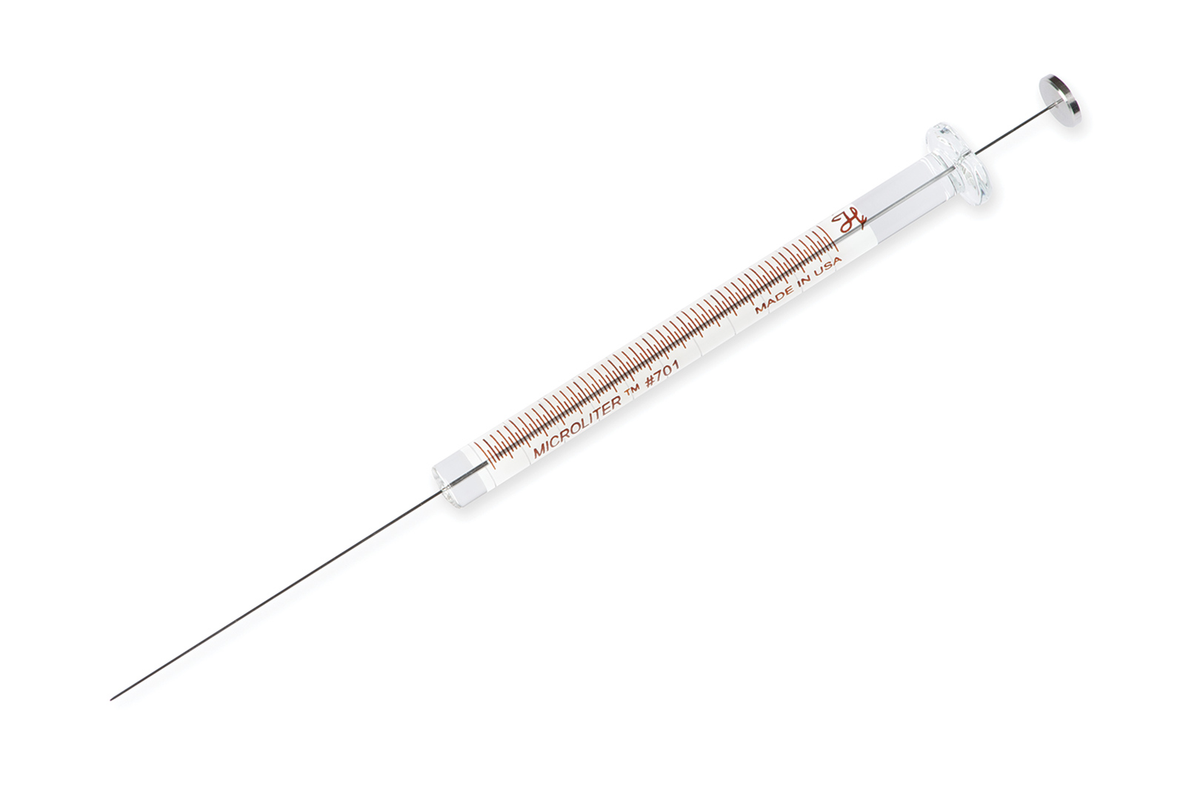

10 µL Microliter Autosampler Syringe
Vendor: Hamilton Company
SKU: 93898-01
In stock
Hamilton's 700 series, Microliter #701 syringe with a cemented needle termination is designed for use in autosamplers. Hamilton syringes ensure an accuracy of ± 1%, superior durability, and are manufactured with the highest quality, chemically resistant materials. Commonly used with autosamplers such as Shimadzu AOC 14, AOC-17, and AOC-20.
The 700 series syringes offer a velvet feel, featuring a stainless-steel plunger crafted to fit the glass barrel with a tolerance of less than three-thousandths of a millimeter. Hamilton's rigorous quality control guarantees the highest standards of accuracy and precision.
Compatible Autosamplers:
Shimadzu AOC-14 AOC-17 and AOC-20 Syringes
Common applications Veterinary Sciences
Specifications
| Volume | 10 µL |
|---|---|
| Syringe Type | Microliter |
| Syringe Series | 700 |
| Termination | Cemented Needle (N) |
| Needle | Cemented Needle |
| Gauge | 23s gauge |
| Point Style | AS: Conical, Autosampler |
| Needle Length | 1.69 inches (42.9 mm) |
| Plunger Style | Standard Plunger |
| Fluid Path | SST, Borosilicate glass, PTFE |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 2000 psig (137.9 bar) |
| Maximum Operating Temperature | 50°C / 122°F |
| Minimum Operating Temperature | 20°C / 68°F |
| Needle Inner Diameter | 0.0045 inches (0.11 mm) |
| Needle Outer Diameter | 0.0238 inches (0.64 mm) |
| Std Needle Dead Volume | 0.46 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 701 |
Documents
Specifications
- Autoclavable No
- Fluid path SST, Borosilicate glass, PTFE
- Gas sterilizable Yes
- Gauge 23s gauge
- Maximum operating temperature 50°C / 122°F
- Minimum operating temperature 20°C / 68°F
- Needle Cemented Needle
- Needle inner diameter 0.0045 inches (0.11 mm)
- Needle length 1.69 inches (42.9 mm)
- Needle outer diameter 0.0238 inches (0.64 mm)
- Plunger style Standard Plunger
- Point style AS: Conical, Autosampler
- Pressure 2000 psig (137.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 0.46 µL
- Sub category Microliter Syringes
- Syringe model number 701
- Syringe series 700
- Syringe type Microliter
- Termination Cemented Needle (N)
- Volume 10 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
