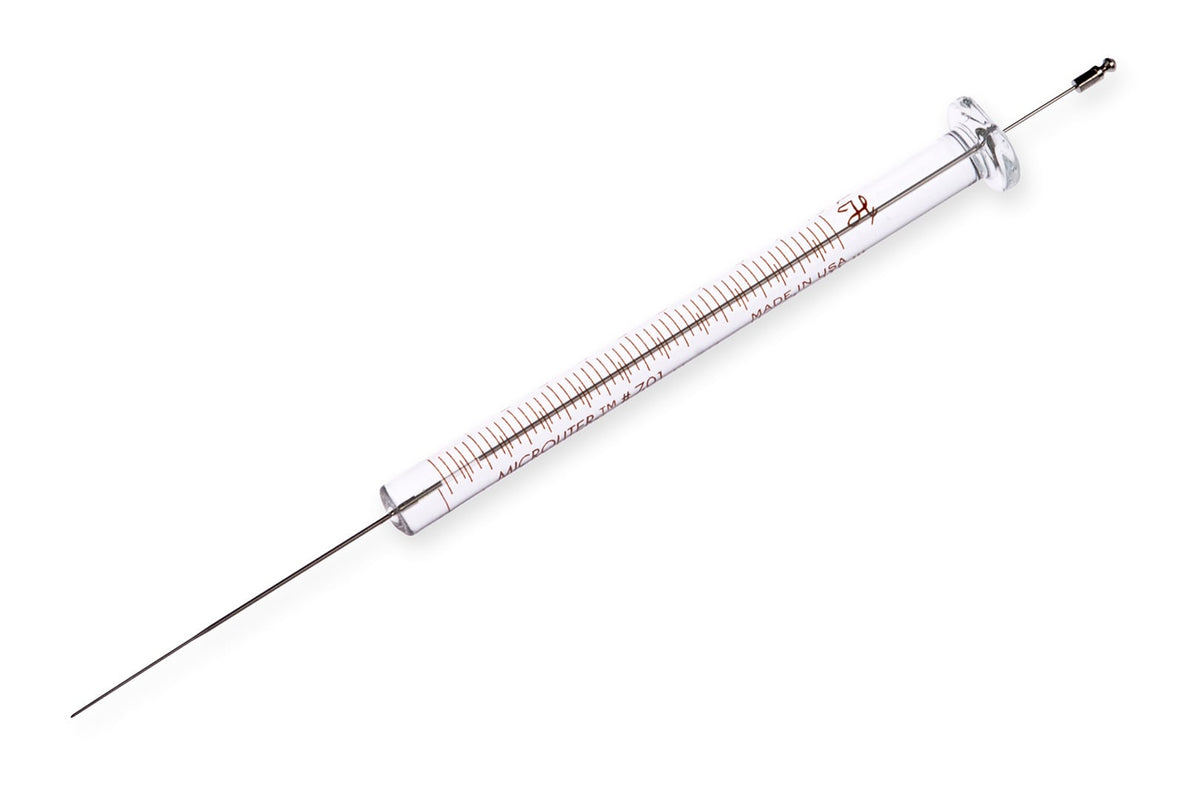

10 µL Microliter Autosampler Agilent Syringe
Vendor: Hamilton Company
SKU: 80393
In stock
Hamilton's 700 series, Microliter #701 Cemented Needle (N) Syringe compatible with Agilent GC autosamplers 7693A, 7673, 7683, 6850.
Hamilton's 700 series syringes offer a velvet feel, featuring a stainless-steel plunger crafted to fit the glass barrel with a tolerance of less than three-thousandths of a millimeter. Designed for Agilent GC autosamplers, these syringes ensure dimensional accuracy, optimal needle length and superior durability. Hamilton's rigorous quality control guarantees the highest standards of accuracy and precision.
Compatible Autosamplers:
Cemented Needle Syringes for Agilent GC 7693A, 7673, 7683, 6850 ALS
Common applications Veterinary Sciences
Specifications
| Volume | 10 µL |
|---|---|
| Syringe Type | Microliter |
| Syringe Series | 700 |
| Termination | Cemented Needle (N) |
| Needle | Cemented Needle |
| Gauge | 23s-26s gauge |
| Point Style | AS: Conical, Autosampler |
| Needle Length | 1.71 inches (43.4 mm) |
| Plunger Style | Agilent Plunger |
| Fluid Path | SST, borosilicate glass |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 2000 psig (137.9 bar) |
| Maximum Operating Temperature | 50°C / 122°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.019 inches (0.485 mm) |
| Barrel Outer Diameter | 0.260 inches (6.60 mm) |
| Needle Inner Diameter | 0.0133 - 0.005 inches (0.64 - 0.13 mm) |
| Needle Outer Diameter | 0.0283 - 0.0187 inches (0.72 - 0.47 mm) |
| Std Needle Dead Volume | 0.46 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 701 |
Documents
Specifications
- Autoclavable No
- Barrel inner diameter 0.019 inches (0.485 mm)
- Barrel outer diameter 0.260 inches (6.60 mm)
- Fluid path SST, borosilicate glass
- Gas sterilizable Yes
- Gauge 23s-26s gauge
- Maximum operating temperature 50°C / 122°F
- Minimum operating temperature 10°C / 50°F
- Needle Cemented Needle
- Needle inner diameter 0.0133 - 0.005 inches (0.64 - 0.13 mm)
- Needle length 1.71 inches (43.4 mm)
- Needle outer diameter 0.0283 - 0.0187 inches (0.72 - 0.47 mm)
- Plunger style Agilent Plunger
- Point style AS: Conical, Autosampler
- Pressure 2000 psig (137.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 0.46 µL
- Sub category Microliter Syringes
- Syringe model number 701
- Syringe series 700
- Syringe type Microliter
- Termination Cemented Needle (N)
- Volume 10 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
