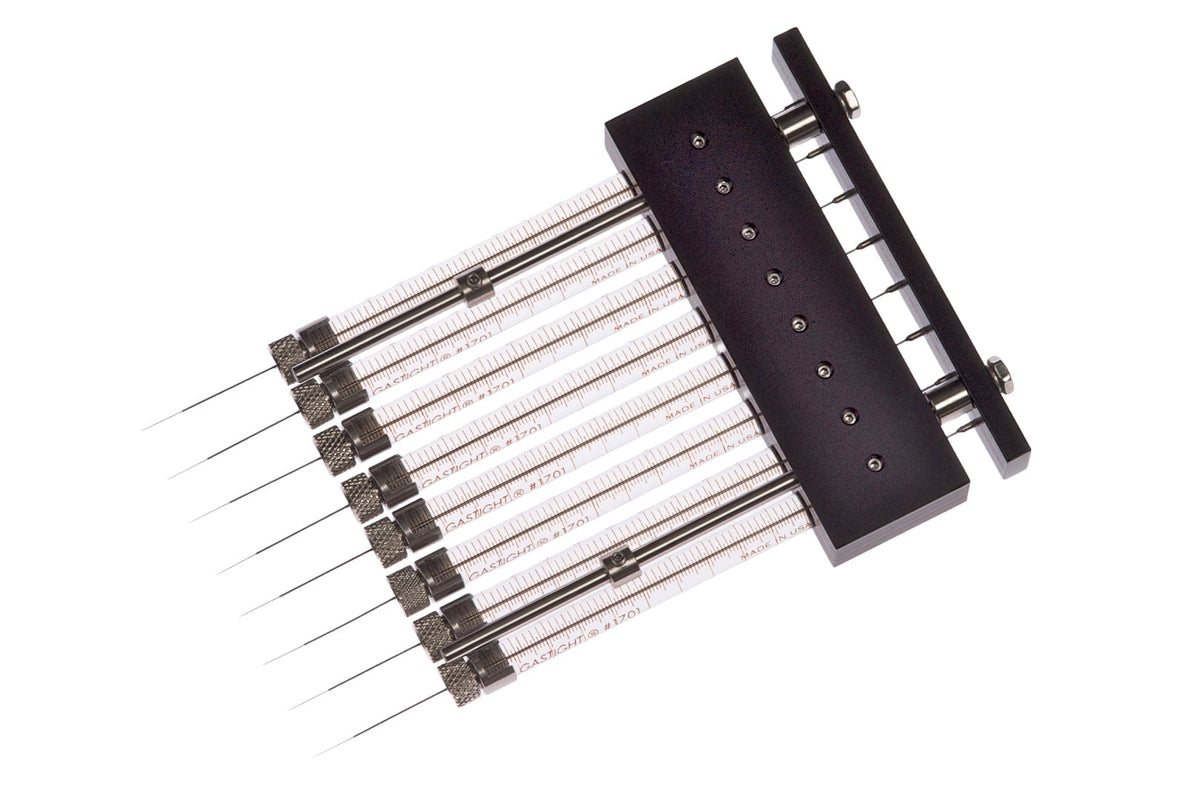

10 µL, Gastight Syringe, Cemented Needle (N), 8 Channel Gel Loading
Vendor: Hamilton Company
SKU: 84503
In stock
Hamilton's 1700 series, Gastight # 1701 Removable Needle (RN) Syringe is designed with small-gauge needles that a perfect for loading the lanes on an electrophoresis gel. Commonly used for multiplex DNA sequencing methodologies. The 1700 series gel loading syringes are available in single, 8-channel, and 12-channel formats to rapidly transfer 1, 8, or 12 samples to sequencing gels or multi-well plates and nylon membranes. The fixed syringes offer 9 mm needle spacing, and the adjustable width syringe goes from 9 – 10.8 mm. A settable volume stop allows for faster, more accurate reloading and excellent reproducibility.
Specifications
| Volume | 10 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1700 |
| Termination | Cemented Needle (N) |
| Needle | Cemented Needle |
| Gauge | 0.3 mm |
| Point Style | 3: Blunt |
| Needle Length | 1.00 inch (25.4 mm) |
| Fluid Path | SST, Borosilicate glass, PTFE |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 1000 psig (68.9 bar) |
| Maximum Operating Temperature | 50°C / 122°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.018 inches (0.460 mm) |
| Barrel Outer Diameter | 0.260 inches (6.60 mm) |
| Needle Inner Diameter | 0.0025 inches (0.064 mm) |
| Needle Outer Diameter | 0.010 inches (0.3 mm) |
| Std Needle Dead Volume | 0.35 µL |
| Sales Quantity | 1 syringe per pack |
| Channels | 8-channel |
| Syringe Model Number | 1701 |
Documents
Specifications
- Autoclavable No
- Barrel inner diameter 0.018 inches (0.460 mm)
- Barrel outer diameter 0.260 inches (6.60 mm)
- Fluid path SST, Borosilicate glass, PTFE
- Gas sterilizable Yes
- Gauge 0.3 mm
- Maximum operating temperature 50°C / 122°F
- Minimum operating temperature 10°C / 50°F
- Needle Cemented Needle
- Needle inner diameter 0.0025 inches (0.064 mm)
- Needle length 1.00 inch (25.4 mm)
- Needle outer diameter 0.010 inches (0.3 mm)
- Point style 3: Blunt
- Pressure 1000 psig (68.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 0.35 µL
- Sub category Gastight Syringes
- Syringe model number 1701
- Syringe series 1700
- Syringe type Gastight
- Termination Cemented Needle (N)
- Volume 10 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
