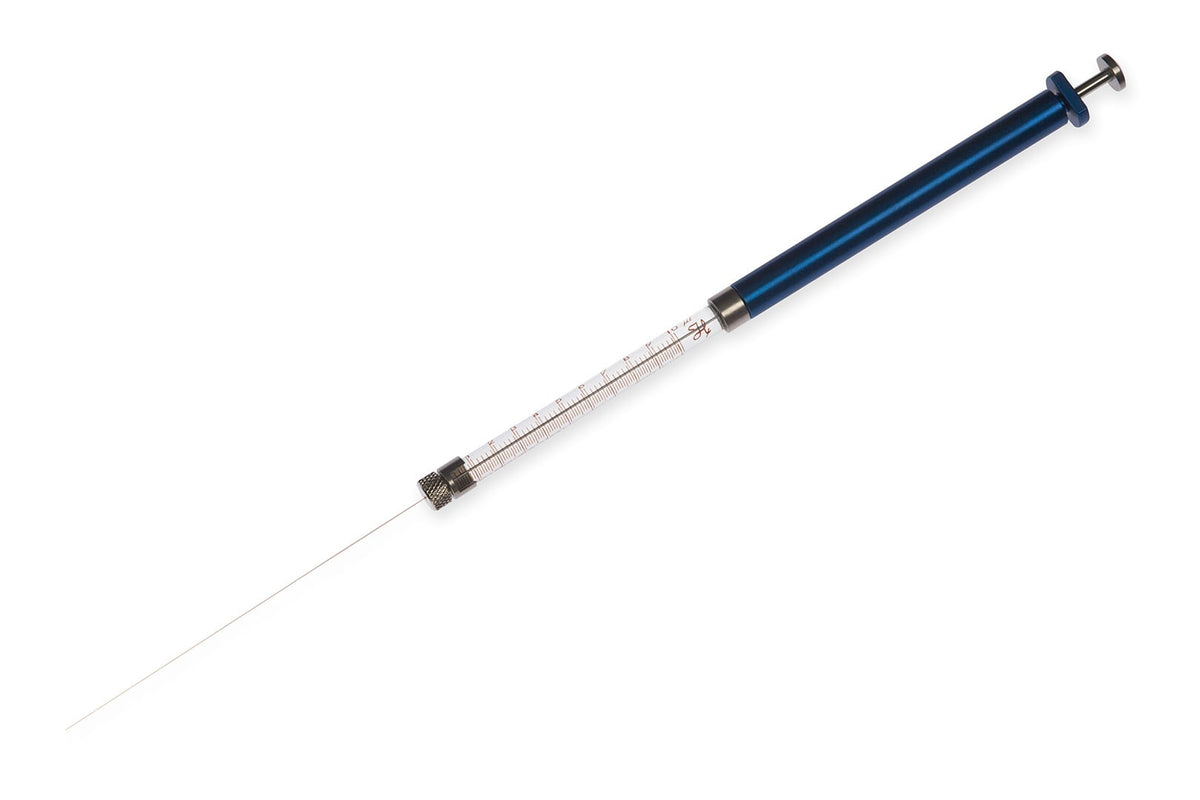

10 µL, Gastight On-Column GC Syringe, Removable Needle (RN)
Vendor: Hamilton Company
SKU: 87405
In stock
Hamilton's 1800 series, Gastight # 1801 Removable Needle (RN) Syringe is a reinforced plunger version of the 1700 Gastight syringe. This syringe also features a blue Syringe Holder attached to the flange. Commonly used for On-column injections with special needle specifications adjusted to the columns with 0.25 mm inner diameter. On-column injection employs longer needles with smaller outer diameters for direct introduction of the liquid sample into the column. This is very useful for the analysis of thermally unstable samples and avoids boiling point discrimination. The reinforced plunger provides crucial support to delicate, small-volume plungers, preventing bending and maintaining injection integrity.
Specifications
| Volume | 10 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1800 |
| Termination | Removable Needle (RN) |
| Needle | Small RN |
| Gauge | 0.17 mm |
| Point Style | 3: Blunt |
| Needle Length | 3.94 inches (100 mm) |
| Plunger Style | Reinforced Plunger |
| Fluid Path | PTFE, boroscilicate glass, fused silica |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 1000 psig (68.9 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.018 inches (0.460 mm) |
| Barrel Outer Diameter | 0.260 inches (6.60 mm) |
| Needle Inner Diameter | 0.00394 inches (0.10 mm) |
| Needle Outer Diameter | 0.00669 inches (0.17 mm) |
| Std Needle Dead Volume | 0.91 µL |
| Sales Quantity | 1 syringe per pack |
Documents
Specifications
- Autoclavable Yes
- Barrel inner diameter 0.018 inches (0.460 mm)
- Barrel outer diameter 0.260 inches (6.60 mm)
- Fluid path PTFE, boroscilicate glass, fused silica
- Gas sterilizable Yes
- Gauge 0.17 mm
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle Small RN
- Needle inner diameter 0.00394 inches (0.10 mm)
- Needle length 3.94 inches (100 mm)
- Needle outer diameter 0.00669 inches (0.17 mm)
- Plunger style Reinforced Plunger
- Point style 3: Blunt
- Pressure 1000 psig (68.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 0.91 µL
- Sub category Syringe Applications
- Syringe series 1800
- Syringe type Gastight
- Termination Removable Needle (RN)
- Volume 10 µL
links and documants
- Instructions url Click here
- Source url Click here
- Specification url Click here
