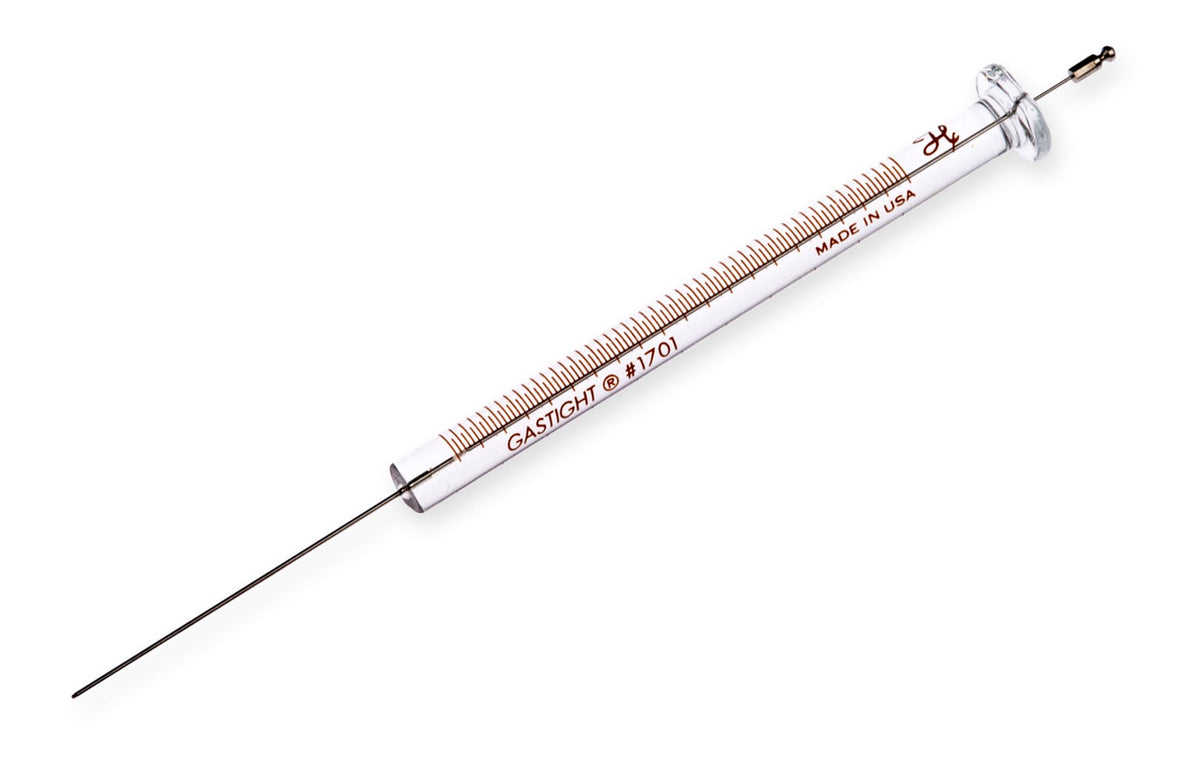

10 µL, Gastight Agilent Autosampler Syringe, Cemented Needle (N)
Vendor: Hamilton Company
SKU: 80080
In stock
Hamilton's 1700 series, Gastight #1701 Cemented Needle (N) Syringe (23s Gauge) is designed for use in Agilent autosamplers. Commonly used with autosamplers such as Agilent GC 7693A, 7673, 7683, 6850 ALS.
The 1700 series syringes are the Gastight version of the Hamilton 700 series syringes. This series of syringes are ideal for dispensing both liquids and gases. They have a polymer plunger tip that creates a leak-free seal. With a wide range of volume capabilities, terminations, needle options and plunger styles, this syringe series provides exceptional flexibility and versatility. Hamilton syringes ensure an accuracy of ± 1%, superior durability, and are manufactured with the highest quality chemically resistant materials.
Compatible Autosamplers:
Cemented Needle Syringes for Agilent GC 7693A, 7673, 7683, 6850 ALS
Specifications
| Volume | 10 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1700 |
| Termination | Cemented Needle (N) |
| Needle | Cemented Needle |
| Gauge | 23s gauge |
| Point Style | AS: Conical, Autosampler |
| Needle Length | 1.71 inches (43.4 mm) |
| Plunger Style | Agilent Plunger |
| Fluid Path | SST, Borosilicate glass, PTFE |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 1000 psig (68.9 bar) |
| Maximum Operating Temperature | 50°C / 122°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.018 inches (0.460 mm) |
| Barrel Outer Diameter | 0.260 inches (6.60 mm) |
| Needle Inner Diameter | 0.0133 inches (0.34 mm) |
| Needle Outer Diameter | 0.0238 inches (0.64 mm) |
| Std Needle Dead Volume | 0.46 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 1701 |
Documents
Specifications
- Autoclavable No
- Barrel inner diameter 0.018 inches (0.460 mm)
- Barrel outer diameter 0.260 inches (6.60 mm)
- Fluid path SST, Borosilicate glass, PTFE
- Gas sterilizable Yes
- Gauge 23s gauge
- Maximum operating temperature 50°C / 122°F
- Minimum operating temperature 10°C / 50°F
- Needle Cemented Needle
- Needle inner diameter 0.0133 inches (0.34 mm)
- Needle length 1.71 inches (43.4 mm)
- Needle outer diameter 0.0238 inches (0.64 mm)
- Plunger style Agilent Plunger
- Point style AS: Conical, Autosampler
- Pressure 1000 psig (68.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 0.46 µL
- Sub category Gastight Syringes
- Syringe model number 1701
- Syringe series 1700
- Syringe type Gastight
- Termination Cemented Needle (N)
- Volume 10 µL
