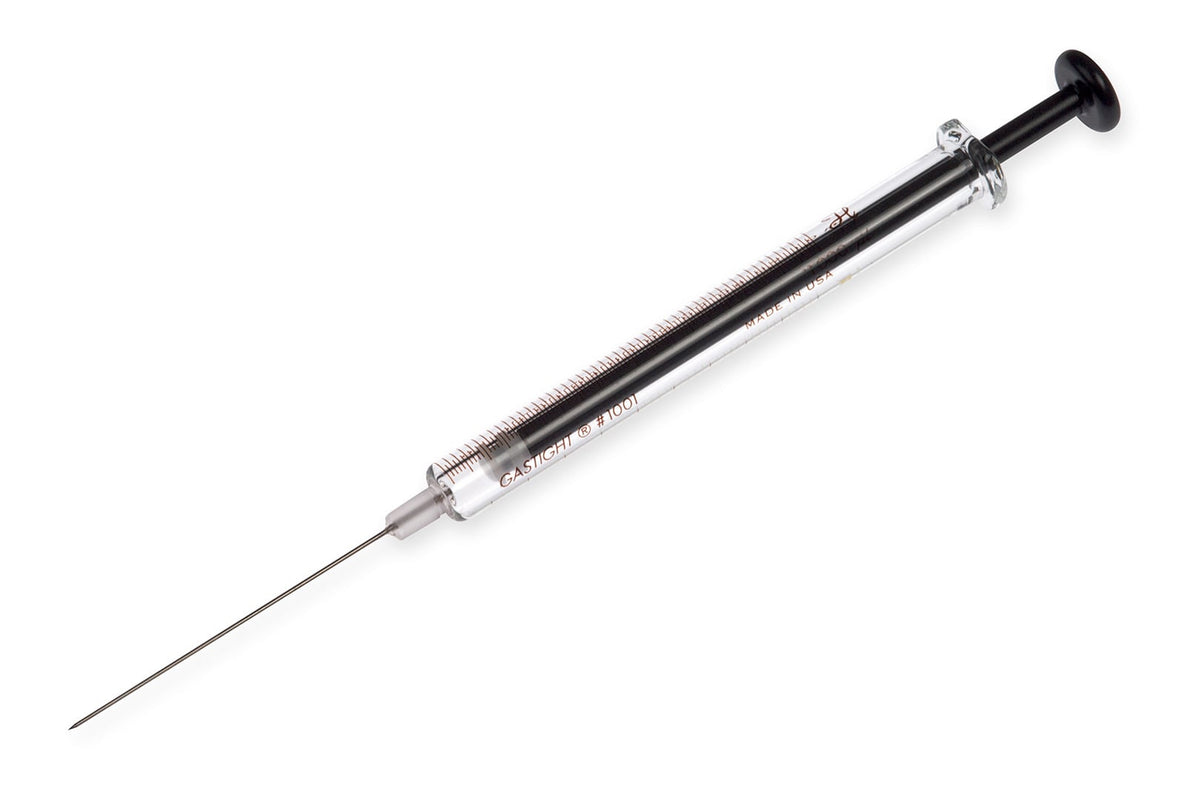

1 mL Gastight Syringe, Cemented Needle (N)
Vendor: Hamilton Company
SKU: 81343
In stock
Hamilton's 1000 series, Gastight Model 1001 Luer Tip Cemented Needle (LTN) Syringe is designed to manually dispense both liquids and gases. The 1000 series is a mid-volume Gastight syringe. They feature a polymer plunger tip that creates a leak-free seal. With a wide range of volume capabilities, terminations, needle options, and plunger styles, this syringe series provides exceptional flexibility and versatility. Hamilton syringes ensure an accuracy of ± 1%, superior durability, and are manufactured with the highest quality chemically resistant materials.
Specifications
| Volume | 1 mL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1000 |
| Termination | Luer Tip Cemented Needle (LTN) |
| Needle | Cemented Needle |
| Gauge | 22 gauge |
| Point Style | 5: Conical Side Port |
| Needle Length | 2 inch (51 mm) |
| Plunger Style | Standard Plunger |
| Fluid Path | SST, Borosilicate glass, PTFE |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 200 psig (13.8 bar) |
| Maximum Operating Temperature | 50°C / 122°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.181 inches (4.61 mm) |
| Barrel Outer Diameter | 0.355 inches (9.02 mm) |
| Needle Inner Diameter | 0.0161 inches (0.41 mm) |
| Needle Outer Diameter | 0.0283 inches (0.72 mm) |
| Std Needle Dead Volume | 6.81 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 1001 |
Documents
Specifications
- Autoclavable No
- Barrel inner diameter 0.181 inches (4.61 mm)
- Barrel outer diameter 0.355 inches (9.02 mm)
- Fluid path SST, Borosilicate glass, PTFE
- Gas sterilizable Yes
- Gauge 22 gauge
- Maximum operating temperature 50°C / 122°F
- Minimum operating temperature 10°C / 50°F
- Needle Cemented Needle
- Needle inner diameter 0.0161 inches (0.41 mm)
- Needle length 2 inch (51 mm)
- Needle outer diameter 0.0283 inches (0.72 mm)
- Plunger style Standard Plunger
- Point style 5: Conical Side Port
- Pressure 200 psig (13.8 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 6.81 µL
- Sub category Gastight Syringes
- Syringe model number 1001
- Syringe series 1000
- Syringe type Gastight
- Termination Luer Tip Cemented Needle (LTN)
- Volume 1 mL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
