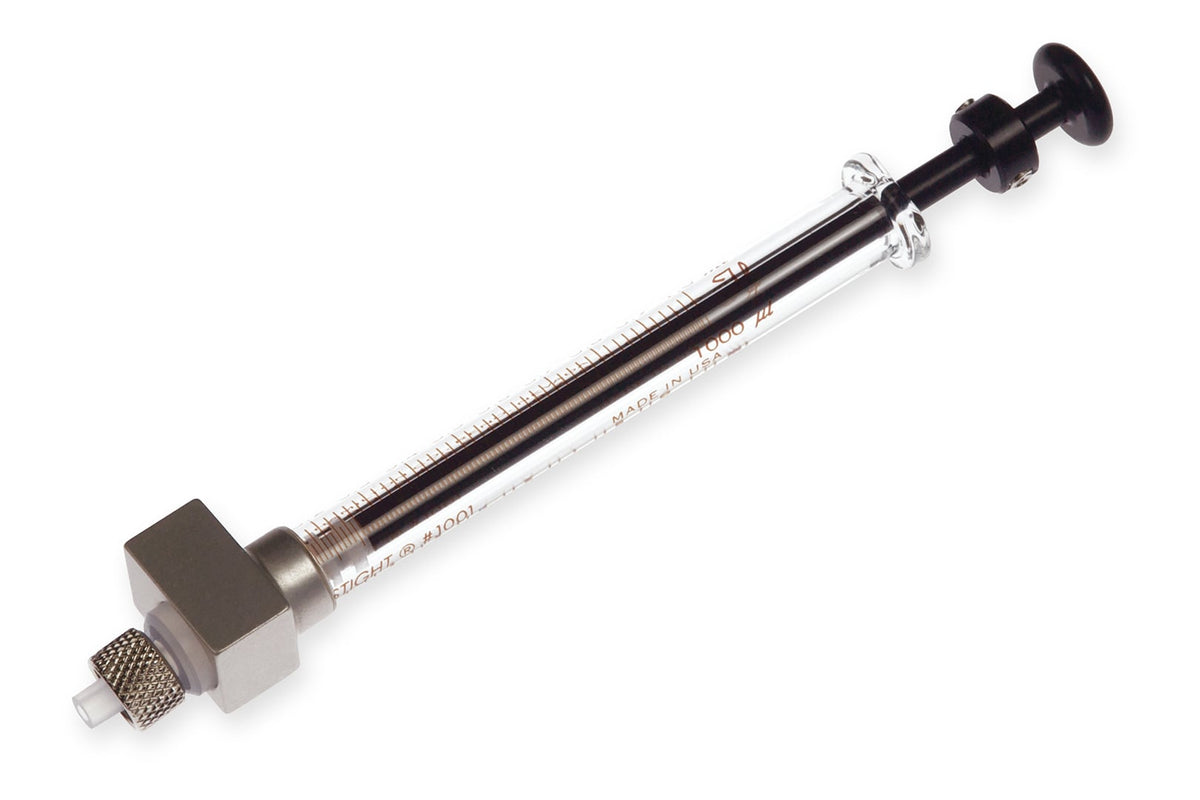

1 mL, Gastight Instrument Syringe, Diluter PTFE Luer Lock (D)
Vendor: Hamilton Company
SKU: 81326
In stock

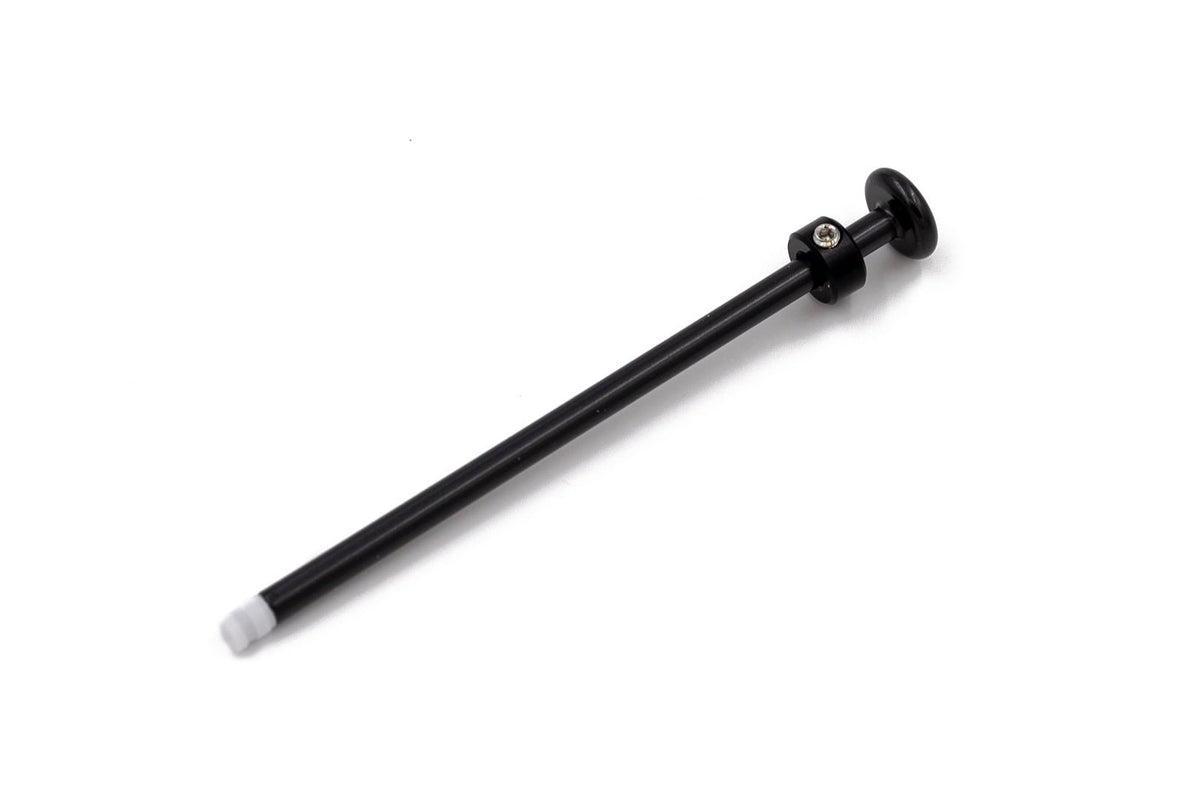

Hamilton's 1000 series, Gastight Instrument # 1001 Diluter PTFE Luer Lock (D) Syringe with X-Style plunger has a PTFE Luer Lock male fitting with an M6 female side port. The X-style plunger is intended for use with syringe pumps, diluters, and dispensers. A special plunger button protects the delicate plunger wire by stopping the pump at the zero line before damaging the tip.
The 1000 series is a mid-volume Gastight syringe. They feature a polymer plunger tip that creates a leak-free seal. With a wide range of volume capabilities, terminations, needle options, and plunger styles, this syringe series provides exceptional flexibility and versatility.
Specifications
| Volume | 1 mL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1000 |
| Termination | Diluter PTFE Luer Lock (D) |
| Needle | No Needle Available |
| Plunger Style | X-Style |
| Fluid Path | Borosilicate glass, PTFE, PCTFE |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 200 psig (13.8 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.181 inches (4.61 mm) |
| Barrel Outer Diameter | 0.355 inches (9.02 mm) |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 1001 |
Documents
Specifications
- Autoclavable No
- Barrel inner diameter 0.181 inches (4.61 mm)
- Barrel outer diameter 0.355 inches (9.02 mm)
- Fluid path Borosilicate glass, PTFE, PCTFE
- Gas sterilizable Yes
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle No Needle Available
- Plunger style X-Style
- Pressure 200 psig (13.8 bar)
- Sales quantity 1 syringe per pack
- Sub category Gastight Syringes
- Syringe model number 1001
- Syringe series 1000
- Syringe type Gastight
- Termination Diluter PTFE Luer Lock (D)
- Volume 1 mL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
