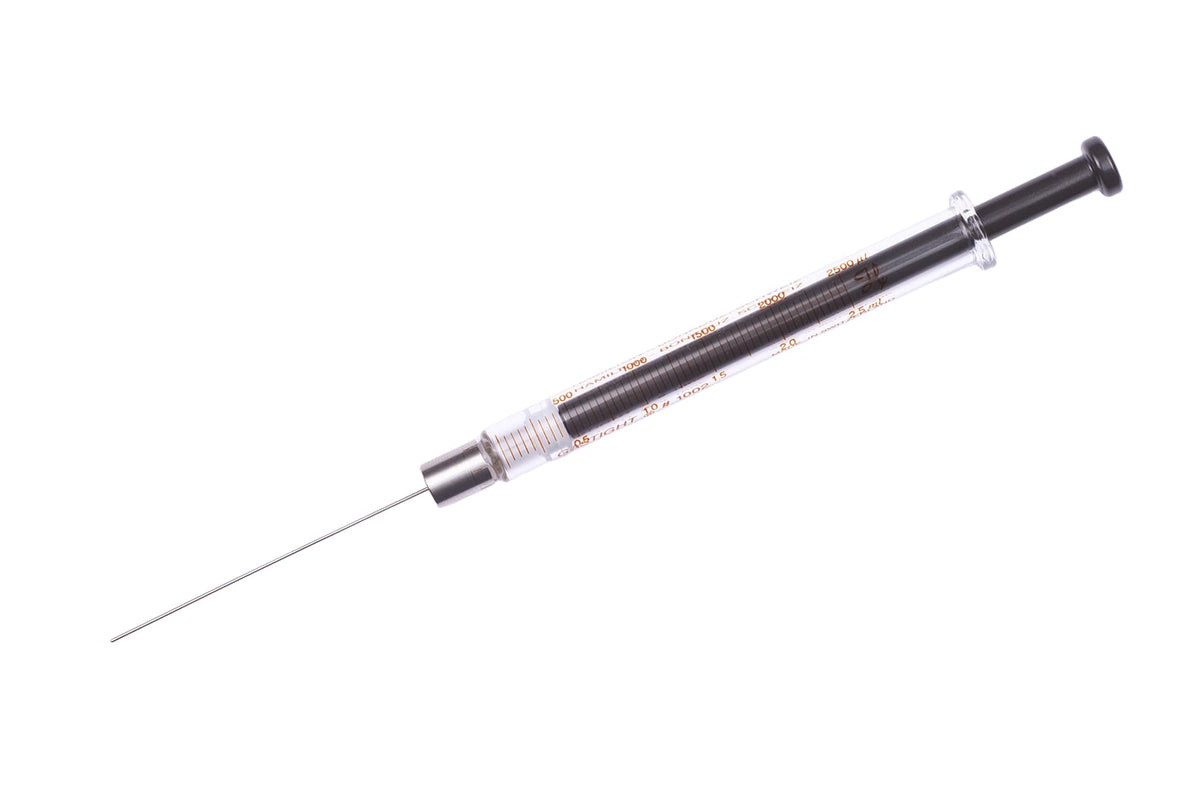

1 mL, Gastight, Headspace CTC PAL Autosampler Syringe, Glue-Free (GF)
Vendor: Hamilton Company
SKU: 209681
In stock
Hamilton's 1000 series, Gastight, Headspace # 1001 Glue-Free (GF) CTC PAL Autosampler Syringe is designed for CTC PAL COMBI–xt Headspace Autosamplers with a High Temperature (HT) stability up to 200 °C and a High Dynamic (HD) plunger to compensate for different expansion coefficients, ensuring a better seal over a wide range of temperatures. This syringe features a Glue Free needle attachment, making it chemically inert, resistant to organic and chlorinated solvents, preventing needle detachment and minimizing ghost peaks. A unique Spring-in-plunger design creates a dynamic seal between the plunger tip and the inside of the glass barrel for leak-free operation.
Compatible Autosamplers:
CTC LEAP CombiPAL HDHT Headspace Syringes
Specifications
| Volume | 1 mL |
|---|---|
| Syringe Type | Gastight, Headspace |
| Syringe Series | 1000 |
| Termination | Glue-Free (GF) |
| Needle | Glue-Free (GF) |
| Gauge | 23 gauge |
| Point Style | 5: Conical Side Port |
| Needle Length | 56 mm (2.20 inches) |
| Plunger Style | Standard Plunger |
| Fluid Path | SST, Borosilicate glass, PTFE |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 29 psig (2bar) |
| Maximum Operating Temperature | 392°F (200°C) |
| Minimum Operating Temperature | 20°C / 68°F |
| Needle Inner Diameter | 0.0133 inches (0.34 mm) |
| Needle Outer Diameter | 0.025 inches (0.64 mm) |
| Std Needle Dead Volume | 4.76 µL |
| Sales Quantity | 1 syringe per pack |
Documents
Specifications
- Autoclavable No
- Fluid path SST, Borosilicate glass, PTFE
- Gas sterilizable Yes
- Gauge 23 gauge
- Maximum operating temperature 392°F (200°C)
- Minimum operating temperature 20°C / 68°F
- Needle Glue-Free (GF)
- Needle inner diameter 0.0133 inches (0.34 mm)
- Needle length 56 mm (2.20 inches)
- Needle outer diameter 0.025 inches (0.64 mm)
- Plunger style Standard Plunger
- Point style 5: Conical Side Port
- Pressure 29 psig (2bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 4.76 µL
- Sub category Syringe Applications
- Syringe series 1000
- Syringe type Gastight, Headspace
- Termination Glue-Free (GF)
- Volume 1 mL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
