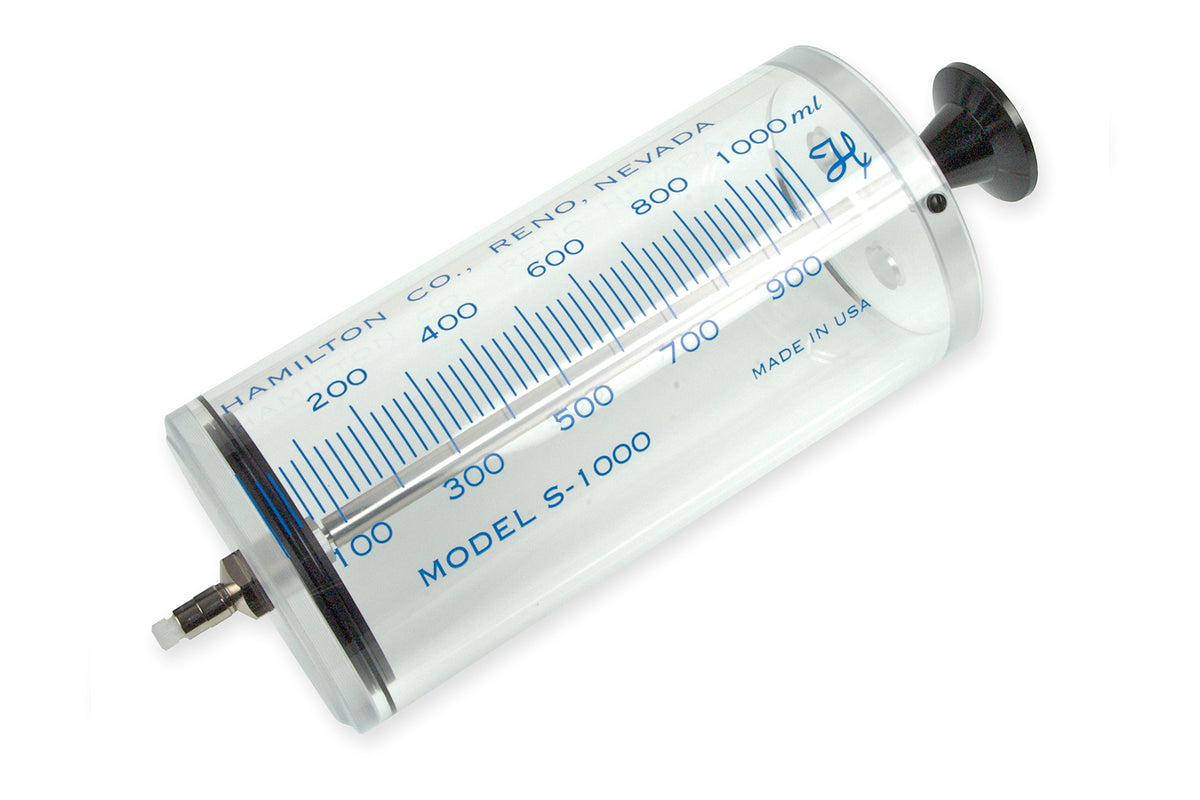

1 L Gastight Super Syringe PTFE Luer Lock (TLL)
Vendor: Hamilton Company
SKU: 86312
In stock
Hamilton's Super Syringe series, Gastight #S10 PTFE Luer Lock (TLL) Syringe is a large-volume syringe for air sampling, preparing gas standards, and calibrating reservoirs and pneumographs. Super syringes are the only Hamilton syringes that are made with an acrylic barrel instead of glass. Compatible with Kel-F and Metal Hub Needles.
Compatible with Kel-F and Metal Hub Needles
Specifications
| Volume | 1 L |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | Super Syringe |
| Termination | PTFE Luer Lock (TLL) |
| Needle | Metal (N) or Kel-F |
| Gauge | No Needle Included |
| Point Style | No Needle Included |
| Needle Length | No Needle Included |
| Plunger Style | Reinforced Plunger |
| Fluid Path | Buna-N, Nickel plated brass, PTFE, Silicone, Acrylic |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 30 psig (2.1 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 0°C / 32°F |
| Barrel Inner Diameter | 3.44 inches (87.4 mm) |
| Barrel Outer Diameter | 3.95 inches (100 mm) |
| Std Needle Dead Volume | N/A |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | S-1000 |
Documents
Specifications
- Autoclavable No
- Barrel inner diameter 3.44 inches (87.4 mm)
- Barrel outer diameter 3.95 inches (100 mm)
- Fluid path Buna-N, Nickel plated brass, PTFE, Silicone, Acrylic
- Gas sterilizable Yes
- Gauge No Needle Included
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 0°C / 32°F
- Needle Metal (N) or Kel-F
- Needle length No Needle Included
- Plunger style Reinforced Plunger
- Point style No Needle Included
- Pressure 30 psig (2.1 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume N/A
- Sub category Gastight Syringes
- Syringe model number S-1000
- Syringe series Super Syringe
- Syringe type Gastight
- Termination PTFE Luer Lock (TLL)
- Volume 1 L
