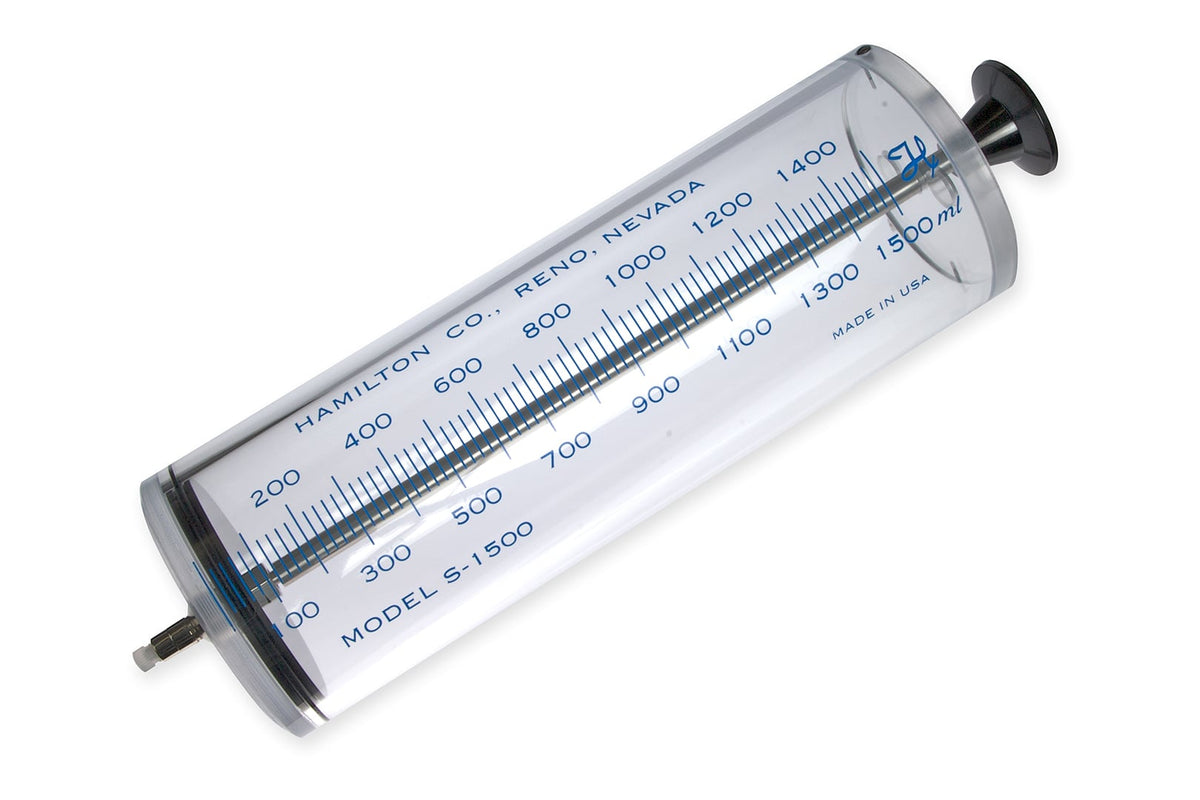

1.5 L, Gastight Super Syringe PTFE Luer Lock (TLL)
Vendor: Hamilton Company
SKU: 86313
In stock
Hamilton's Super Syringe series, Gastight # S15 PTFE Luer Lock (TLL) Syringe. The Hamilton Super Syringe is a large-volume syringe for air sampling, preparing gas standards, calibrating reservoirs, and pneumographs. Super syringes are the only Hamilton syringes that are made with an acrylic barrel instead of glass.
Compatible with Kel-F and Metal Hub Needles.
Specifications
| Volume | 1.5 L |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | Super Syringe |
| Termination | PTFE Luer Lock (TLL) |
| Needle | Metal (N) or Kel-F |
| Gauge | No Needle Included |
| Point Style | No Needle Included |
| Needle Length | No Needle Included |
| Plunger Style | Reinforced Plunger |
| Fluid Path | Buna-N, Nickel plated brass, PTFE, Silicone, Acrylic |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 30 psig (2.1 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 0°C / 32°F |
| Barrel Inner Diameter | 3.44 inches (87.4 mm) |
| Barrel Outer Diameter | 3.95 inches (100 mm) |
| Std Needle Dead Volume | N/A |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | S-1500 |
Documents
Specifications
- Autoclavable No
- Barrel inner diameter 3.44 inches (87.4 mm)
- Barrel outer diameter 3.95 inches (100 mm)
- Fluid path Buna-N, Nickel plated brass, PTFE, Silicone, Acrylic
- Gas sterilizable Yes
- Gauge No Needle Included
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 0°C / 32°F
- Needle Metal (N) or Kel-F
- Needle length No Needle Included
- Plunger style Reinforced Plunger
- Point style No Needle Included
- Pressure 30 psig (2.1 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume N/A
- Sub category Gastight Syringes
- Syringe model number S-1500
- Syringe series Super Syringe
- Syringe type Gastight
- Termination PTFE Luer Lock (TLL)
- Volume 1.5 L
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
