¼”-28 FEP Assembly, 18 Gauge, 2 Fitting(s) 88917 - Valves Fittings & Tubing - Hamilton Company

¼”-28 FEP Assembly, 18 Gauge, 1 Fitting(s)

Name: ¼”-28 FEP Assembly, 18 Gauge, 1 Fitting(s)
Brand: Hamilton Company
SKU: 88987
Price: 208.00 ILS
Availability: InStock

Vendor: Hamilton Company

SKU: 88987

208.00 NIS

Stock on Request

In stock

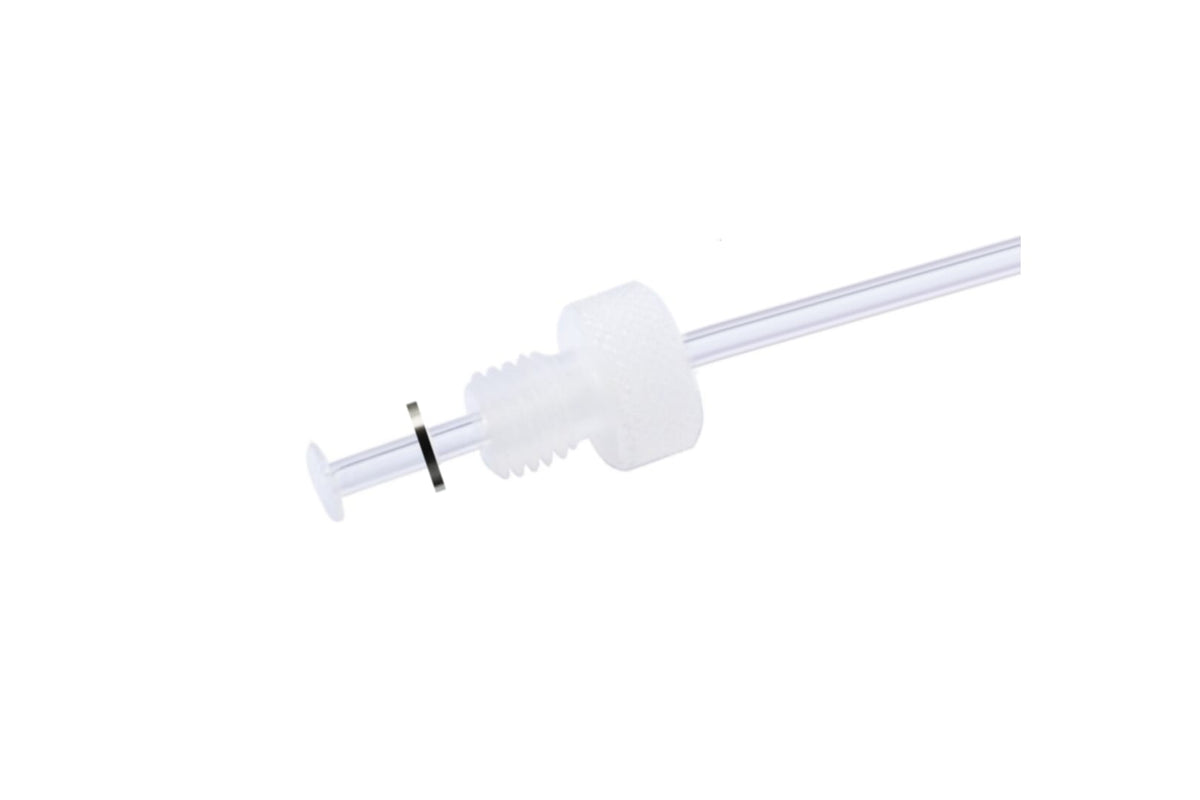

Hamilton's ¼”-28 tubing assembly features one precision machined, ¼”-28 (HV) PCTFE fittings with 24 inches of high-quality 18 G FEP tubing. Compatible with any flat-bottom ¼”-28 port. Hamilton’s FEP tubing and PCTFE fittings are chemically resistant, temperature resistant, and durable for a leak-free connection each time. Choose from a standard stock option or define a custom tubing length.

Specifications

Tubing Material	FEP
Washer Material	Stainless Steel
Gauge	18 gauge
Tubing Inner Diameter (I.D.)	0.043 in / 1.092 mm
Tubing Outer Diameter (O.D.)	0.075 in / 1.905 mm
Washer Inner Diameter (I.D.)	0.089 in / 2.261 mm
Washer Outer Diameter (O.D.)	0.199 in / 5.055 mm
Tubing Length	24 inches
Nut Length	HV (0.47")
Fitting Material	CTFE
Number of Fittings	1
Fitting Inner Diameter (I.D.)	0.089 in / 2.261 mm
Threads	¼"-28
Sales Quantity	1 each
Tubing End 1	1/4"-28 HV
Tubing End 2	Blunt

Documents

Specifications

Gauge 18 gauge
Sales quantity 1 each
Sub category Tubing Assemblies
