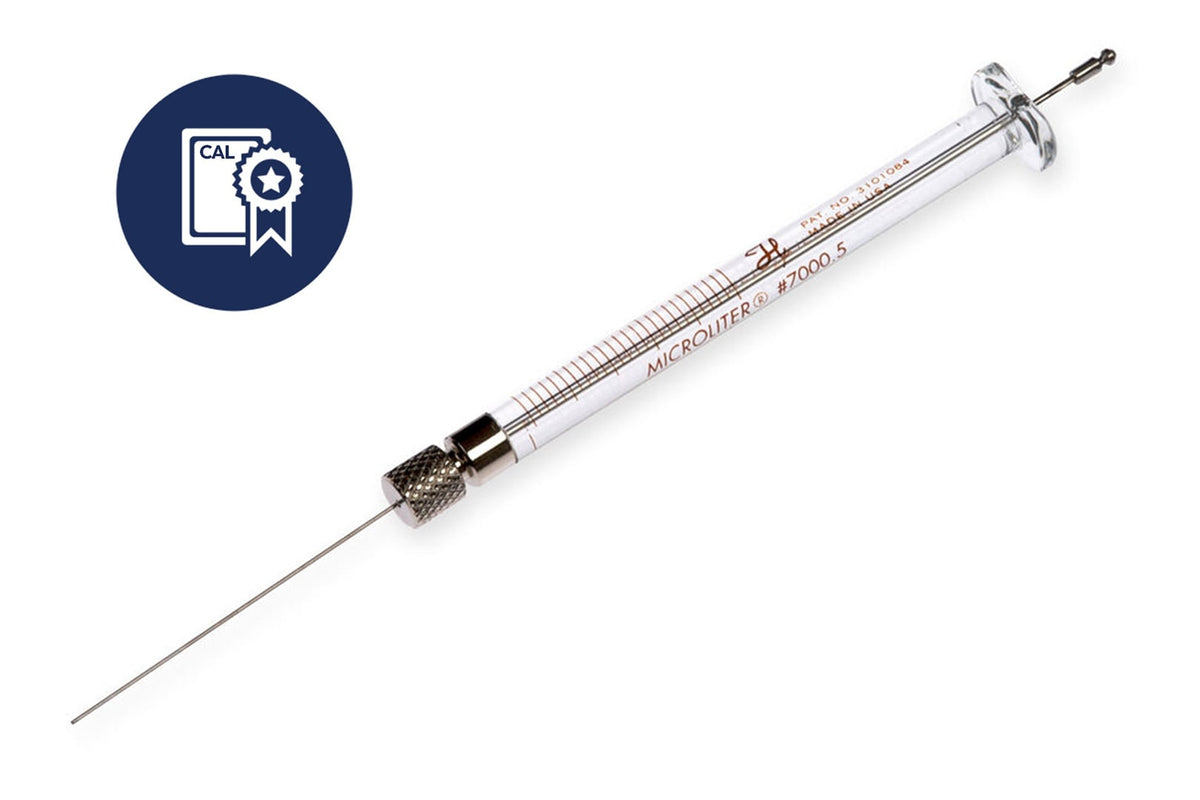

0.5 µL, Microliter Agilent Autosampler Syringe Special, Calibrated Syringe
Vendor: Hamilton Company
SKU: CAL86274
In stock
The 7000 series syringes are considered modified Microliter syringes for their unique zero dead volume design. This syringe series is ideal for dispensing volumes from 0.05 μL up to 5 μL. The fine gauge plunger wire extends all the way to the tip of the needle ensuring that all solvent is expelled from the needle. Therefore, it is not recommended to remove the needle or plunger.
| Model Number | Volume | Needle Inner Diameter (I.D.) | Stroke Length | Operating Pressure | Operating Temperature |
|---|---|---|---|---|---|
| 7000.5 | 0.5 µL | 0.104 mm | 60 mm | 41 MPa | 10 - 115 °C |
| 7001 | 1 µL | 0.145 mm | 60 mm | 41 MPa | 10 - 115 °C |
| 7101 | 1 µL | 0.145 mm | 60 mm | 41 MPa | 10 - 115 °C |
| 7002 | 2 µL | 0.206 mm | 60 mm | 41 MPa | 10 - 115 °C |
| 7102 | 2 µL | 0.206 mm | 60 mm | 41 MPa | 10 - 115 °C |
| 7105 | 5 µL | 0.325 mm | 60 mm | 41 MPa | 10 - 115 °C |
Specifications
| Volume | 0.5 µL |
|---|---|
| Syringe Type | Microliter |
| Syringe Series | 7000 |
| Termination | Special |
| Needle | Knurled Hub (KH) |
| Gauge | 26s gauge |
| Point Style | AS: Conical, Autosampler |
| Needle Length | 1.71 inches (43.4 mm) |
| Plunger Style | Agilent Plunger |
| Fluid Path | SST, Tungsten, Borosilicate Glass |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 6000 psig (413.7 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.049 inches (1.24 mm) |
| Barrel Outer Diameter | 0.260 inches (6.60 mm) |
| Needle Inner Diameter | 0.005 inches (0.13 mm) |
| Needle Outer Diameter | 0.019 inches (0.474 mm) |
| Std Needle Dead Volume | 0 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 7000.5 |
Documents
Specifications
- Autoclavable Yes
- Barrel inner diameter 0.049 inches (1.24 mm)
- Barrel outer diameter 0.260 inches (6.60 mm)
- Fluid path SST, Tungsten, Borosilicate Glass
- Gas sterilizable Yes
- Gauge 26s gauge
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle Knurled Hub (KH)
- Needle inner diameter 0.005 inches (0.13 mm)
- Needle length 1.71 inches (43.4 mm)
- Needle outer diameter 0.019 inches (0.474 mm)
- Plunger style Agilent Plunger
- Point style AS: Conical, Autosampler
- Pressure 6000 psig (413.7 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 0 µL
- Sub category Microliter Syringes
- Syringe model number 7000.5
- Syringe series 7000
- Syringe type Microliter
- Termination Special
- Volume 0.5 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
