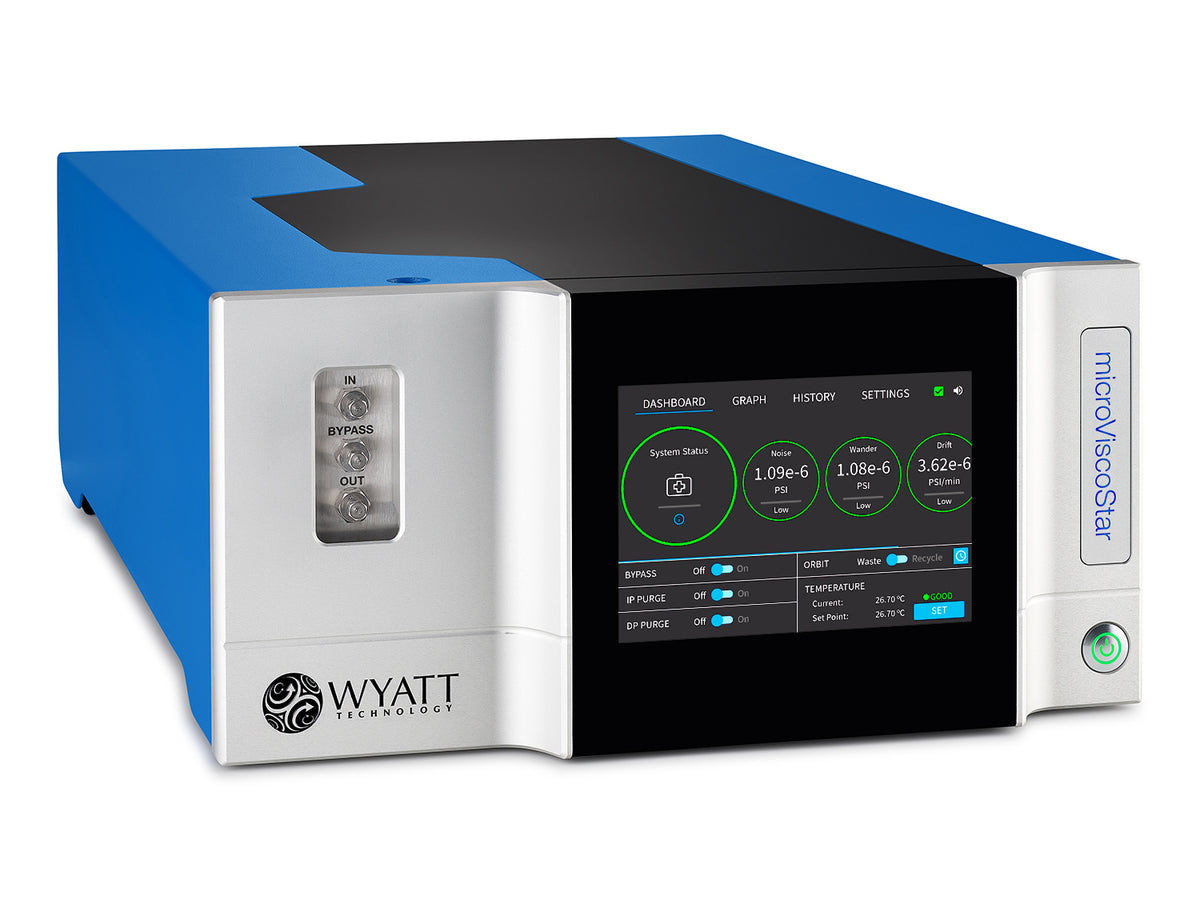

microViscoStar Online Differential Viscometer

Key benefits of the microViscoStar

• High sensitivity, equivalent to 5 ng of 100 kDa polystyrene in THF at 1.0 mL/min injected onto a standard GPC column
• High dynamic range of over 135,000:1. The full measurement range corresponds to over 13 mg/mL of 100 kDa polystyrene in THF
• Extended solvent compatibility with all-316 stainless steel transducers
• Temperature range from 4 °C to 70 °C for polymers or proteins that require a range of temperatures
• Minimal band broadening thanks to fast pressure transducers
• Pump pulse suppression to below 4 Pa (hardware alone) or 1 Pa (hardware + software) without loss of chromatographic resolution
• Automated capillary bridge tuning with no moving parts, to guarantee a perfectly balanced bridge, every run
• Enhanced thermal stability with drift of <1.25 Pa/hour

SEC-IV without MALS?

Yes, as much as we love MALS for optimal polymer analysis, it's true that there are occasions when it just won't fit the bill.

Universal calibration is a parallel technique to SEC-MALS for determining molecular weight, commonly used to characterize linear polymers. While universal calibration overcomes some of the problematic issues associated with column calibration by reference molecules, it does not account for non-ideal column behavior caused by chemical solute-column interactions or hyperbranching.

Universal calibration is particularly-well suited to replace MALS for:

• Strongly fluorescent polymers
• Weakly-scattering polymer/solvent systems with very low dn/dc values

The Mark-Houwink-Sakurada relationship makes use of empirical relationships between intrinsic viscosity and molar mass, specific to each polymer and solvent, to estimate molar mass from SEC-IV measurements. Of course, the best way to determine MHS coefficients is to measure them using SEC-MALS-IV and ASTRA!

Go to the Advanced Technology tab to learn more about the unique features of the microViscoStar.

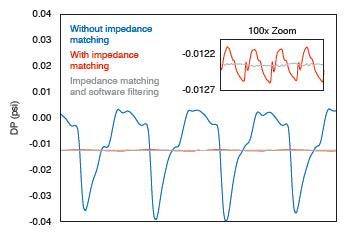

Patented pulse compensation technology in the microViscoStar eliminates pump fluctuations. At the hardware level, the bridge is impedance-matched for dynamic balance, greatly reducing the effect of pump pulses. An additional layer of software filtering eliminates residual pump pulses.

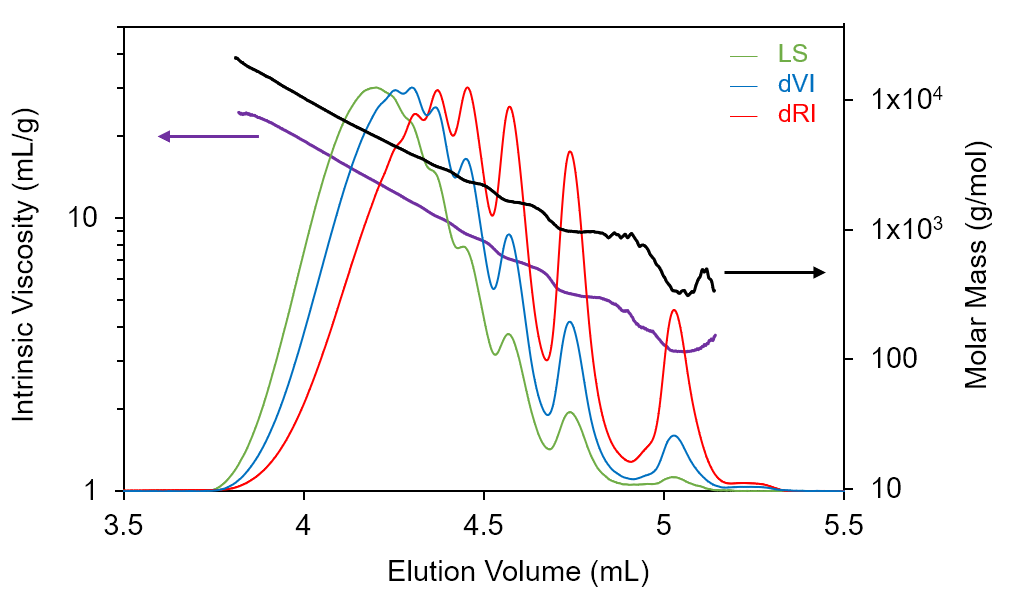

The microVisoStar maintains the narrow peaks and excellent resolution of UHPLC with maximum sensitivity. In this graph, the refractive index and specific viscosity chromatograms of an epoxy resin are overlaid with the molar mass and intrinsic viscosity results calculated from MALS and specific viscosity data, respectively, at each elution volume. The sample was separated on four Waters^® APC XT columns in series with pore sizes of 45, 125, 450 and 900 Å.
