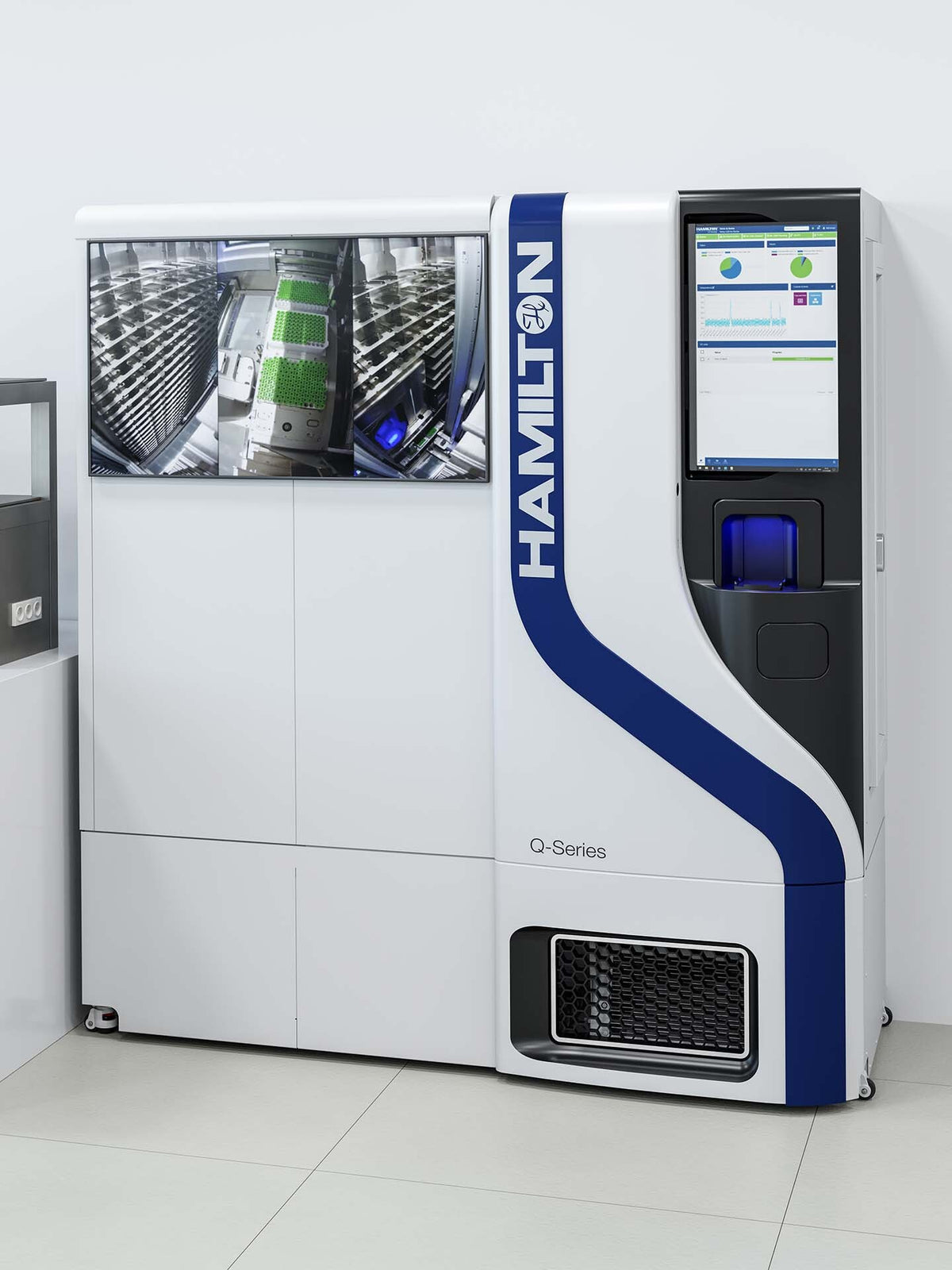

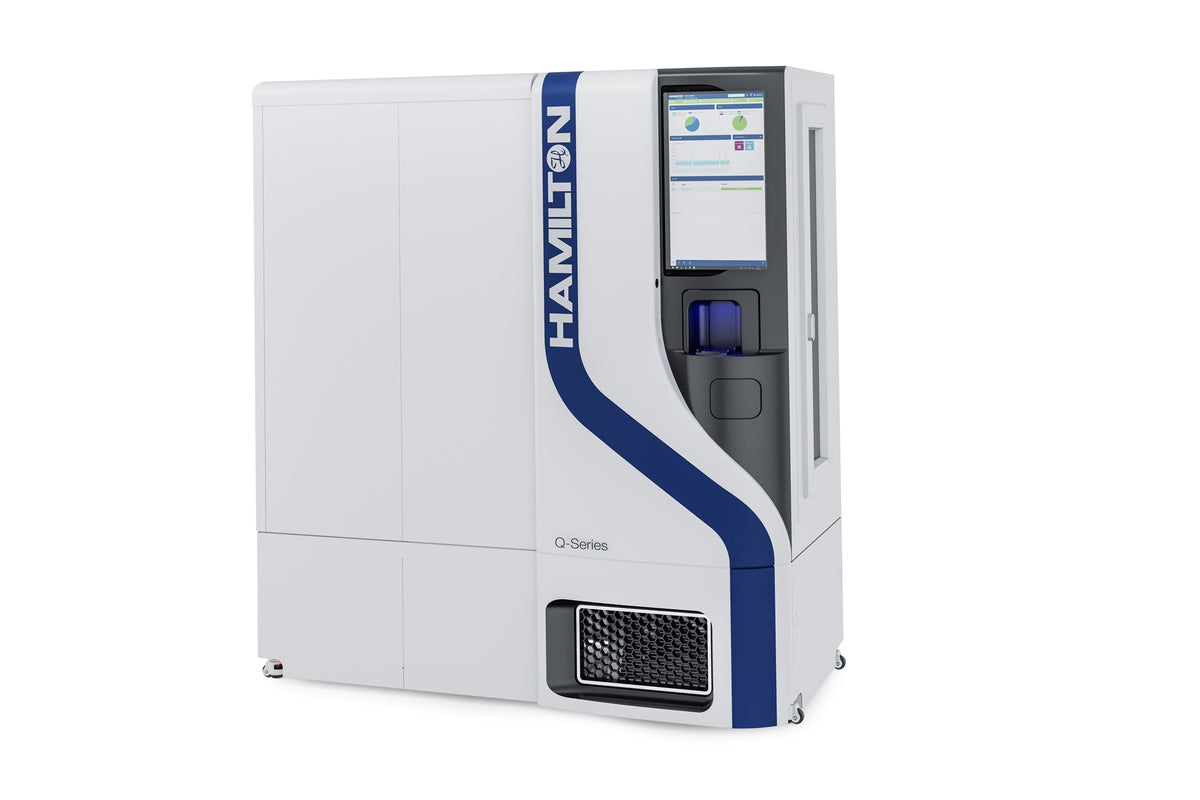

Verso Q75 Automated Sample Store

Hamilton’s Verso Q-Series laboratory freezer delivers compact automated sample storage for efficient management. The Verso Q20, Verso Q50, and Verso Q75 minus 20°C lab freezers offer flexible sample handling, seamless system integration, and full traceability, supporting high-throughput operations.

An Environmentally-Friendly Storage Solution

Verso Q-Series systems feature superior insulation technology for ultra-low energy consumption and a natural refrigerant to help reduce your lab's carbon footprint in a compact minus 20°C laboratory freezer.

Benefit from Convenience

Pick one or 1,000 samples at the touch of a finger. Jobs can run without supervision; simply input your pick list and move on to the next task.

Explore Verso Q-Series

Verso Q-Series automated laboratory freezer storage systems allow you to spend less time managing your samples.

Input/Output Module

Introduce and retrieve samples simply using the multifunctional Input/Output (I/O) module. This frees up time to work on more important tasks, such as your research.

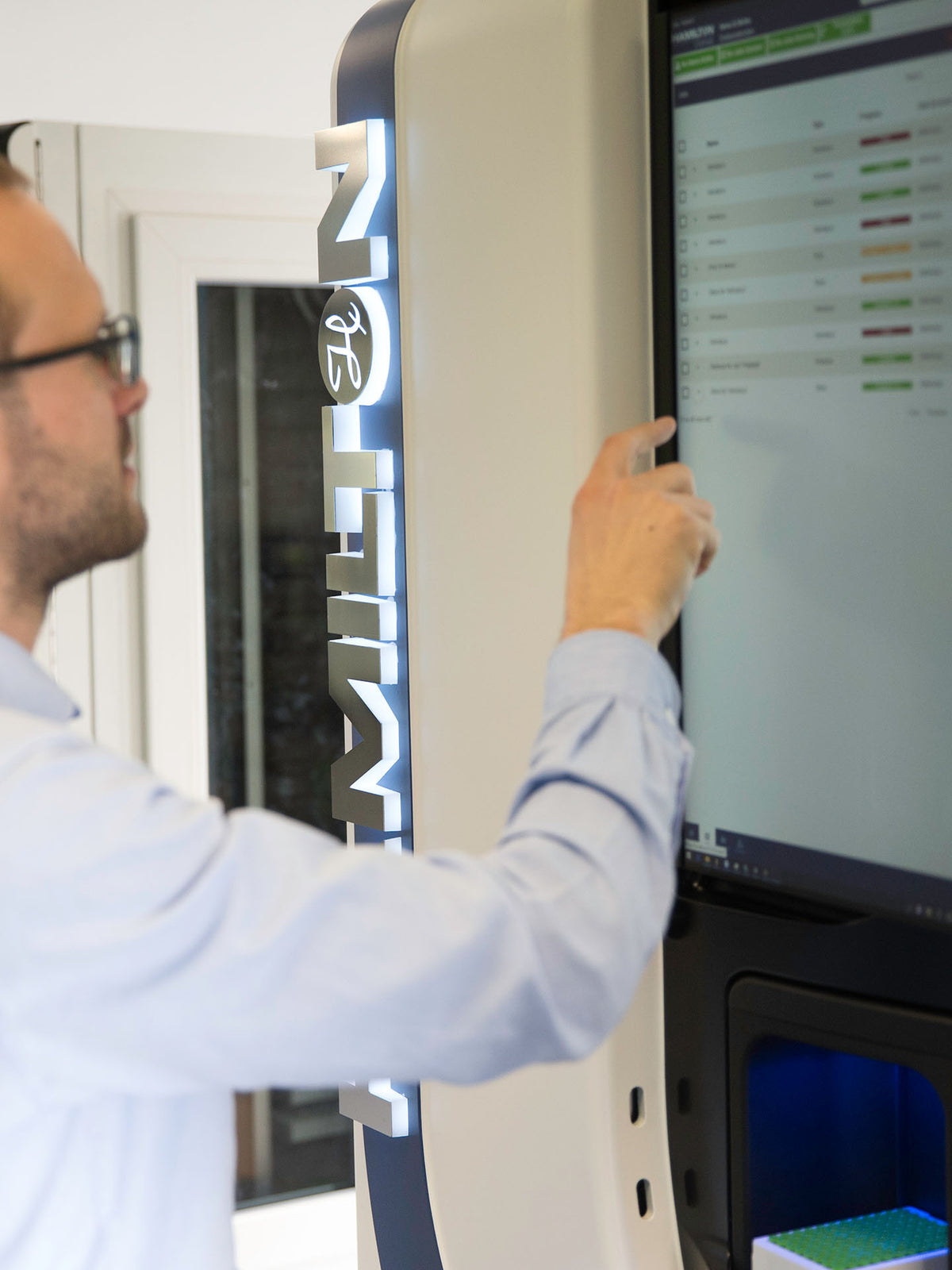

Touchscreen Monitor

The Touchscreen Monitor allows users to directly interact with INSTINCT S, making it quick and easy to navigate the software.

Minimize Downtime

Service to the system can be performed quickly and efficiently, as all major Verso Q-Series assemblies (picker, shuttle, etc.) are easily swappable.

Compact Footprint

Verso Q-Series platforms offer many of the accommodating features of a large system in a compact footprint, so your samples can be stored virtually anywhere you need them.

Location Independence

Using Verso Q-Series with an AMR allows the storage platform to be placed in a different location than where the processing system is situated.

High Flexibility

With an AMR, samples from multiple systems can be stored in the Verso Q-Series. Additionally, this setup is infinitely scalable.

Increase Productivity

By utilizing AMRs in the lab, low-value tasks like transporting samples can be performed around the clock to significantly boost productivity.

Specifications

• Height: 1.99 m (6 ft, 6.35 in)
• Width: 1.81 m (5 ft, 11.26 in)
• Depth: 80 cm (2 ft, 7.5 in)
• Shallow-Well Plates: 1,108
• 0.3 mL Tubes: 106,368
• 0.5 mL Tubes: 53,184
• 0.6 mL Tubes: 63,264
• 1.0 mL Tubes: 50,784
• 1.4 mL Tubes (Septum): 53,184
• 2.0 mL Tubes: 25,392
• Shallow-Well Plates: N/A
• 0.3 mL Tubes: 152,900
• 0.5 mL Tubes: 76,452
• 0.6 mL Tubes: 90,942
• 1.0 mL Tubes: 73,000
• 1.4 mL Tubes (Septum): 76,452
• 2.0 mL Tubes: 31,740
• Storage Temperature: Ambient to -20°C
• Plates: 1D and 2D
• Racks: 1D and 2D
• Tubes: 1D and 2D

Documents

• Verso Q Series Product Overview (Brochure)
• Automated Serum Bank Application (Brochure)
• Automation In Pharma Qc Application (Brochure)

Ordering Information
