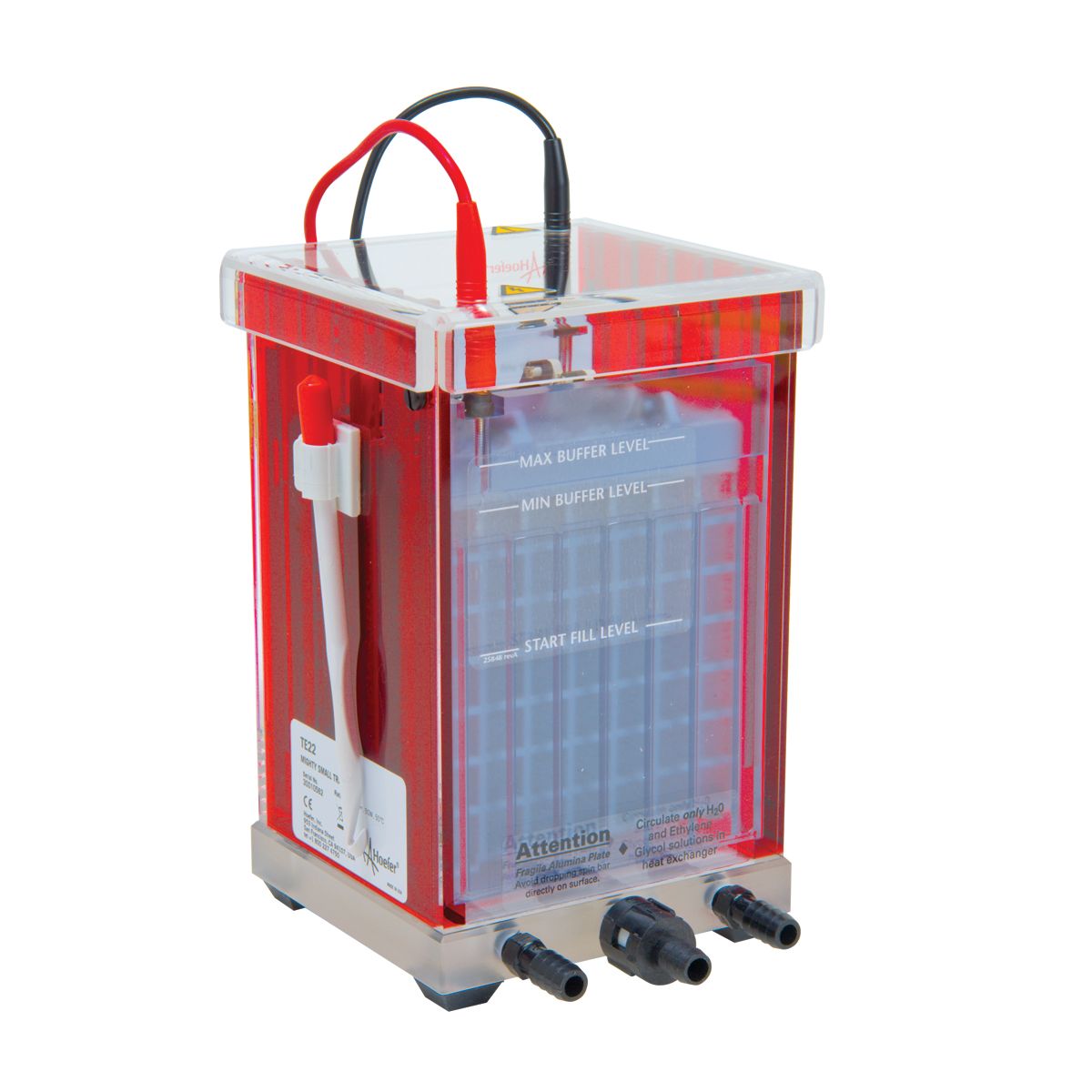

TE22 Mighty Small Transfer Tank

The TE22 Mighty Small Transfer Tank quickly and efficiently transfers proteins and nucleic acids from small gels to nylon, nitrocellulose or PVDF membranes. Maximum Gel Size 9 x 10 cm.

• Transfer as many as four small gels, up to 9 x 10 cm in less than an hour
• Uniform and strong electric field—supports efficient and even transfers
• Color-coded, easy to assemble and load cassettes—ensures proper orientation during transfer
• Superior tank design allows the cassettes to apply equal pressure across the stack—prevents gel distortion
• Built-in ceramic heat exchanger—provides excellent temperature control when used with an external cooling water bath
• Built-in alumina-covered cooling channel provides excellent temperature control with no more than a 5°C temperature increase during a typical run

Includes:

• Lower Chamber with Heat Exchanger
• Safety Lid with High Voltage Leads
• Electrode Panels, 2 pcs
• Cassettes, 4 pcs
• Foam Sponges, 6 mm thick, 4 pcs
• Foam Sponges, 3 mm thick, 8 pcs
• Cassette Hook
• Blotter Paper (9 x 10.5 cm), 25 sheets

Specifications:

Operation Guide
