SUBHT High Throughput Submarine Gel Electrophoresis Unit

Name: SUBHT High Throughput Submarine Gel Electrophoresis Unit
Brand: Hoefer Inc.
SKU: SUBHT
Price: 3571.00 ILS
Availability: InStock

Vendor: Hoefer Inc.

SKU: SUBHT

3,571.00 NIS

Stock on Request

In stock

The SUBHT High Throughput Submarine Gel Electrophoresis Unit is ideal for high throughput screening applications like single strand polymorphism (SSP) analysis following PCR. This horizontal gel unit can resolve DNA strands from 50–1000 base pairs in 30 minutes and accommodate up to 120 samples.

Features & Benefits:

Fast, error-free loading—Load an entire 96-well plate using a multichannel pipette

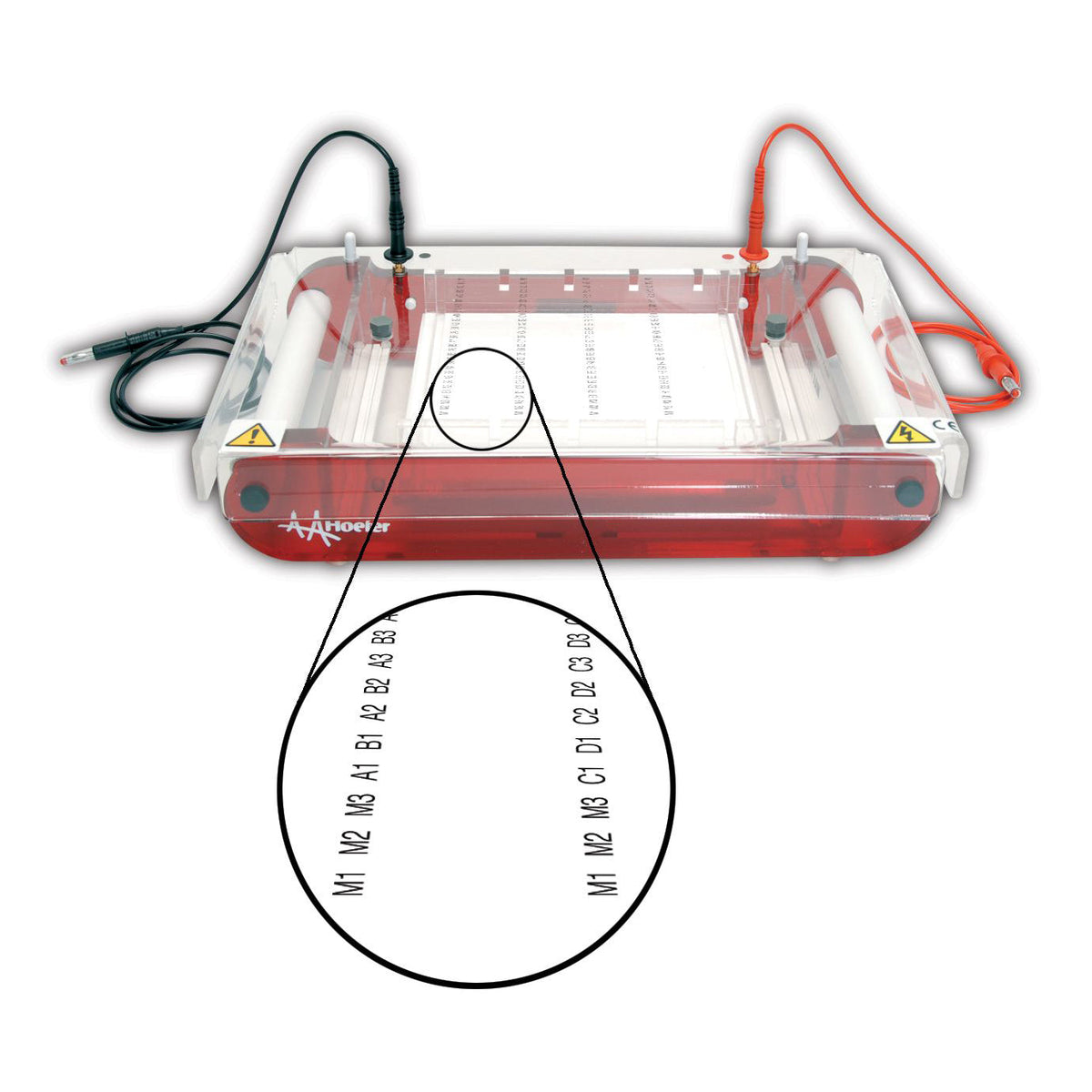

Simplified analysis—Fluorescent labels for each sample printed on a UV transparent gel tray allows for instant sample identification (matched to a 96-well plate) during post-run visualization
High throughput—Run up to 120 samples (96-well plate + 24 control and/or marker samples) in 30 minutes
Better reproducibility—Eliminate variability caused by running buffer pH drift and ionic gradient formation with optional buffer recirculation capability
Reduced buffer needs—Compact tank design needs less buffer to cover gel which not only reduces buffer consumption but provides greater control of voltage gradients and run times
Maximum flexibility—Fully compatible with a wide range of combs and accessories to meet all your high throughput and standard gel analysis needs

Includes:

Buffer Chamber Assembly
Safety Lid
High Voltage Leads
Fluorescent Labeled Running Tray with Casting Gates
1 mm thick, 30 well combs, 4 pcs
Colored Loading Strips
Buffer Recirculation Ports, 2 pcs

Specifications:

Gel Dimensions (W x L)	15 x 15 cm
Maximum Buffer Volume	1.2 L
Maximum Power Settings	300 V, 200 mA, 60 W
Maximum Sample Capacity	120
Maximum Running Temperature	45°C
Indoor Use	4 to 40°C
Humidity	Up to 80%
Unit Dimensions (W x L x H)	21.5 x 33.5 x 7 cm
Unit Weight	2.94 kg

Specifications

Gel dimensions 15 x 15 cm
Humidity Up to 80%
Max buffer volume 1.2 L
Max power settings 300 V, 200 mA, 60 W
Max sample capacity 120
Max temperature 45°C
Sub category Specialty Horizontal Units
Unit dimensions 21.5 x 33.5 x 7 cm
Unit weight 2.94 kg
