The Hamilton SmartDrop system verifies and adjusts droplet volumes in real-time, ensuring consistent dispensing performance across all channels.
Precision Droplet Control
Harness high-speed bright-field imaging combined with intelligent software, SMARTDROP delivers non-contact, real-time volume calibration and droplet validation to deliver precise liquid characterization that supports accurate results across applications.
Real-Time Droplet Imaging
SMART DROP captures droplets mid-flight in real time to ensure precision, improve QC, and support consistent volume delivery.
Optical Droplet Control
SMART DROP delivers high-frequency droplet imaging and intelligent volume control, offering scientists precise monitoring, unmatched insight, and control in ultra-low volume workflows. Use it as an add-on or embedded module for consistent and accurate droplet generation.

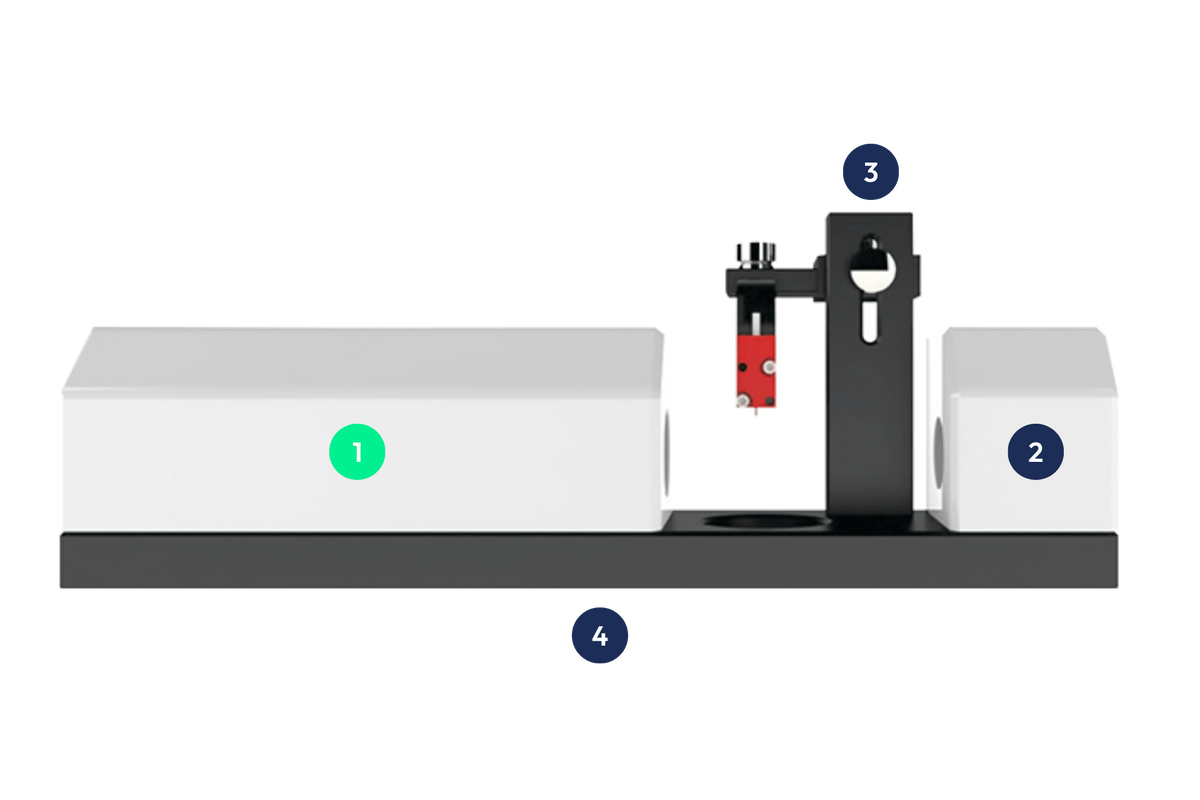

Bright-Field Optical Camera
High-speed camera captures droplets at up to 40 Hz in bright-field mode, visualizing shape and breakoff for real-time droplet validation.

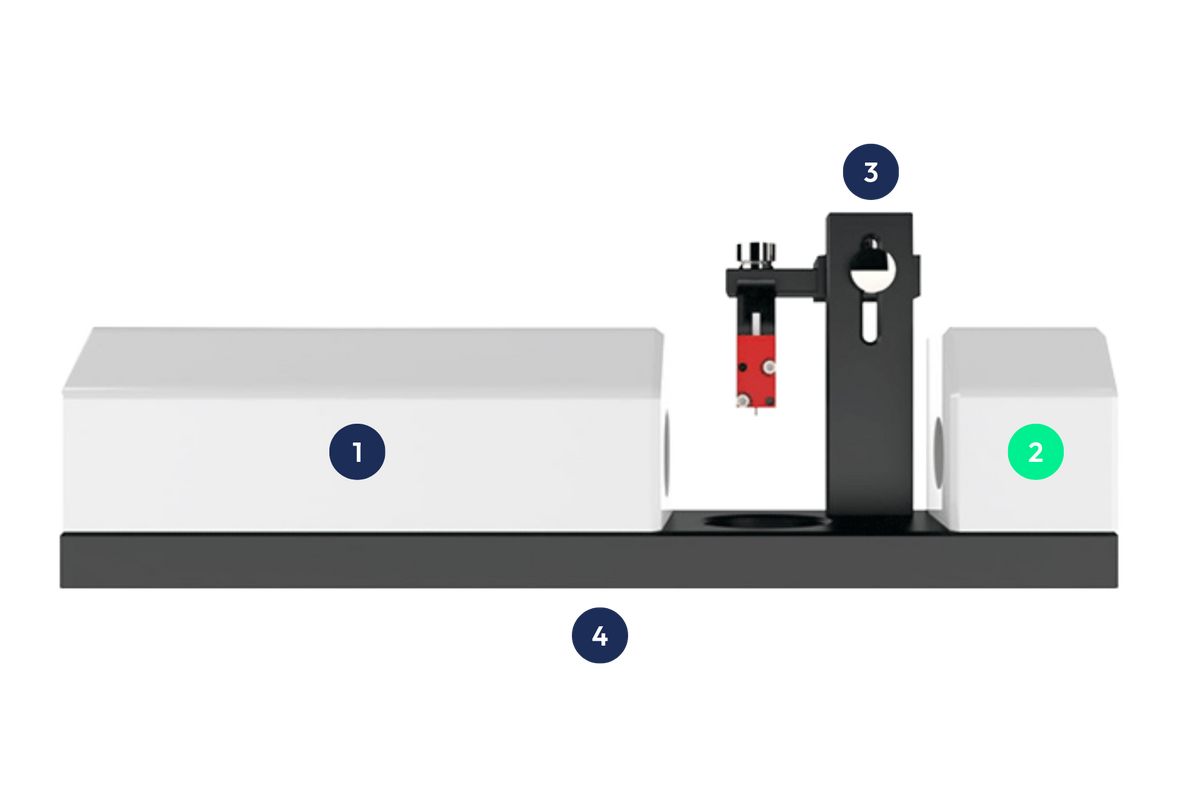

Precision Light Source
Aligned LED illumination ensures optimal contrast for droplet imaging, supporting accurate detection of volume and satellite drops.

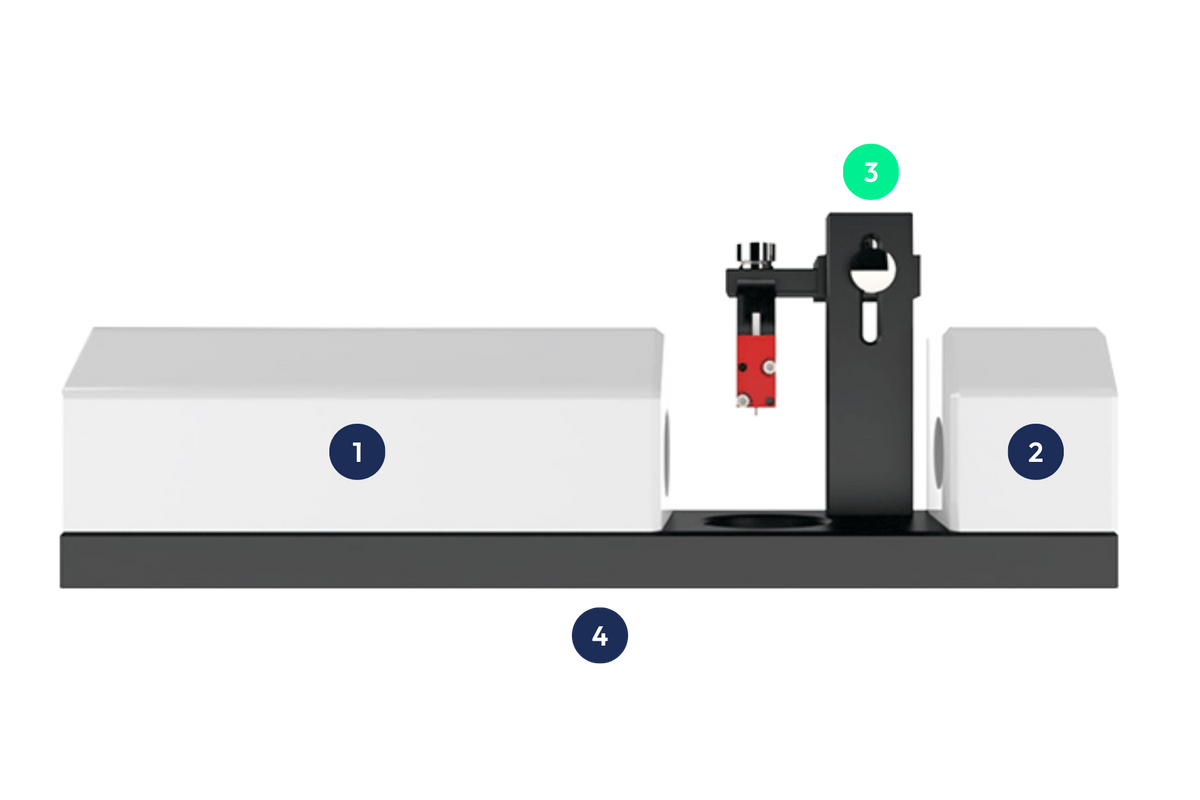

Dispenser Mounting Holder
Securely holds PIPEJET® or SIJET dispensers in the correct alignment for calibration, supporting flexible and repeatable setups.

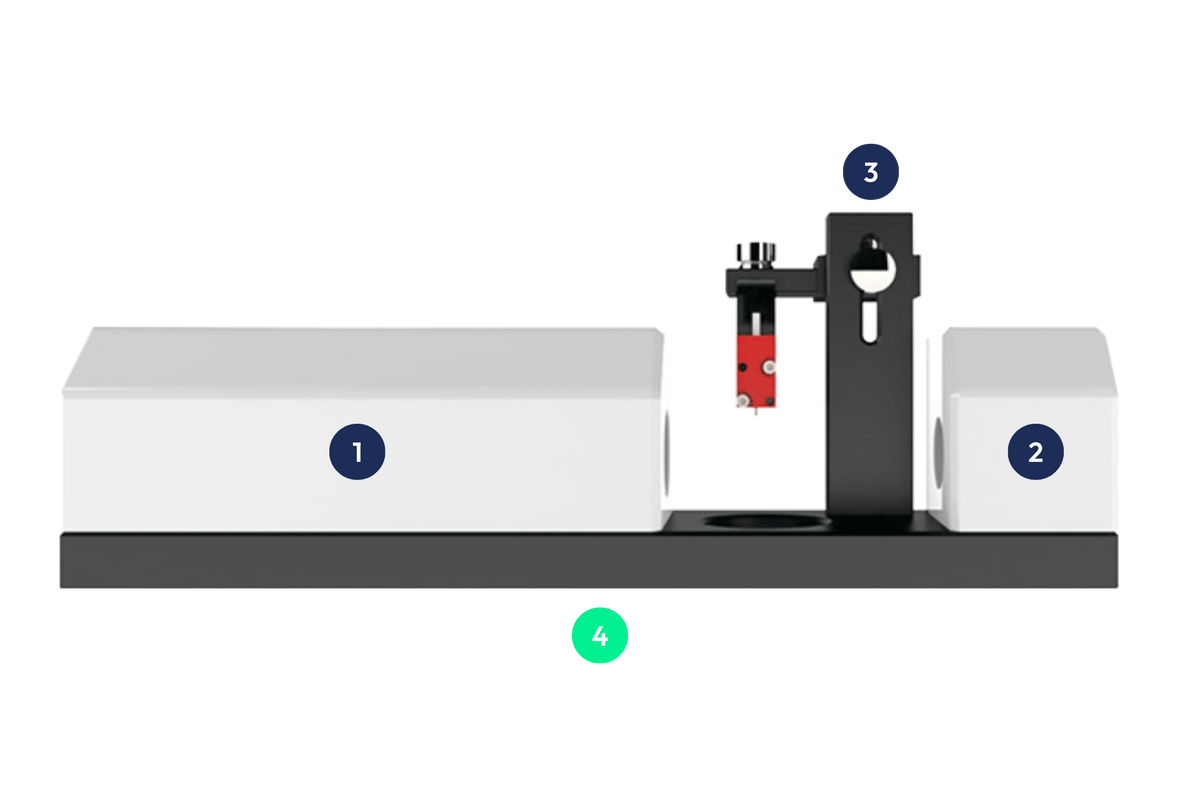

Compact Integration-Ready Design
SMARTDROP’s small footprint fits benchtop use or installs directly into the BIOSPOT® ARC system or custom OEM platforms.
SMARTDROP Kit Components
The SMART DROP Kit offers a complete plug-and-play setup for evaluating real-time droplet measurement and process control. Ideal for users already working with PIPE JET or SI JET technology, it provides a straightforward way to characterize droplet behavior and validate volume delivery.
SMARTDROP Module
Includes high-speed camera, LED light source, and secure dispenser mount for PIPEJET or SIJET. Enables in-flight droplet imaging and non-contact volume calibration on the bench or within a custom dispensing platform.
Control Software USB
Plug-and-play USB stick with pre-installed SMARTDROP software. Enables users to configure trigger delay, view droplet images, and optimize dispensing protocols with full parameter control.
Waste Containers
Includes five durable aluminum waste containers for clean and efficient liquid disposal during calibration. Reusable and compatible with most benchtop setups.
Connectivity Accessories
Includes all required USB and power cables to connect SMARTDROP to a PC and the Control Electronic 200. Ensures reliable setup without needing additional components.
Specifications
-
Height: 8.2 cm (3.23 in)
-
Width: 8 cm (3.15 in)
-
Depth: 22 cm (8.66 in)
-
Weight: 0.8 kg
Documents
Ordering Information
| Part No. |
Description |
| BSC-30102 |
SmartDrop System BS |
