The shiroGEL vertical 20 offers application flexibility and is distinguished by its ease of gel casting and set-up, requiring only four screws to secure up to four 20×20 cm gels. This vertical screw clamp technology distributes pressure evenly along the height of gel rather than in the centre to eliminate plate bowing and gel compression, while maintaining a leakproof seal during casting. A built-in inner buffer chamber within the PAGE insert allows set up to be completed without inclusion of an upper buffer chamber. These systems are ideal for 1D and 2D SDS-PAGE, native, preparative, gradient and high resolution nucleic acid electrophoresis.
Large format vertical gel system
Electroblotting and gel electrophoresis possible in same universal gel tank
Quick assembly system for ease of use
Complete system allows casting of gels and running of gels at same time increasing efficiency
Dual purpose PAGE insert eliminates time-consuming transfer of glass plates between separate casting and gel running components
Glass plates with bonded spacers assure clean well formation, correct alignment for leak-free casting and eliminates need for manually aligning spacers
Casting stand design ensures leak-free casting even if glass plates are misaligned

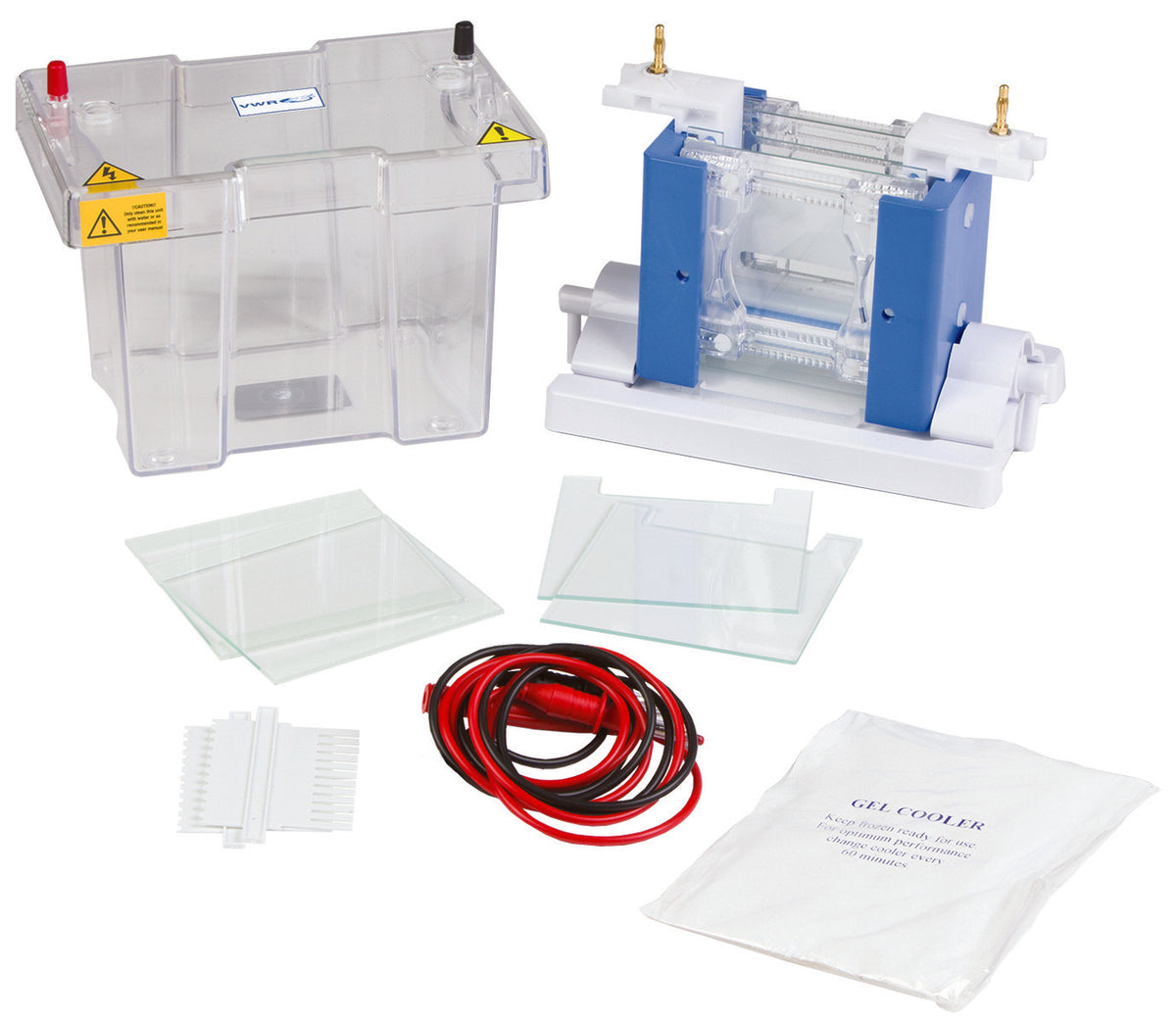

Delivery: Each shiroGEL vertical 20 system includes glass plates, 2×24 sample (1 mm thick) combs, cooling coil and casting base. The shiroGEL vertical 20 dual casting system also includes an external casting stand (without electrodes). Electroblotting insert available separately.
