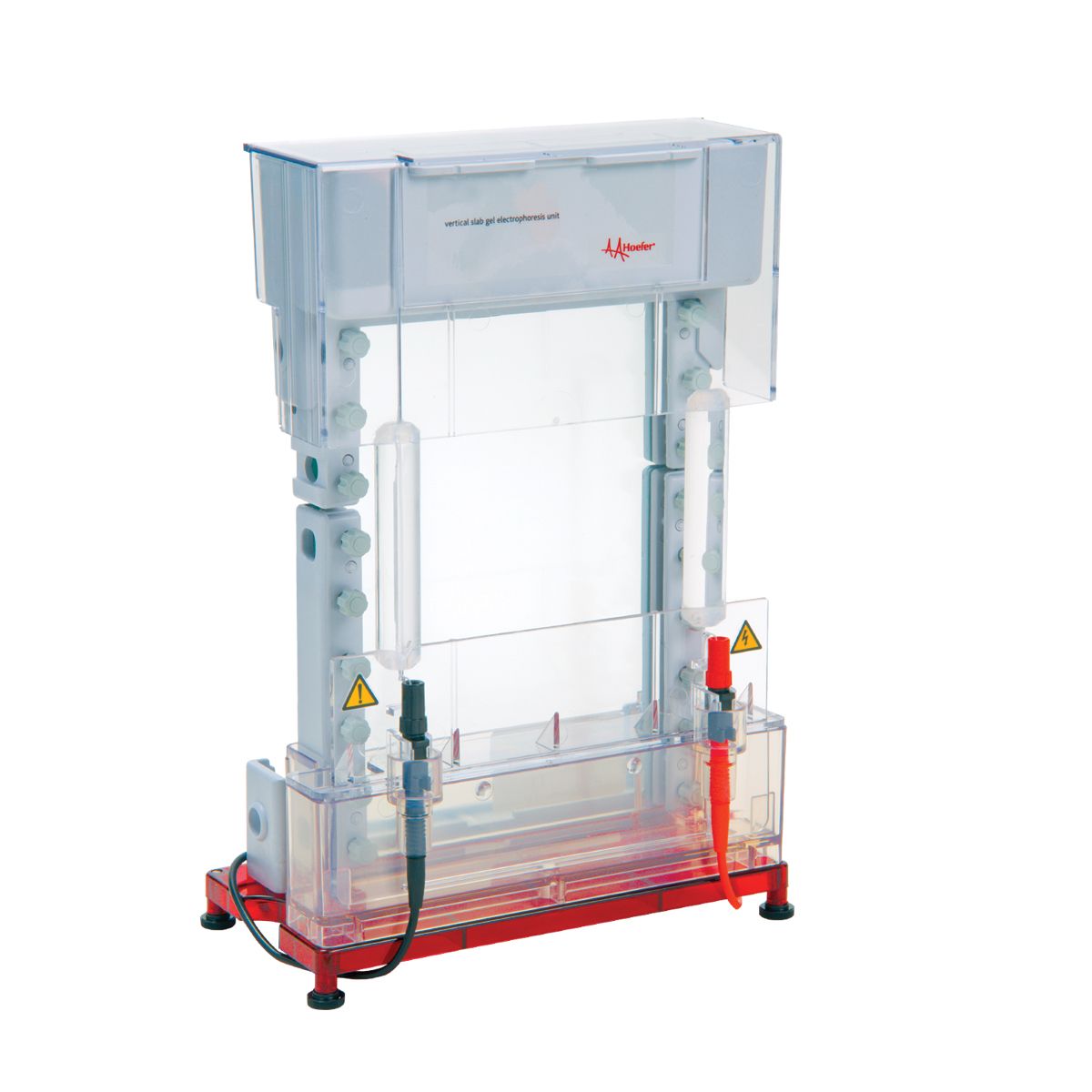

The tall, air-cooled SE410 is a compact, rugged, and economical protein electrophoresis unit ideal for educational laboratories with multiple users.
Welcome to click on YouTube to watch in full screen.
Features:
- Maximum glass plate size 18 x 24 cm
- Rugged injection molded construction is durable and assembles easily
- Run two gels with the addition of a divider plate
- Built-in casting stand seals leak free
- Choose from a wide variety of accessories
- Plates, clamps, spacers, and combs are interchangeable with the SE600 Series
Complete Unit (SE410-15-1.5) Includes:
- Lower Buffer Chamber/Casting Stand on Leveling Base with High Voltage Leads
- Upper Buffer Chamber
- Safety Lid with Electrodes
- Glass Plates, 18 x 24 cm, 2 pcs
- Clamp Assemblies, 8 cm, 2 pcs
- Clamp Assemblies, 16 cm, 2 pcs
- Cams, 2 pcs
- Slotted Gasket for Upper Buffer Chamber
- Bubble Level
- Laminated Gasket for Casting Stand
- Spacer-Mate Alignment Template
- Wonder Wedge-Plate Separation Tool
- Gel Seal
- Comb, 15-well, 1.5 mm thick
- Spacers, 1.5 mm thick, 2 cm wide, 2 pcs
Basic Unit (SE400) Includes:
The same as above without the combs and spacers. Order one SE511 comb and one set of 24 cm long spacers separately.
Specifications:
| Glass Plate Size (W x H) |
18 x 24 cm |
| Spacers |
0.75 mm, 1.0 mm, 1.5 mm |
| Maximum Power Settings |
500 V, 60 mA, 20 W |
| Maximum Temperature |
45°C |
| Indoor Use |
4 to 40°C |
| Humidity |
Up to 80% |
| Unit Dimensions (W x H x D) |
24 x 36 x 15 cm |
| Basic Unit Weight |
3.60 kg |
