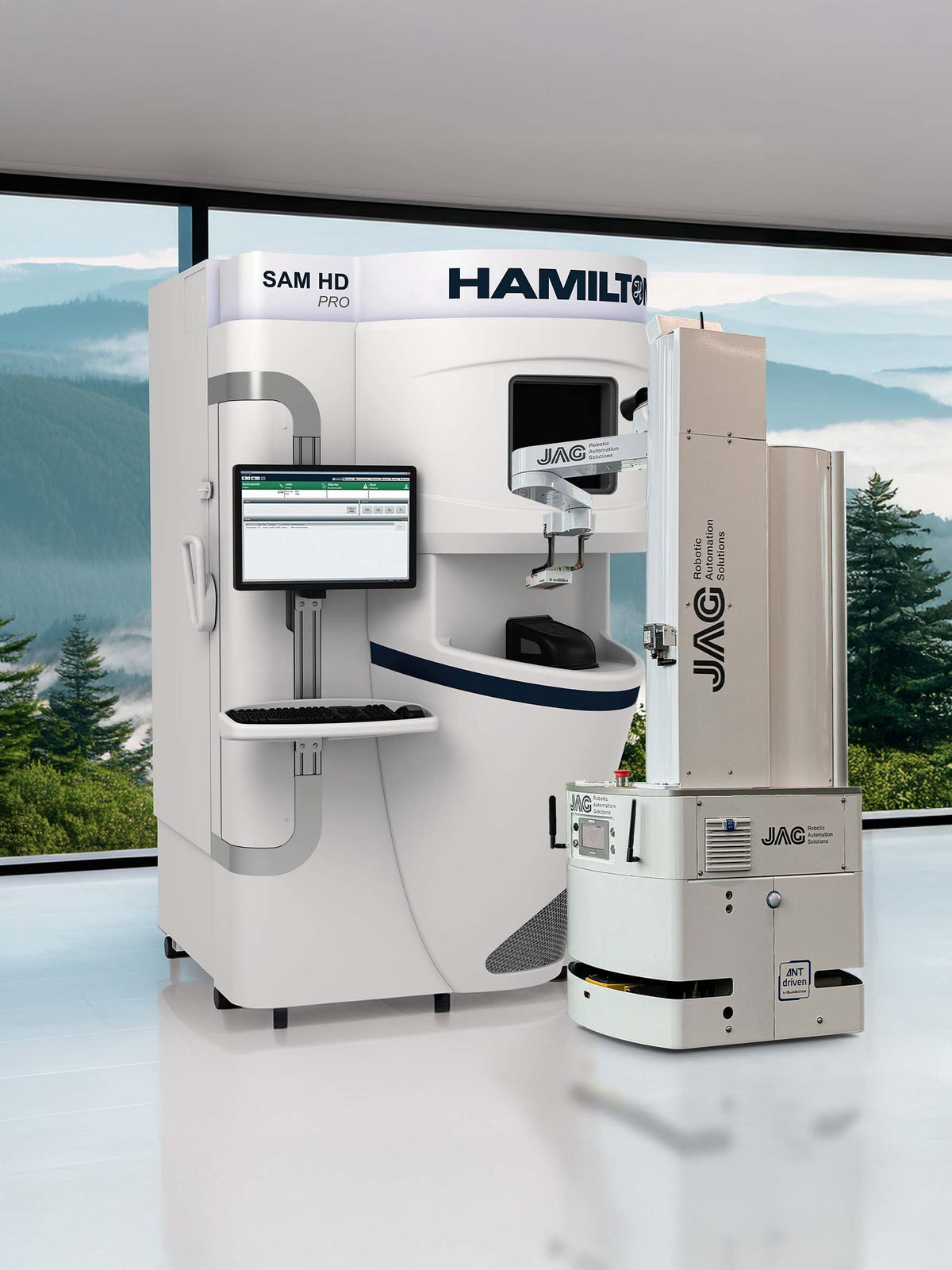

SAM HD Pro Automated Sample Store

SAM HD Pro is an Ultra-Low Temperature (ULT) lab freezer that offers secure storage, and eliminates heat and moisture to prevent freeze-thaw cycles for tubes and plates at -80°C. Its compact design provides high-density sample storage with a minimal footprint, ensuring sample integrity.

Flexibility Enhances Function

Different labware types can be picked without the hassle of tooling changes and without compromising the integrity of unpicked samples.

Unrivaled Flexibility

Multiple tube and/or plate types can be stored together in the lab freezer to accommodate varying sample collection workflows.

Explore SAM HD Pro

SAM HD Pro is the latest version of the SAM HD lab freezer for sample management. Like its predecessor, it is a compact solution designed to safely and securely store valuable samples at minus 80°C in a frost-free environment.

Touchscreen Monitor

The new Touchscreen Monitor allows users to directly interact with the INSTINCT S, making it quick and easy to navigate the software.

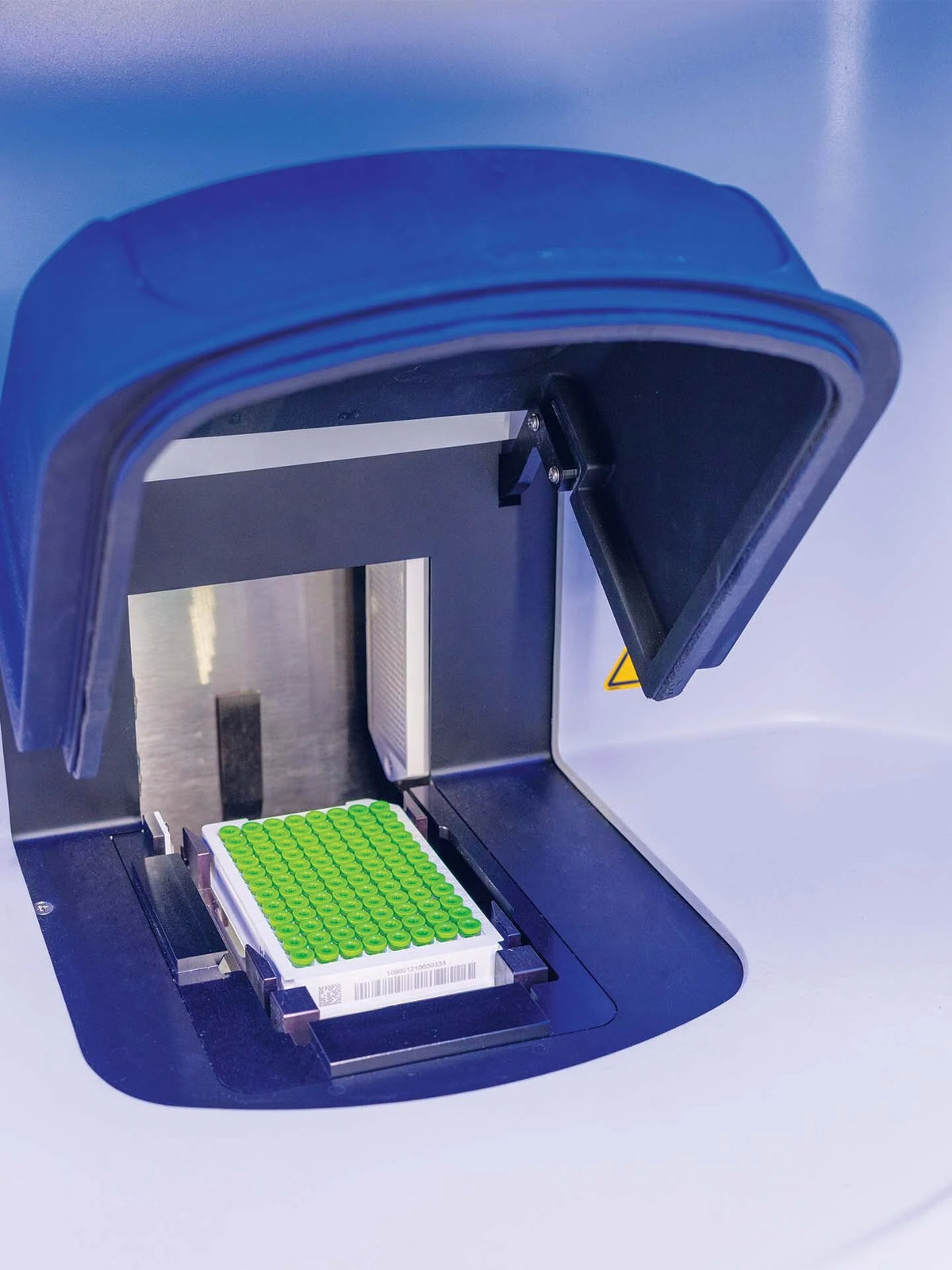

Input/Output Module

Quick and secure sample access as the system retrieves samples in less than 70 seconds and delivers them directly to the I/O Module.

System Enclosure

Environmentally-controlled enclosure provides optimal conditions for storing and processing samples at -80°C.

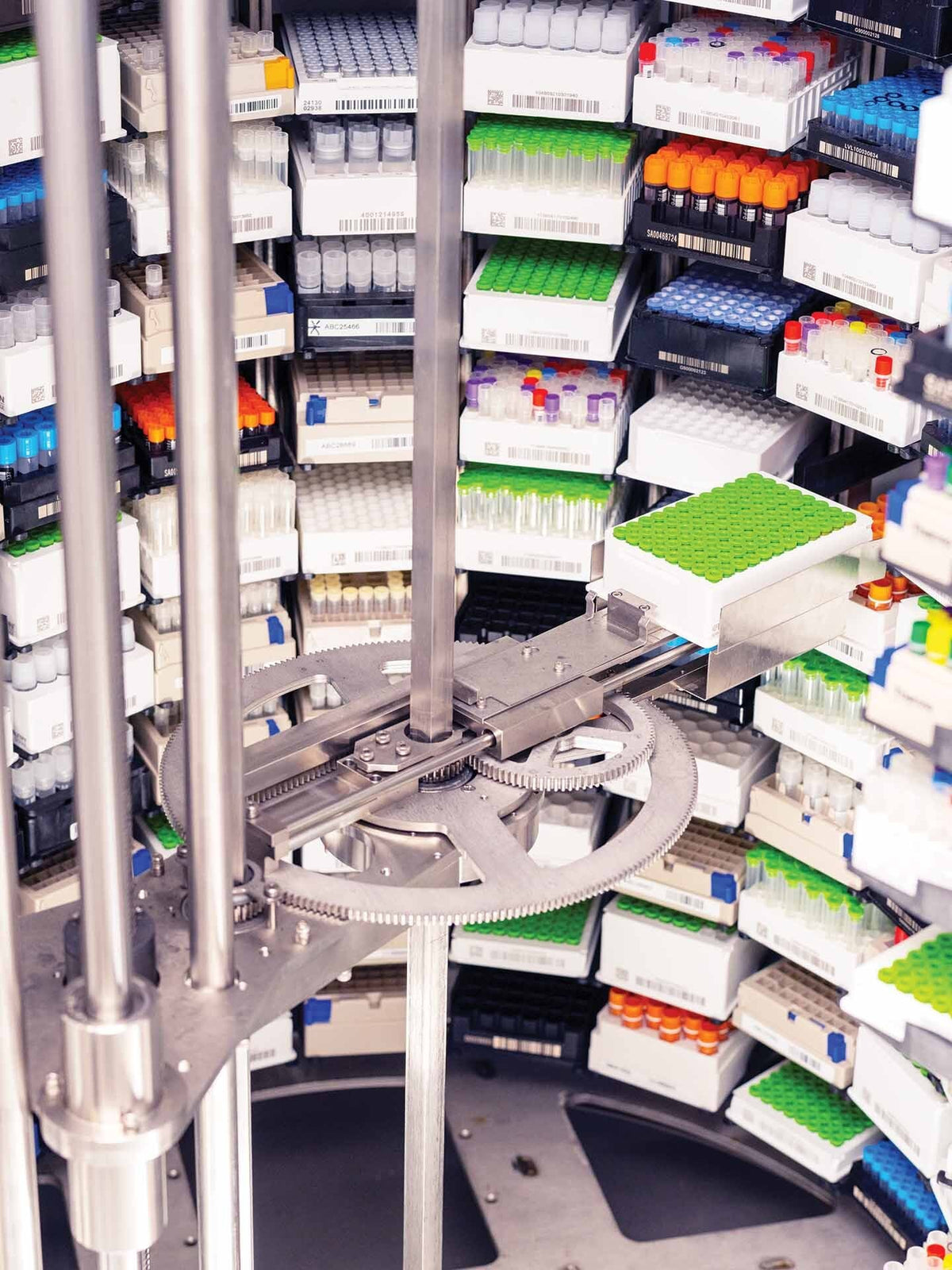

Picker Window

SAM HD Pro's Picker Window gives users a unique look into the system while a pick job is running. During a job, the interior is lit up to allow observation of the picker in motion.

Efficiency Meets Security

To maintain sample integrity, the system eliminates heat and moisture from entering the system and causing freeze-thaw cycles. The active automation is separated from the sample storage compartment to eliminate heat from affecting the samples. Unlike manual freezers, this sample freezer door remains closed to prevent moisture and temperature fluctuations.

The environment is continuously monitored, even during picking, ensuring the samples never reach critical sample temperatures. Tubes and plates within the lab freezer are picked in a minus 20°C environment. A standard UPS and LN2 backup is provided to help mitigate typical disaster scenarios and ensure samples are kept cold and safe.

Ultimate Sample Protection

SAM HD Pro's RGB LED Picker Lighting was designed to protect light-sensitive samples, safeguarding their integrity.

Enjoy peace of mind knowing that your samples are safe in SAM HD Pro's continuously monitored environment. A complete chain of custody for each sample is available, as the system automatically tracks and records the movement of all samples.

Specifications

• Height: 2.22 m (7 ft, 3.4 in)
• Width: 1.39 m (4 ft, 6.72 in)
• Depth: 1.5 m (4 ft, 11.06 in)
• Shallow-Well Plates: 810
• 0.3 mL Tubes: 59,712
• 0.5 mL Tubes: 34,080
• 0.6 mL Tubes: 34,080
• 1.0 mL Tubes: 28,800
• 1.4 mL Tubes (Septum): 34,080
• 2.0 mL Tubes: 14,448
• Shallow-Well Plates: N/A
• 0.3 mL Tubes: 85,836
• 0.5 mL Tubes: 48,990
• 0.6 mL Tubes: 48,990
• 1.0 mL Tubes: 41,400
• 1.4 mL Tubes (Septum): 48,990
• 2.0 mL Tubes: 18,060
• Storage Temperature: -80°C
• Plates: N/A
• Racks: 1D
• Tubes: 1D and 2D (Side) and 2D (Bottom)

Documents

• Sam Hd Pro Product Overview (Brochure)

Ordering Information
