Discover nanoliter precision with the PIPEJET Dispenser, an easy, contactless, drop-on-demand dispensing. Ideal for testing, prototyping, and future automation integration.
Simplified Liquid Handling
No liquid class calibration required. Just load your liquid and start dispensing, even with challenging or unfamiliar fluids.
High Precision in Every Drop

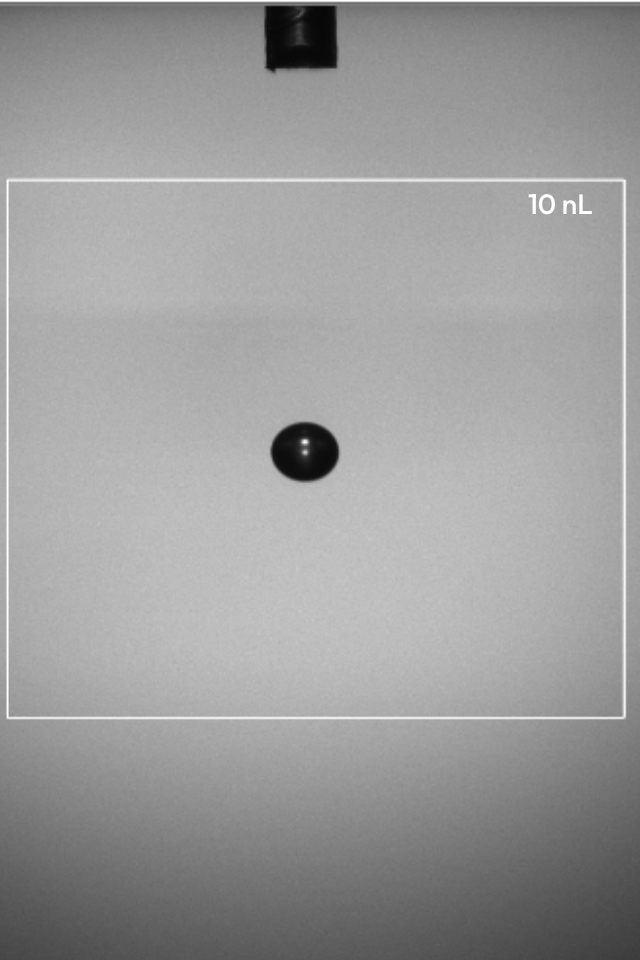

Deliver highly accurate nanoliter dispensing with piezo-actuated control, ensuring consistent, reproducible results for various liquid types.
Engineered for Precision Integration
The PIPE JET® Nano Dispenser is built for precise nanoliter dispensing through a mechanically simple yet highly flexible design. Its compact size, modular components, and piezo-actuated positive displacement system make it ideal for assay miniaturization and OEM integration. From microtiter plate applications to custom automation, each element supports accurate, reproducible performance without requiring complex fluidics or calibration.
Compact 9 mm Format
With a slim 9 mm profile, the PIPEJET® fits standard 96-, 384-, or 1536-well plate formats. This compact size allows integration into dense, multi-channel dispensing systems and miniaturized workflows.
Piezo Stack Actuator
The core of the PIPEJET® is a piezoelectric stack that drives the system with sub-micron precision. Its fast, consistent actuation ensures high-frequency, reproducible droplet generation with minimal energy input.

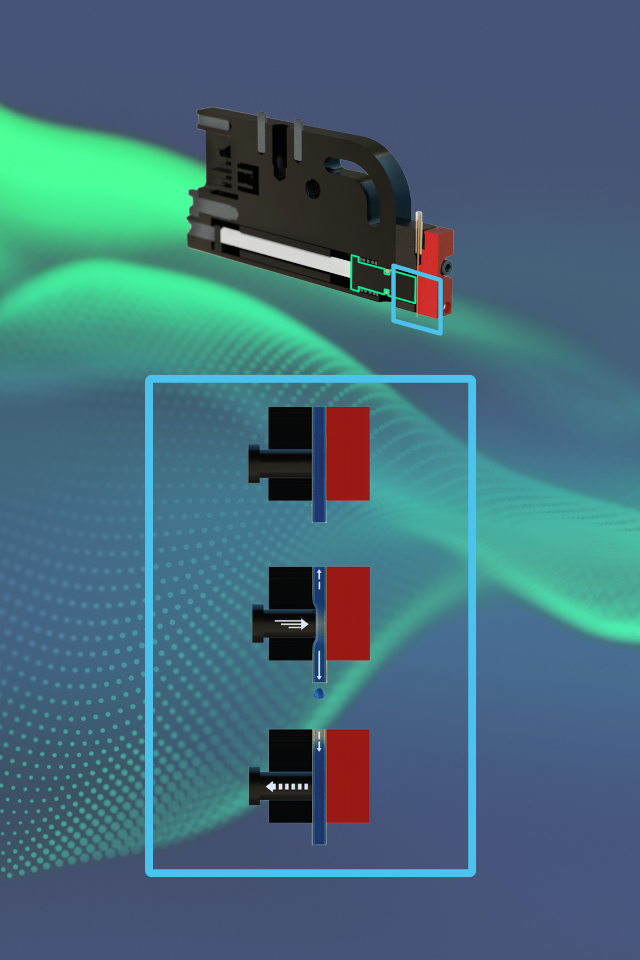

Positive Displacement Piston
The piezo actuator controls a miniature piston that compresses the dosing pipe from the outside. This contact-free interaction displaces a precise volume of liquid to form each nanoliter droplet.
Interchangeable Pipe Guide
The pipe guide secures the flexible dosing pipe in position. It is modular and can be exchanged to fit various pipe diameters, enabling volume flexibility from 2 to 70 nanoliters.
Disposable Dispensing Pipe
The PIPEJET® uses a chemically resistant, inert polymer pipe. Deformation-based actuation ensures that no internal components come into contact with the liquid, minimizing contamination and cleaning requirements.
Easy Mechanical Integration
An M4 threaded interface on the top of the dispenser provides a secure mounting point, enabling fast, stable integration into custom holders or automated platforms.
Feasibility Starts Here
The PIPE JET ® Nano Dispenser Kit is the easiest way to explore non-contact, nanoliter dispensing. Designed for rapid setup and ease of use, the kit includes everything needed to begin dispensing immediately after installation. Simply unbox, install the software, connect the control unit, and you’re ready to dispense. Ideal for early feasibility testing or lab-based experiments, the kit offers a reliable starting point for precision workflows.
Mounting Tools
Includes a torque handle for precise pipe guide installation and a handling tool to safely insert or remove disposable dosing pipes.
Control ElectroniX 200
A compact, versatile controller that powers the PIPEJET and other dispensing technologies. Supports up to 12 channels and integrates easily via USB or serial communication
PIPEJET Dispenser & Pipe Guide
The core dispensing unit with an interchangeable pipe guide for flexible volume handling between 2 and 70 nL.
Pre-Installed Software (USB Stick)
Plug-and-play USB stick containing the Control Software for setup, protocol creation, and direct control of dispensing parameters.
Dispensing Pipes Set
A boxed set of 10 disposable pipes in different inner diameters (125, 200, and 500 µm), supporting a wide range of volumes and fluid types.
Accessories & Connections
All necessary accessories for immediate operation: liquid reservoirs, tubing, power supply, and interface cables for the Control ElectroniX unit.
Specifications
|
PIPEJET-125 |
PIPEJET-200 |
PIPEJET-500 |
| Height |
3 cm (1.18 in) |
3 cm (1.18 in) |
3 cm (1.18 in) |
| Width |
9 mm (0.35 in) |
9 mm (0.35 in) |
9 mm (0.35 in) |
| Depth |
6.75 cm (2.66 in) |
6.75 cm (2.66 in) |
6.75 cm (2.66 in) |
| Manual Calibration |
2-12 nL |
5-18 nL |
20-75 nL |
| Auto Calibration |
3-10 nL |
7-15 nL |
25-70 nL |
| Viscosity Range 2 |
0.5-10 mPa.s |
0.5-10 mPa.s |
0.5-150 mPa.s |
| Dispensing Frequency 3 |
up to 50 Hz |
up to 50 Hz |
up to 50 Hz |
Documents
Ordering Information
| Part No. |
Description |
| PJ-90011 |
PipeJet nanoDispenser - low volume |
| PJ-90012 |
PipeJet nanoDispenser - standard |
