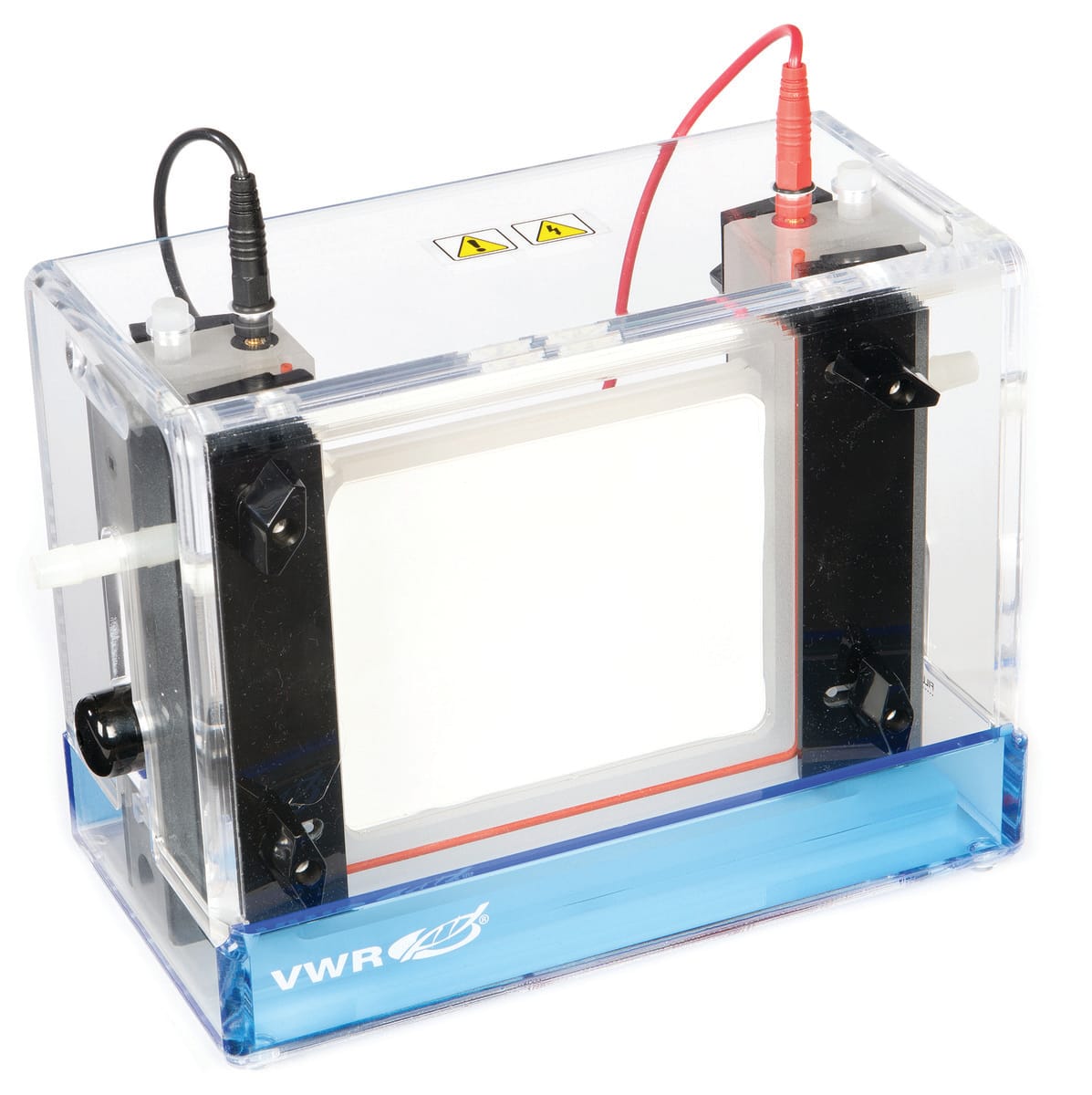

PerfectBlue Twin M, Dual-Gel System

For 16×14 cm gels, the Twin M is a versatile system for SDS PAGE applications, in addition to non denaturing electrophoresis of proteins, SSCPs and dinucleotide repeats. With the enlarged upper buffer chamber, water circulation system and heat-sinking aluminium ceramic plates, the Twin M provides high speed separation while maintaining straight, sharp bands.

*Based on an average gel and a tooth at 20 mm depth

Complete system, with or without casting base, includes internal cooling core, SuperSafe cover with attached leads, 4× glass plate pair sets, 4× combs (1,5 mm thick, 2×10 teeth and 2×15 teeth), 4× spacer sets (1,5 mm), 2× replacement gaskets, 1× blocking plate (for single gel runs) and 1× SpacerPlate.

Specifications

• Buffer volume, gel tank: ~650 ml
• Sample capacity: 10 – 48
• Unit W×H×D: 250×140×200 mm

Documents

• Manual VWR® PerfectBlue™ Vertical Dual Gel Systems Twin (Manual)
• Manual PerfectBlue™ Vertical Double Gel System (Manual)
• VWR® Products for Electrophoresis (Brochure)

Ordering Information
