OverExpress Chemically Competent Cells

E. coli BL21(DE3) strains, like E. cloni™ EXPRESS Competent Cells provide reliable expression of many genes cloned into T7 expression vectors (e.g.., pET or pSMART™-cDNA vectors). However, in some cases expression is minimal or not detectable because the recombinant protein, when expressed, is deleterious or lethal to these standard BL21 strains. Examples of such toxic proteins include many membrane proteins, some cytoplasmic proteins, and nucleases. Unfortunately, successful expression of one or more toxic proteins is often important to the experimental goal.

OverExpress Electrocompetent and Chemically Competent Cells are E. coli strains that are effective in expressing toxic proteins from all classes of organisms, including eubacteria, yeasts, plants, viruses, and mammals. The effectiveness of these new strains in expressing toxic proteins has been validated in more than 350 publications.

The OverExpress strains contain genetic mutations phenotypically selected for conferring tolerance to toxic proteins. The strain C41(DE3) was derived from BL21(DE3). This strain has at least one mutation, which prevents cell death associated with expression of many recombinant toxic proteins. The strain C43(DE3) was derived from C41(DE3) by selecting for resistance to a different toxic protein and can express a different set of toxic proteins to C41(DE3). Figure. 1 graphically illustrates the advantages of the OverExpress Competent Cells, compared to standard BL21(DE3) cells, in expressing toxic proteins.

Figure 1. Green Fluorescent Protein (top) or Red Fluorescent Protein (bottom) expressed from a T7 promoter construct that was transformed into C41, BL21, or C43 competent cells spread on IPTG plates to induce protein expression.

Table. 1 and Figure. 2 summarise transformation effectiveness, tolerance of expression-induced toxicity, and protein expression for T7 expression plasmids coding for a variety of recombinant proteins. These results demonstrate that the OverExpress C41(DE3) and C43(DE3) strains are clearly superior to the parental BL21(DE3) in transformation and expression of toxic proteins.

Table 1. Comparison of OverExpress C41(DE3) and C43(DE3) cells with the parental strain BL21(DE3) in transformation and expression of heterologous proteins.**

Strain
Transformation
Success Ratea

Expression-induced Toxicityb

Expressing Plasmidsc

BL21(DE3)

16/26 (62%)

25/26 (96%)

14/26 (54%)

C41(DE3)

28/28 (100%)

14/28 (50%)

24/28 (86%)

C43(DE3)

28/28 (100%)

1/28 (4%)

23/28 (81%)

Figure 2. Comparison of OverExpress C41(DE3) and C43(DE3) cells with the parental strain BL21(DE3) in transformation and expression of heterologous proteins.**

a Transformation success corresponds to the presence of colonies on LB+ampicillin agar following transformation with a plasmid.
b Expression toxicity corresponds to the absence of colonies on LB+ampicillin+IPTG agar following transformation with a plasmid.
c Expressing plasmids corresponds to observation of a heterologous protein in the total cell pellet on Coomassie-stained SDS-PAGE following growth of a colony in LB+ampicillin medium and induction with IPTG.
**L. Dumon-Seignovert, G. Cariot, and L. Vuillard (2004). Protein Expression and Purification 37, 203-206. Data used with permission.

As in standard BL21(DE3) strains, OverExpress C41(DE3), C41(DE3)pLysS, C43(DE3), and C43 (DE3)pLysS are lysogens of λDE3. These strains carry a chromosomal copy of the T7 RNA Polymerase gene under the control of the lacUV5 promoter. These strains are suitable for production of protein from target genes cloned into T7-driven expression vectors. OverExpress C41(DE3), C41(DE3) pLysS, C43(DE3), and C43(DE3) pLysS are also deficient in the lon and ompT proteases.

OverExpress C41(DE3)pLysS and C43(DE3)pLysS also carry a chloramphenicol-resistant plasmid that encodes T7 lysozyme, which is a natural inhibitor of T7 RNA polymerase. Cells containing pLysS produce a small amount of T7 lysozyme. These strains are used to suppress basal expression of T7 RNA polymerase prior to induction, thus stabilising recombinants encoding particularly toxic proteins.

Which OverExpress cell strain should I use?

It is difficult to predict which of the four OverExpress strains – C41(DE3), C43(DE3), C41(DE3)pLysS, or C43(DE3)pLysS – will work best in expressing a given protein. We recommend initially using the OverExpress ComboPack™ which contains 3 reactions each of the four OverExpress competent cell strains, to determine which one is best for your application. The OverExpress strains are available as electrocompetent or chemically competent cells.

Because there are no intrinsic antibiotic resistances (or plasmids) in either C41(DE3) or C43(DE3), the strains can be differentiated from each other and from BL21(DE3) by transformation with a strain verification vector, pAVD10. pAVD10 contains the uncF gene (encoding the beta-subunit of E. coli ATPase) under the control of the T7 promoter. This plasmid is lethal to BL21(DE3) and to induced C41(DE3), but it is tolerated by C43(DE3) regardless of induction. pAVD10 is provided with OverExpress Cells.

Read more

Key features

• Express genes cloned into any T7 vector with these BL21(DE3) derivatives
• Effective in expressing toxic membrane proteins
• Cited in over 350 research articles
• Recommended for membrane proteins with T7 vector

Specifications

OverExpress Genotypes
OverExpress C41(DE3): F – ompT hsdSB (rB- mB-) gal dcm (DE3)
OverExpress C41(DE3)pLysS: F – ompT hsdSB (rB- mB-) gal dcm (DE3) pLysS (CmR)
OverExpress C43(DE3): F – ompT hsdSB (rB- mB-) gal dcm (DE3)
OverExpress C43(DE3)pLysS: F – ompT hsdSB (rB- mB-) gal dcm (DE3) pLysS (CmR)

Table 1. OverExpress Transformation Efficiencies

Electrocompetent Cells
cfu/µg DNA

C41(DE3)
> 1 × 109

C43(DE3)
> 1 × 109

Chemically Competent Cells
C41(DE3)
> 1 × 106

C41(DE3)pLysS
> 1 × 106

C43(DE3)
> 1 × 106

C43(DE3)pLysS
> 1 × 106
Read more

Product Details

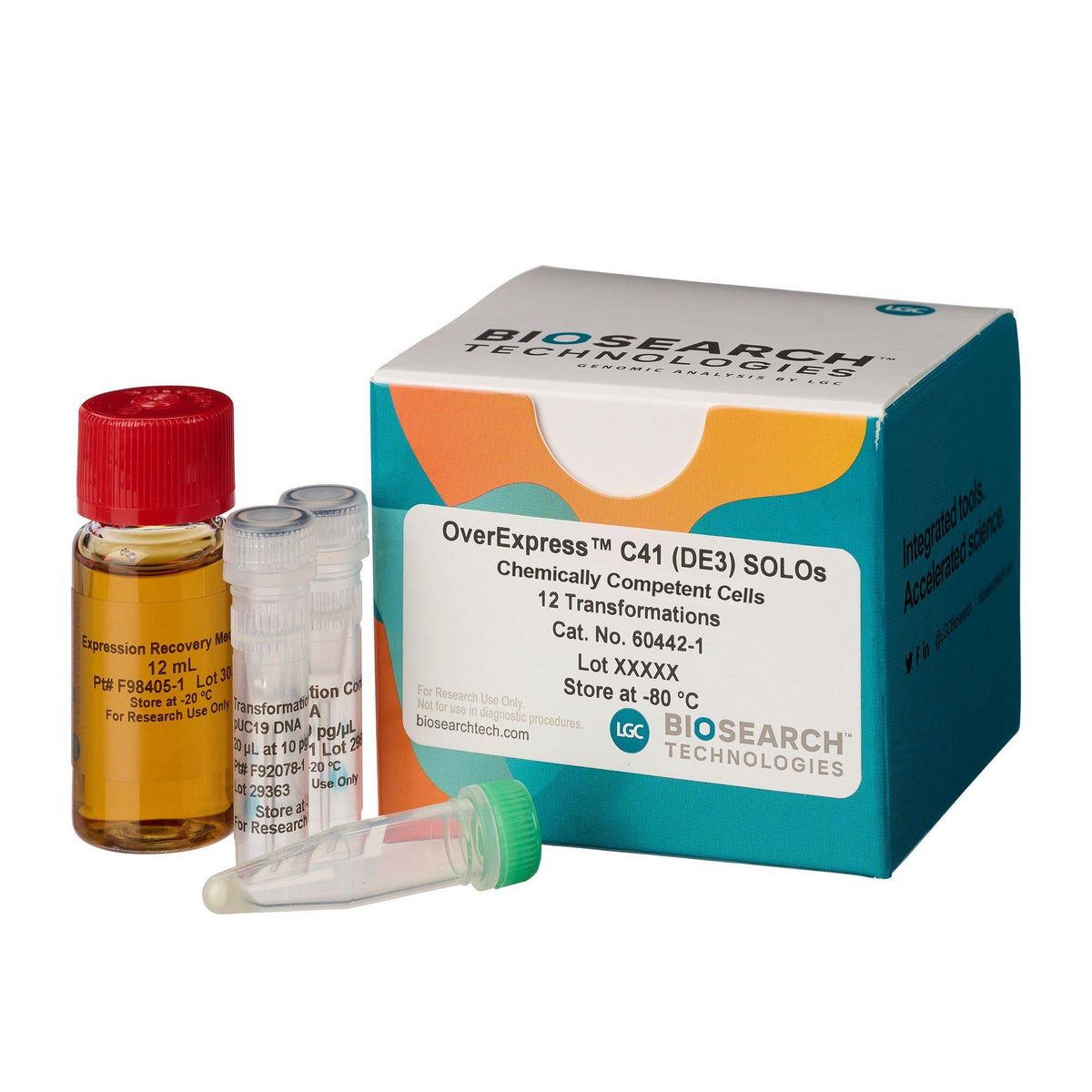

Each OverExpress kit contains Chemically Competent Cells in SOLO packaging (1 transformation per tube), Expression Recovery Medium (lactose minus), pUC19 Positive Control Plasmid, pAVD10 Verification Plasmid, and complete protocols. ComboPacks contain 3 reactions each of chemically competent C41(DE3), C43(DE3), C41(DE)pLysS, and C43(DE3)pLysS.

Documents

• 60442 OverExpress C41 DE3 Chemically Competent Cells
• 60444 OverExpress C41 DE3 pLysS Chemically Competent Cells
• 60446 OverExpress C43 DE3 Chemically Competent Cells
• 60448 OverExpress C43 DE3 pLysS Chemically Competent Cells
• 60452 OverExpress ChemCombo Pack
• OverExpress Chemicallycompetent Cells
• OverExpress Electrocompetent Cells
• F304 OverExpress US
