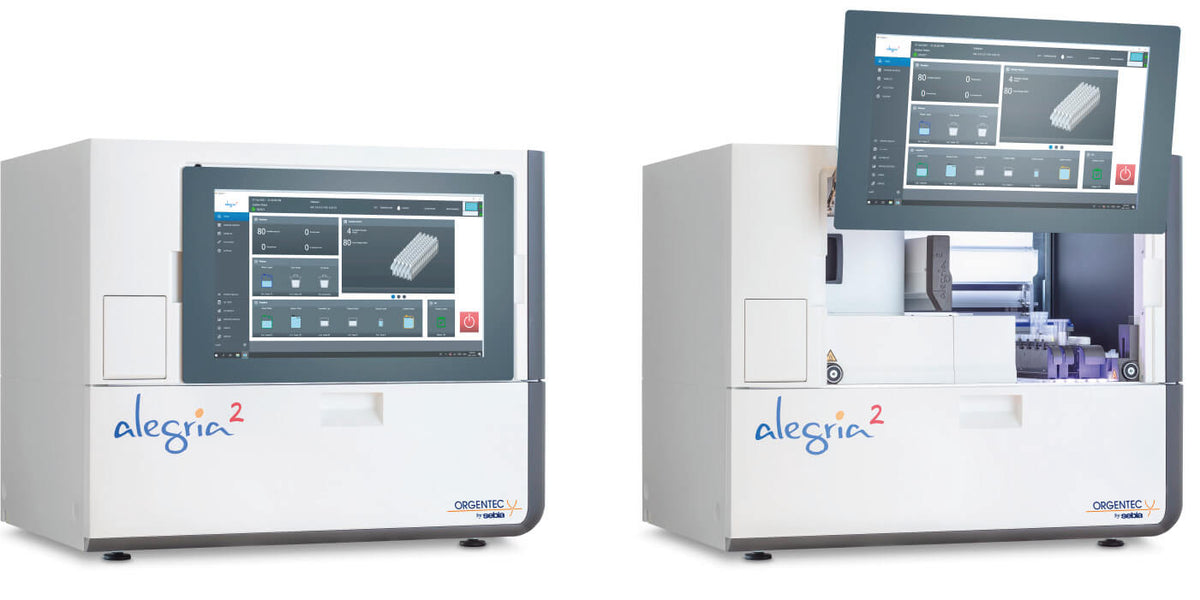

ORGENTEC offers the market’s broadest autoimmune panel, combined with specialty infectious disease, stool inflammation markers and bone metabolism assays. – The fully automated Alegria 2 instrument is the key to this wide range of test kits.
Alegria 2 provides a sample-to-result solution utilizing ORGENTEC’s unique and comprehensive Alegria Monotest portfolio with more than 100 parameters.
The flexibility to run any test from the large ORGENTEC portfolio at any time characterises the Alegria system. Tailor-made biomarker profiles can be analysed for individual patients based on the requirements of the requesting physician – for optimal patient care.
Key advantages:
- Fully automated analytical instrument with walk away design
- Random access of primary tubes, STAT samples and Alegria assays
- Continuous loading option with high throughput of up to 240 tests in ~8 hours
- One test strip for one patient sample, each result is validated by its own integrated calibrator and control

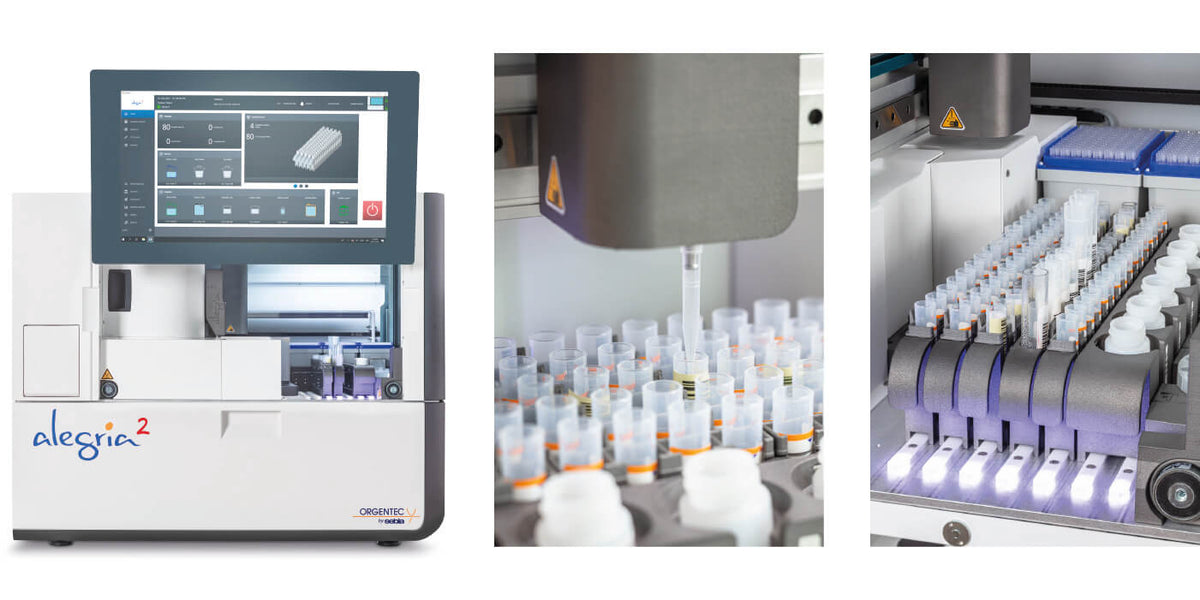

Convenience
Alegria 2 is an easy-to-use instrument that operates intuitively via the large integrated touchscreen. The screen angle can be adapted to individual user ergonomics. Innovative software and data management tool further boost user friendliness.
The instrument provides a true load & go solution with direct primary tube sampling from all common tubes. Monotest strips can be combined as desired and used for parallel analysis of serum, plasma, stool and csf samples. In the STAT mode emergency samples can be loaded anytime. An optional automated sample predilution process further increases efficiency and prevents errors.
Full automation with random access of primary tubes, emergency samples and assays, allows for increased walk-away time.
Alegria 2 is a compact and fully integrated benchtop system with a very small footprint, supporting economical use of the limited space in the laboratory.
Trusted monotest technology
Alegria 2 uses the same Monotest strip with SMC Technology (Sensotronic Memorized Calibration) that is used in the 1st generation instrument and has been proven with over 60 million Alegria tests performed in more than 80 countries.
Each Alegria Monotest strip includes the complete set of reagents that are needed to perform the analysis for one individual patient result.
Each test result is validated with its own integrated control for highest reliability and quality in the lab.
This concept results in utmost flexibility to run high and low volume assays simultaneously in a cost-effective manner. Even single tests are done at no extra costs, no waste of unused reagents!
Technical Data
| Power supply |
110-230Vac@60-50Hz |
| Power consumption |
800 VA |
| Fuses |
2 x 10.0A T (5 x 20 mm) |
| Dimensions |
850x600x700mm (W x D x H) |
| Weight |
< 90 Kg / <155 Lbs |
| Optics |
650 nm, LED |
| Ambient temperature |
Operation: 18°C to 32°C.; Storage & Transportation: -20°C to 50°C |
| Humidity |
10 to 75% without condensation |
| Operating Altitude |
from 0 to 3.000 m |
| Noise Level |
< 65db (Decibel) |
Ordering Information
| Cat. no. |
Product |
| ORG 320 |
Alegria 2 Automated Autoimmune & Serology Analyzer |
