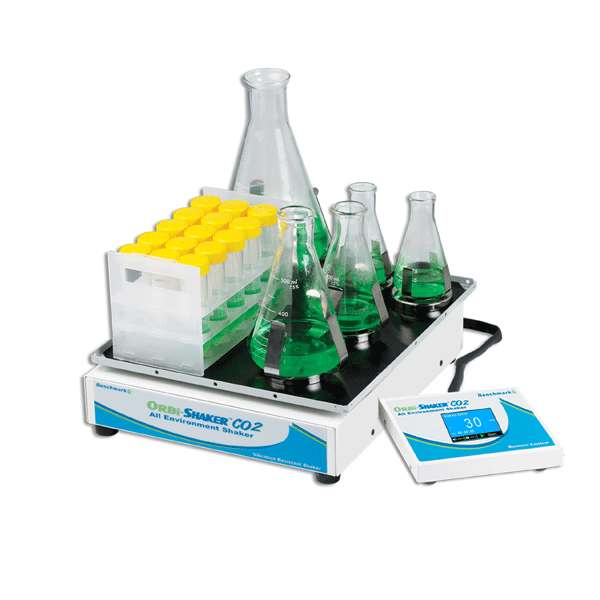

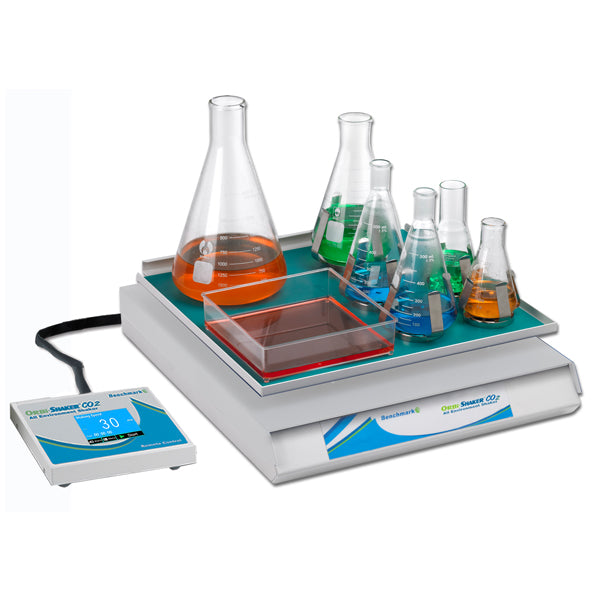

Orbi-Shaker™ CO2 Shakers with remote controller

The new Orbi-Shaker CO2 series is designed for shaking, mixing& aeration applications in extreme environments, including CO2 incubators. It can withstand temperatures from 0 to 60°C and humidity levels up to 100%. To avoid contamination, unintentional release of gas or deviations from protocol, all settings are adjusted via the included remote control module. This module can be stored outside of the chamber and connects to the shaker via a flat (1mm thickness) cable, that easily passes through a port or underneath an incubator door without compromising the seal. This allows for user adjustment of run time or mixing speed without opening the chamber door(s). The instrument is supplied with a non-slip rubber mat platform. In addition, convenient MAGic Clamp™ platforms (of multiple sizes) are also available for use with Erlenmeyer flasks and test tube racks. The unique magnetic attachment method (PATENTED) has been widely recognized as the easiest way to instantly change between flask clamps of different sizes.

• Designed to fit and maximize capacity in most CO2 incubators
• Remote control, adjust without disrupting the CO2 environment
• Horizontally circular 19mm orbit for aeration & mixing
• Instantly exchange flask clamps with MAGic Clamp™ accessories (PATENTED)

Specifications

Speed Range	30 to 300 rpm
Speed Increment	1 rpm
Orbit	19mm
Timer	1 min. to 99 hr or continuous
Ambient Operating Temp.	+0°C to +65°C
Warranty	2 Years
Platform Size	13 x 12 in. / 33 x 30 cm
Load Capacity	1 x 2L or 5 x 1L
Dimensions (in)	11.9 x 13.4 x 3.5
Dimensions (cm)	30 x 34 x 9
Weight	25lbs (11.5kg)
Cord Length	60.5in / 154 cm
Electrical	115 or 230V 50-60Hz; 50W
Platform Size	16 x 16.5 in. / 40 x 42.5 cm
Load Capacity	5 x 2L or 9 x 1L
Dimensions (in)	17 x 18 x 5
Dimensions (cm)	43 x 45.75 x 12.7
Weight	50lbs (23kg)
Cord Lenght	60.5 / 154 cm
Electrical	115 or 230V 50-60Hz; 50W
Speed	2800rpm
Motor Activation	Touch
Orbit	4mm
Dimensions (WxDxH)	3.7 x 3.9 x 2.6
Dimensions (cm)	9.4 x 9.9 x 6.6
Operating Temp.	+4 to 45°C
Weight	1lb (0.4kg)
Electrical	100-240V 50-60Hz; 50W
Warranty	2 Years

Documents

• Brochure (PDF)
