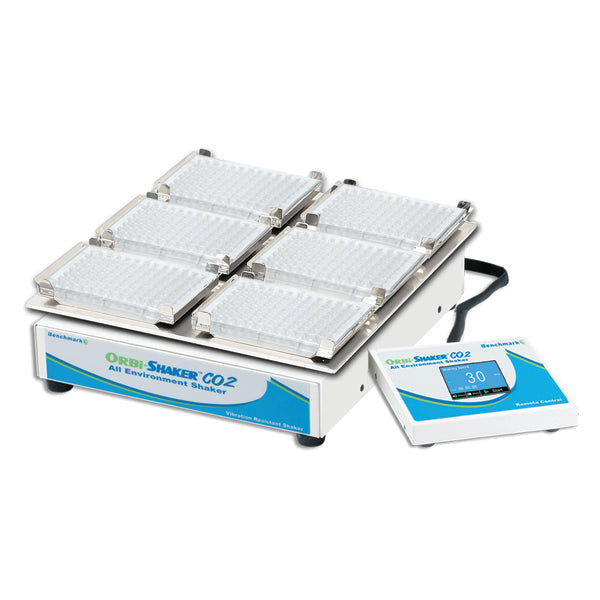

Orbi-Shaker™ CO2-MP with remote controller and microplate platform (13x12")

The new Orbi-Shaker CO2-MP is designed for thorough, mixing of microplates in extreme environments, including CO2 incubators. It can withstand temperatures from 0 to 65°C and humidity levels up to 100%. To avoid contamination, unintentional release of gas or deviations from protocol, both speed and time are set via the included remote control module. The remote controller can magnetically mount to the outer walls of the incubator and allows the user to set and adjust the shaker settings without opening the chamber door(s). A 6 position microplate platform is included and secures both standard or deep well plates.

• Designed for use in CO2 Incubators and other extreme environments
• Remote control, adjust settings without exposing chamber
• Compact, 3mm orbit for thorough mixing of well plates
• Includes 6 position microplate platform

• Specifications

  Speed Range	200 to 1200 rpm
  Speed Increment	1 rpm
  Orbit	3mm
  Timer	1 min. to 99 hr or continuous
  Ambient Operating Temp.	+0°C to +65°C
  Platform Size	13 x 12 in. / 33 x 30 cm
  Load Capacity	6 x microplates
  Dimensions (in)	11.9 x 13.4 x 3.5
  Dimensions (cm)	30 x 34 x 9
  Weight	25lbs (11.5kg)
  Cord Length	60.5in / 154 cm
  Electrical	115 or 230V 50-60Hz; 600W
  Warranty	2 Years
  Speed	5500 rpm / 2000 xg
  Capacity	4 x 5 ml and 4 x 1.5/2.0 ml
  Dimensions	5.75 x 8 x 4.25 in.<br> (14.6 x 20.3 x 10.8 cm)
  Weight	2.2 lbs / 1 kg
  Electrical	Universal Voltage 100-240V; 50-60 Hz; 300W
  Warranty	2 Years

  Documents

  • Brochure (PDF)
