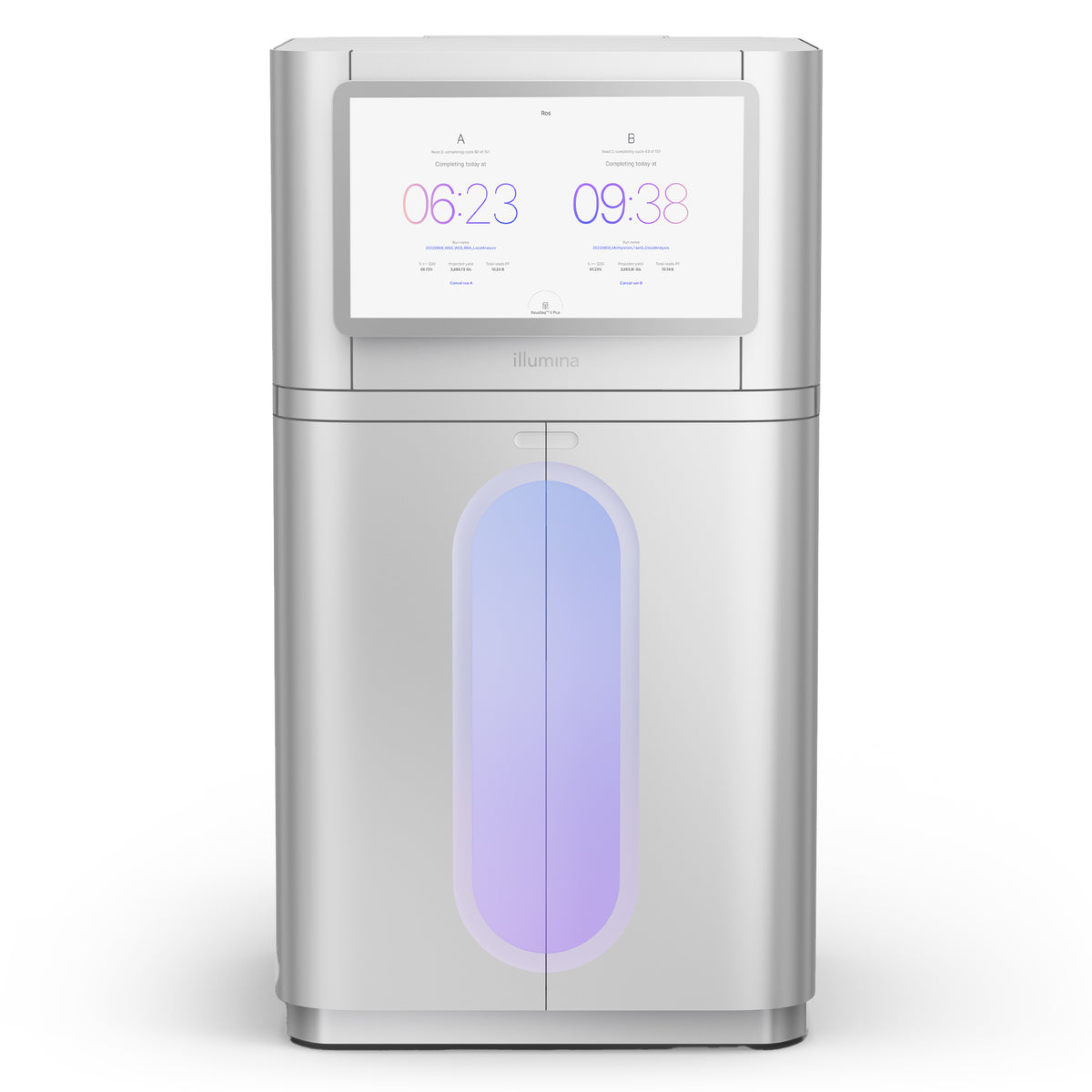

NovaSeq X Sequencing System

Name: NovaSeq X Sequencing System
Brand: Illumina
SKU: 20084803
Availability: InStock

Vendor: Illumina

SKU: 20084803

0.00 NIS

Quote Required

In stock

Includes one NovaSeq X Sequencing System with embedded touch screen monitor and on-instrument computer, control software, hardware, integrated DRAGEN secondary analysis pipelines and lossless data compression, installation and training, and 12 months warranty (including parts and labor) to support automated generation of DNA clonal clusters by bridge amplification, sequencing, and primary and secondary analysis. Qualification services, instrument service plans, and reagent kits sold separately.

The NovaSeq X Series delivers extraordinary throughput and accuracy to perform data-intensive applications at production scale.

Sequence more sustainably than ever

Propel your research forward to impact the world, not the environment. The NovaSeq X and NovaSeq X Plus Systems were purpose-designed to be our most sustainable sequencing systems yet.

Save time and money with a 90% reduction in packaging weight and waste
Maximize storage space with compact cartridges and packaging
Save disposal costs with no dry ice or ice packs

A new standard in operational simplicity

More results, fewer steps, less effort. The NovaSeq X Series workflow includes flexible run setup, automated ultra-high-throughput sequencing with onboard cluster generation, accelerated data analysis with DRAGEN platform onboard, and more.

Unimaginable experiments, made unbelievably cost-efficient

The NovaSeq X Series helps moonshot projects become a reality—making affordable what was previously out of reach. Increase statistical power with broader study designs and larger sample cohorts. Maximize read numbers and increase sequencing depth for a higher resolution view that can detect low-frequency signals and variants.

The NovaSeq X Plus System revolutionizes human whole-genome sequencing, with the ability to sequence more than 128 genomes per run. These production-scale sequencing systems can also perform a broad range of data-intensive applications, from single-cell analysis to exome and circulating tumor DNA sequencing, that will unlock the next wave of omics discovery.

Specifications

NovaSeq X Series

Flow cell type	1.5B	5B^c	10B	25B
2 × 50 bp	~165–238 Gb	~500–650 Gb	~1–1.3 Tb	~2.6–3.5 Tb
2 × 100 bp	~330–476 Gb	~1–1.3 Tb	~2–2.7 Tb	~5.3–7 Tb
2 × 150 bp	~500–716 Gb	~1.5–2 Tb	~3–4 Tb	~8–10.5 Tb
2 × 300 bp^c	~1–1.4 Tb	-	-	-

Flow cell type	1.5B	5B	10B	25B
Single-end reads	~1.6–2.4 billion	~5–6.5 billion	~10–13 billion	26–35 billion
Paired-end reads	~3.2–4.8 billion	~10–13 billion	~20–26 billion	~52–70 billion

Quality Scores
Flow Cell Type	1.5B	5B^c	10B	25B
2 × 50 bp	≥ 90% of bases higher than Q30
2 × 100 bp	≥ 85% of bases higher than Q30
2 × 150 bp	≥ 85% of bases higher than Q30
2 × 300 bp^c	≥ 75% of bases higher than Q30	-	-	-
Run Time
2 × 50 bp	~17 hr	~14 hr	~18 hr	~25 hr
2 × 100 bp	~20 hr	~18 hr	~22 hr	~38 hr
2 × 150 bp	~23 hr	~22 hr	~25 hr	~48 hr
2 × 300 bp^c	~44 hr	-	-	-

Flow cell type	1.5B	5B	10B	25B
Human genomes per flow cell	~4	~12	~24	~64
Exomes per flow cell	~27	~84	~167	~436
Transcriptomes per flow cell	~30	~100	~200	~520
