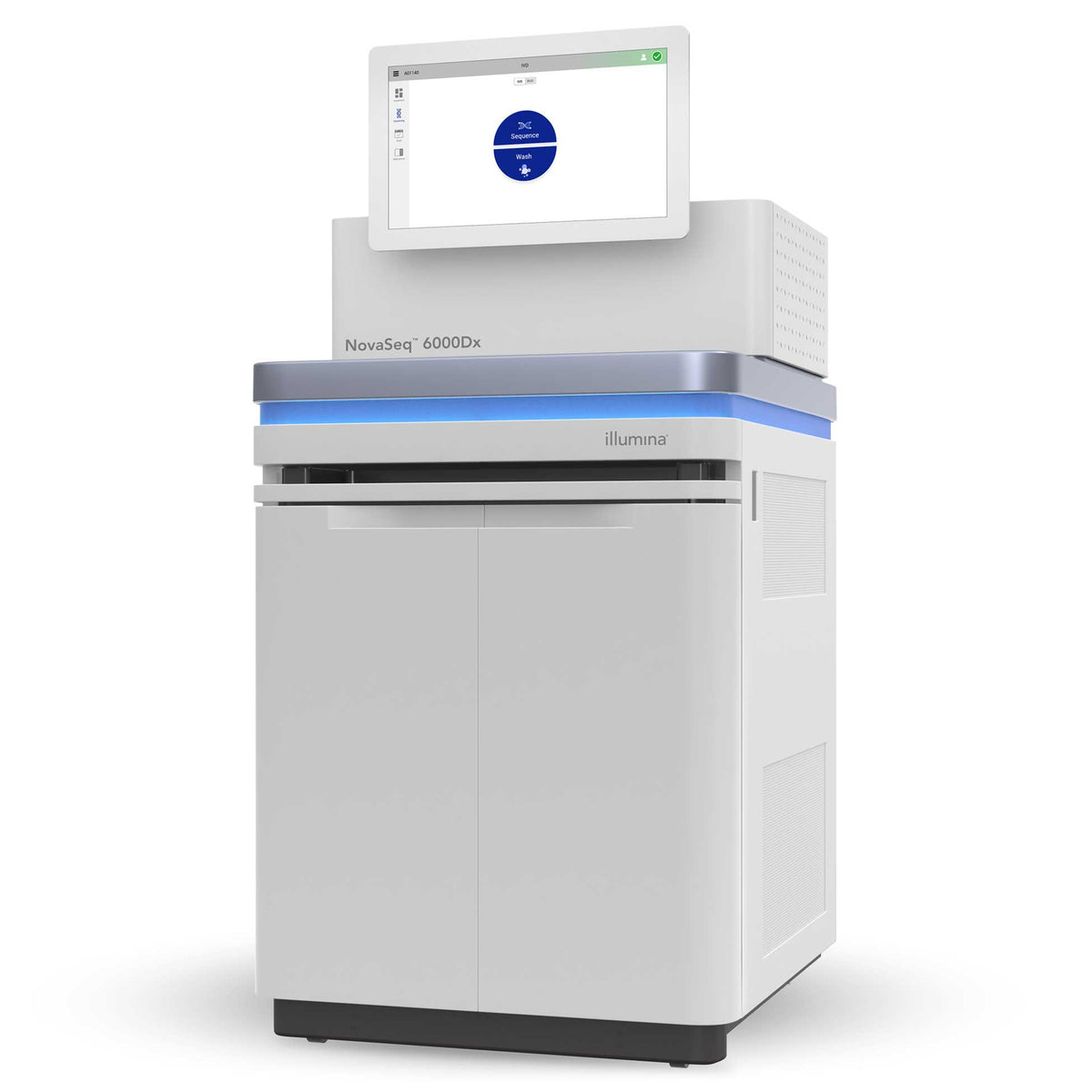

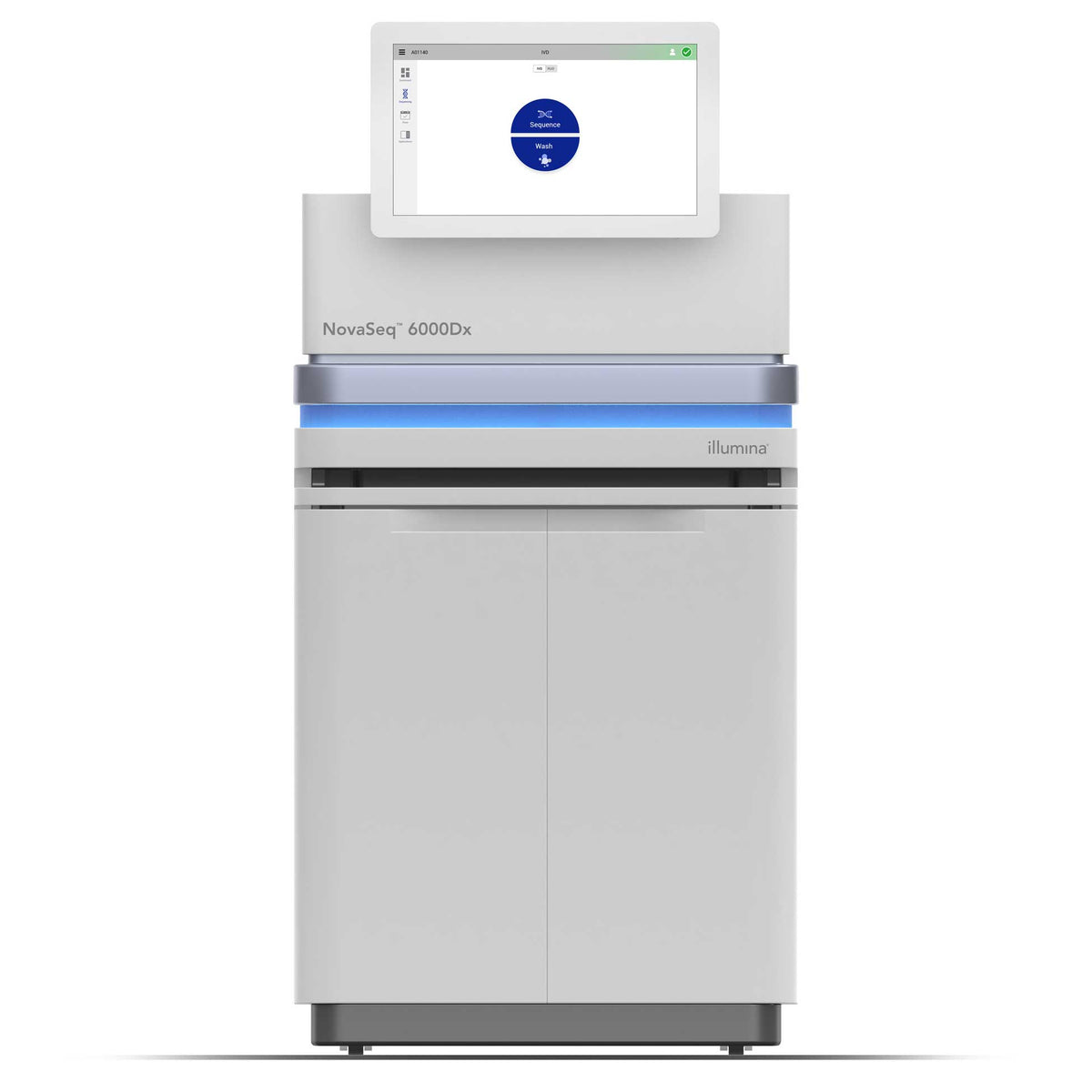

NovaSeq 6000Dx Sequencer Instrument

The NovaSeq™ 6000Dx instrument is a high throughput FDA regulated and CE-in vitro diagnostic (IVD) marked, enabling clinical laboratories to develop and perform a wide range of applications. This system includes installation and 12 month warranty (including parts and labor).

The NovaSeq 6000Dx is an IVD-compliant, high-throughput sequencing instrument for the clinical lab, enabling in vitro diagnostics and clinical research on a single instrument.

Simplified sequencing workflow

Flexible for a variety of applications

Specifications

NovaSeq 6000Dx Instrument Performance Parameters

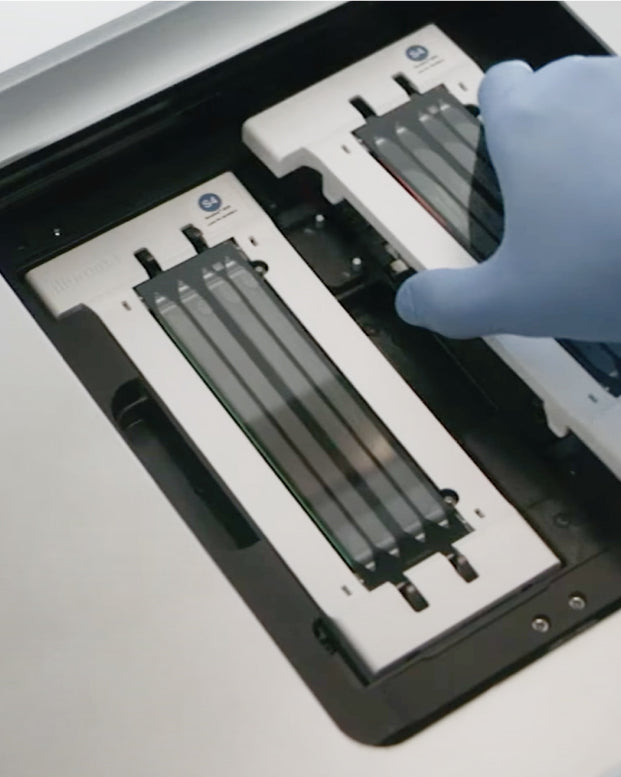

Flow Cell Type	Read Length	Output	Reads Per Run	Run Time	Data Quality
S2	2 x 150 bp	≥ 1 Tb	≥ 6.67 B	≤ 40 hours	≥ 85% Q30
S4	2 x 150 bp	≥ 3 Tb	≥ 20 B	≤ 45 hours	≥ 85% Q30

NovaSeq 6000Dx Instrument

	Germline variant calling	Somatic variant calling
SNV Positive Percent Agreement (%)	≥ 99.8%	≥ 99.8%
Insertion PPA (%)	≥ 97.9%	100%
Deletion PPA (%)	≥ 96.9%	100%
Negative Percent Agreement (%)	> 99.9%	> 99.9%
Overall Percent Agreement (%)	> 99.9%	> 99.9%
